1 - Escutcheon & Door Assembly   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	31-30457	Pm Sheet Mini Manual	Call for Availability
	31-30561	Pm Instruction Install	Call for Availability
	49-5948	Pm Manual Use & Care	Call for Availability
708	WD02X10115	Scr 6-19 Pl Flp 3/4 S	$10.50 Special Order
711	WD34X10923	Panel Asm Outer	$663.50 Special Order
715	WD02X10085	Scr 8-18 B 1hw 1/2 S N	$10.50 Special Order
718	NLA ITEM	Conduit Exhaust Asm	Call for Availability

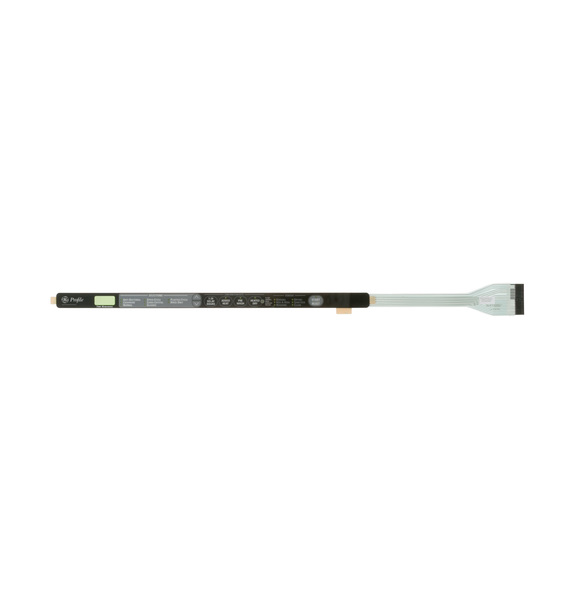

719	WD34X10908	Keypad	$271.00 Special Order
720	WD01X10236	Hanger Door	$1.80 Special Order
721	WD26X10056	Blower Dishwasher (Replaces: WD26X10019)	$167.20 Special Order
722	WD12X10351	Inlet Transition Piece	$38.20 Special Order
759	WD27X10177	Toekick Asm	$429.10 Special Order
795	WR01X10380	Scr 8-18 Ab Tsq 5/8 Ss	$10.50 Special Order
799	WD02X10123	Scr 10-32 Gxtt Flp.595 S	$10.50 Special Order
800	WD14X10046	Arm Hinge Lh Asm (Replaces: WD14X10016)	$136.90 Special Order
	WD14X10047	Arm Hinge Rh Asm (Replaces: WD14X10021)	$136.90 Special Order
803	WD13X10031	Latch	$89.40 Special Order
807	WD31X10067	Door Inner Asm	Call for Availability
809	NLA ITEM	Scr 10-32gx Flt25 .615 S   (Replaces: WD02X10084)	Call for Availability
811	WD12X10163	Module Rinse And Cap Asm	$64.10  In-Stock Retail: $77.61
812	WD12X10122	Cap Rinse Asm	$12.00 Special Order
813	WD01X10207	Bracket Rinse Module	$10.50 Special Order
814	WD02X10104	Scr 8-10 Pl Trp 1/2 S	$10.50 Special Order
815	WD12X10127	Cover Vent	$16.90 Special Order
818	NLA ITEM	Bearing Hinge Arm	Call for Availability
822	WD02X10106	Scr 8-18 Ab Tr 7/8s	$10.50  In-Stock Retail: $10.22
823	WD2X322	Scr 8-18x7/8 Bt	$10.50 Special Order
864	WD12X10067	Flapper Vent	$10.50 Special Order
903	WD21X10255	Module 3 Digit Display (Replaces: WD21X10188)	$47.30 Special Order
905	WD21X10187	Module Control Asm	$298.40  In-Stock Retail: $291.08
918	WD21X10172	Vent Driver Asm	$59.40 Special Order
943	WZ05X0219	Screw	Call for Availability
9999	NLA ITEM	Trim Panel Accessary Ki	Call for Availability
