GE PDW9280L00SS Parts List

Popular Searches: (Click to search)    and  arm  asm  cable  cap  drain  flood  gasket  hinge  inlet  link  lower  module  pump  rack  rinse  roller  stud  switch  tub


Select a Diagram

1 - Escutcheon & Door Assembly

2 - Body Parts

3 - Upper Rack Assembly

4 - Lower Rack Assembly

5 - Motor-pump Mechanism

Select Diagram ... 1 - Escutcheon & Door Assembly 2 - Body Parts 3 - Upper Rack Assembly 4 - Lower Rack Assembly 5 - Motor-pump Mechanism

1 - Escutcheon & Door Assembly   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	49-5991	Pm Use & Care Manual	Call for Availability
	31-30473	Mini Manual	Call for Availability
	31-30588	Pm Instruction Install	Call for Availability
684	WD02X10111	Scr 8-18 B Por 1/2 Ss	$10.50 Special Order
704	WD13X10065	Handle Asm Door Ss	$139.00 Special Order
706	WD12X10283	Bracket Door Handle	$17.80 Special Order
709	WD01X10238	Scr 10-24 Unc Rnp 1 Z Sn	Call for Availability
711	WD34X11167	Panel Asm Outer Ss	$851.20 Special Order
715	WD02X10085	Scr 8-18 B 1hw 1/2 S N	$10.50 Special Order
718	WD12X10190	Conduit Exhaust Asm	Call for Availability

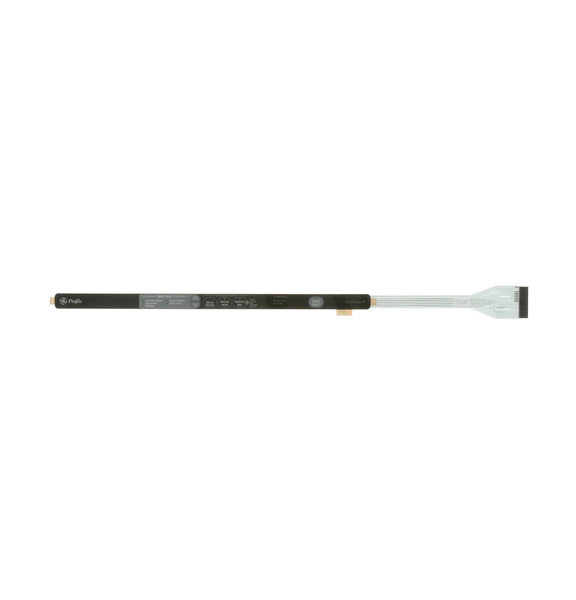

719	WD34X11166	Keypad	$159.40 Special Order
720	WD01X10236	Hanger Door	$1.80 Special Order
721	WD26X10056	Blower Dishwasher (Replaces: WD26X10019)	$167.20 Special Order
722	WD12X10351	Inlet Transition Piece	$38.20 Special Order
759	WD27X10177	Toekick Asm Bk	$429.10 Special Order
799	WD02X10123	Scr 10-32 Gxtt Flp.595 S	$10.50 Special Order
800	WD14X10046	Arm Hinge Lh Asm (Replaces: WD14X10016)	$136.90 Special Order
	WD14X10047	Arm Hinge Rh Asm (Replaces: WD14X10021)	$136.90 Special Order
803	WD13X10031	Latch	$89.40 Special Order
807	WD31X10067	Door Inner Asm	Call for Availability
809	WD02X10150	Scr 10-32gx Flt25 .615 S (Replaces: WD02X10084)	Call for Availability
811	WD12X10163	Module Rinse And Cap Asm	$67.10  In-Stock Retail: $77.61
812	WD12X10122	Cap Rinse Asm	$12.00 Special Order
813	WD01X10207	Bracket Detergent Disp	$10.50 Special Order
814	WD02X10104	Scr 8-10 Pl Trp 1/2 S	$10.50 Special Order
815	WD12X10127	Cover Vent	$16.90 Special Order
818	WD12X10025	Bearing Hinge Arm	Call for Availability
822	WD02X10106	Scr 8-18 Ab Tr 7/8s	$10.50  In-Stock Retail: $10.22
864	WD12X10067	Flapper Vent	$10.50 Special Order
905	WD21X10370	Module Control Asm (Replaces: WD21X10229)	$225.60 Special Order
918	WD21X10172	Vent Driver Asm	$59.40 Special Order
943	WZ05X0219	Screw	Call for Availability
