GE PCT23MGPCWW Parts List

Popular Searches: (Click to search)    asm  canister  cond  cover  damper  defrost  domestic  door  electronic  evap  fan  filter  inlet  motor  recess  sensor  solenoid  temp  temperature  thermostat


Select a Diagram

1 - Freezer Door

2 - Fresh Food Door

3 - Freezer Section

4 - Evaporator Instructions

5 - Freezer Shelves

6 - Ice Maker & Dispenser

7 - Fresh Food Section

8 - Fresh Food Shelves

9 - Sealed System & Mother Board

Select Diagram ... 1 - Freezer Door 2 - Fresh Food Door 3 - Freezer Section 4 - Evaporator Instructions 5 - Freezer Shelves 6 - Ice Maker & Dispenser 7 - Fresh Food Section 8 - Fresh Food Shelves 9 - Sealed System & Mother Board

1 - Freezer Door   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	49-60349	Pm Guide Owner	Call for Availability
	31-51607	Pm Minimanual Wiring	Call for Availability
7	NLA ITEM	Handle Sxs Asm Wh	Call for Availability
11	NLA ITEM	Recess Trim Clad Mdel Wh	Call for Availability
12	WR02X13424	Stop Door Wh	$15.70 Special Order
14	WR24X10156	Gasket Door Fz Wh	$104.30  In-Stock Retail: $101.72
15	WR02X10638	Cam Closure Fz Wh	$14.50 Special Order
23	WR71X10499	Module Fz Upper	Call for Availability
25	NLA ITEM	Module Fz Seat	Call for Availability
26	WR71X10495	Guide Ice	$48.60 Special Order
27	WR01X10387	Scr 8-18 Ab Ovp 7/8 Ss	$10.50 Special Order
31	WR17X11654	Grille Recess Wh	$15.00 Special Order
36	WR62X10055	Solenoid Asm (Replaces: WR62X10020)	$49.80  In-Stock Retail: $74.12
45	WR2X8818	Retainer Recess Door	$10.50 Special Order
56	WR01X37886	Bulb Recs 12v (Replaces: WR02X12208 WR02X10675)	$15.30  In-Stock Retail: $19.41
58	WR49X10227	Housing Shield Disp	$64.60 Special Order
61	WR2X9561	Lamp Socket	$17.50 Special Order
62	WR17X11653	Door Recess Asm	$10.60  In-Stock Retail: $15.44
63	WR02X10585	Spring Recess Door	$6.50  In-Stock Retail: $10.98
67	WR17X10706	Crank Door Recess	$10.50  In-Stock Retail: $10.22
69	NLA ITEM	Funnel Ice Disp   (Replaces: WR17X11883)	Call for Availability
70	WR49X10075	Extension Funnel Ice Wh (Replaces: WR17X11265)	Call for Availability
72	WR23X10783	Switch (Replaces: WR23X10224)	$58.50  In-Stock Retail: $57.04
74	WR49X10233	Spring Funnel (Replaces: WR02X10584)	$12.70  In-Stock Retail: $12.39
80	WR02X11330	Union Connector	$13.10  In-Stock Retail: $12.71

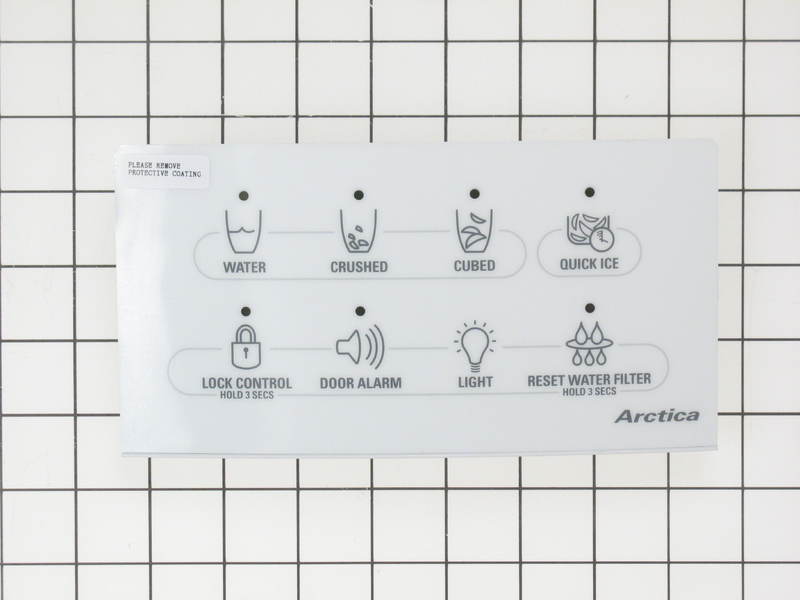

93	WR55X10305	Interface Disp Asm Wh	Call for Availability
121	NLA ITEM	Trim Handle Lower Wh	Call for Availability
122	WR71X10256	Module Support Fz	$73.30 Special Order
123	WR71X10501	Module Shelf Fz Fixed	$84.00 Special Order
125	WR21X10110	Basket Wire Tiltout Fz	$40.90 Special Order
152	WR01X10038	Scr 8-18 Ab Fltr 5/8 S	Call for Availability
154	WR01X10213	Scr 8-18 Ab Rnt20 5/8 S	Call for Availability
155	WR02X10643	Bracket Handle Lock	$15.70 Special Order
158	WR02X10646	Tail Mtng Hndl Retnr	$10.50  In-Stock Retail: $10.22
900	WR78X11153	Door Foam Asm Fz Wh	$466.20 Special Order
903	WR01X10208	Thimble Door Btm Fz Wh	$10.50 Special Order
904	WR01X10611	Screw Door Stop T20	$10.50  In-Stock Retail: $10.22
911	WR01X10955	Thimble Door Top Wh   (Replaces: WR01X10207)	$10.50 Special Order
