GE JVM1490WD003 Parts List

Popular Searches: (Click to search) 10w 12v 20w assy canopy cavity choke cover halogen lamp latch mica oven power spring thermostat transformer

Select a Diagram

1 - Control Panel, Door, Grille & Case

2 - Unit Parts & Base

Double click the image below to zoom-in

Hover over In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability
283	WB36X10163	Lamp,halogen,10w (Replaces: WB36X10177)	$32.60 In-Stock Retail: $31.71
993	WB56X35363	Mounting Plate Assy (Replaces: WB56X10204)	$14.80 In-Stock Retail: $14.42
1200	WB56X10207	Outer Case Wh	$134.60 Special Order
1203	NLA ITEM	Latch Bracket	Call for Availability
1205	WB06X10308	Cover, Power Cord	Call for Availability
1206	WB18X10150	Power Cord Assy	$52.70 Special Order
1207	WB36X10179	Lamp Reflector Assy	$39.40 Special Order
1208	WB06X10313	Mount,vent Motor Cover	$12.00 Special Order
1218	NLA ITEM	Grille Clips	Call for Availability

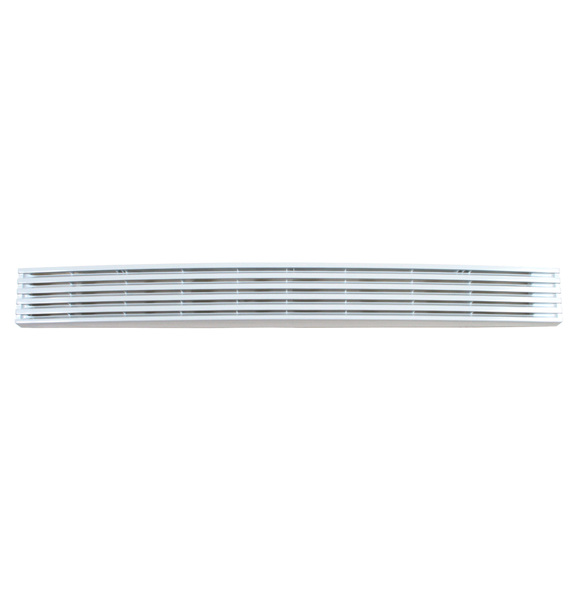

1225	WB07X10431	Vent Grille Assy	Call for Availability
1445	WB24X25397	Switch, Micro (Replaces: WB24X817)	$26.80 In-Stock Retail: $26.08
1446	WB24X10047	Switch, Micro	$34.50 In-Stock Retail: $33.62
1614	WB07X10432	Control Panel Assy	$95.70 Special Order
1618	WB03X10126	Knob	$7.10 Special Order
1648	WB18X10149	Lead Assy	$114.20 Special Order
1655	WB27X10466	Pcb Control Assy	$330.70 Special Order
1800	WB55X10429	Door - Sub Assy	$314.70 Special Order
1801	WB15X10070	Handle, Door Wh	Call for Availability
1804	WB55X10428	Choke Cover	$78.00 Special Order
1810	WB10X10021	Latch/spring Assy	$18.70 Special Order
2944	WB01X10124	Nut Assy	$14.50 Special Order
9999	49-40144	Use & Care Manual	Call for Availability
	49-40157	Installation Instruction	Call for Availability
	WB64X10003	Installation Kit Ass'y	Call for Availability
	31-20958	Mini Manual	Call for Availability
	49-40160	Cookbook	Call for Availability
