GE JT950BA2BB Parts List

Popular Searches: (Click to search)    3400w  asm  bake  broil  cabinet  cntl  element  erc3  fan  hinge  holder  lamp  lock  motor  oven  ovn  sensor  support  top  window


Select a Diagram

1 - Control Panel

2 - Upper Body

3 - Center Spacer

4 - Lower Body

5 - Door

6 - Door Lock

7 - Fan

Select Diagram ... 1 - Control Panel 2 - Upper Body 3 - Center Spacer 4 - Lower Body 5 - Door 6 - Door Lock 7 - Fan

4 - Lower Body   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
44	WB2K5225	Grommet Strip (.020)	$6.60 Special Order
133	WB01T10022	Door Bumper	$10.50 Special Order
	WB1K5115	Felt Pad	$2.50 Special Order
201	WB63T10033	Wrapper Ovn Cav Asm	$91.30 Special Order
	WB63T10057	Wrapper Ovn Cav Asm	$96.20 Special Order
202	WB63T10058	Frame Frt	Call for Availability
210	WB63T10034	Bottom False Asm	$366.10 Special Order
211	NLA ITEM	Side Insulation Retainer	Call for Availability
212	WB02T10143	Bttm Insulation Retainer	$65.50 Special Order
218	WB34K5192	Cover Wire Lwr Rr	Call for Availability
219	WB2K5307	Back Insulation Retainer	$42.50 Special Order
220	WB34K5195	Shield Btm Trim	$25.80 Special Order
223	WB35T10090	Insulation-oven Support	$109.30 Special Order
230	WB35K5118	Insulation Top/sds (inr)	Call for Availability
231	WB35K5119	Insulation Top/sds (out)	$42.20 Special Order
232	WB35T10090	Insulation-back Bottom	$109.30 Special Order
241	NLA ITEM	Oven Rack-convx	Call for Availability

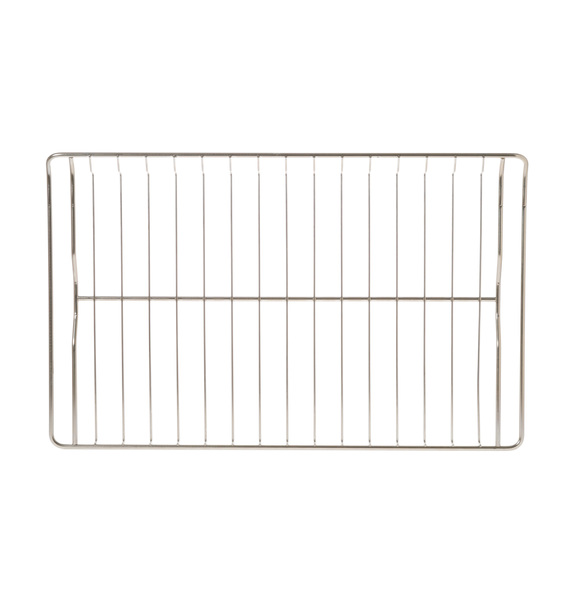

	WB48T10009	Rack Ovn	$79.30 Special Order
	WB48T10095	Oven Rack (Replaces: WB48K5019)	$61.90  In-Stock Retail: $78.63
251	WB44T10006	Element Bake (3400w)	$138.30 Special Order
252	WB44K5017	Broil Element	$185.80 Special Order
253	WB23X5340	Sensor	$173.90 Special Order
256	WB08T10002	Oven Lamp Holder	$29.20  In-Stock Retail: $29.14
257	BUY LOCAL	Oven Lamp	Call for Availability
259	WB25T10002	Oven Bulb Lens	$10.50 Special Order
261	WB24T10147	Oven Light Door Switch (Replaces: WB24K5031)	Call for Availability
262	WB7K5368	Vertical Side Trim-blk	$80.00 Special Order
266	WB02K10048	Base Rail	$21.00 Special Order
268	WB07T10401	Trim Btm (blk) (Replaces: WB07T10037)	Call for Availability
273	WB2X8309	Pr0be Cover	$17.30 Special Order
	WB2K5365	Cover	$20.80 Special Order
279	WB38T10014	Box Vnt Asm	Call for Availability
281	WB14T10005	Hinge Asm Rt	Call for Availability
	WB14T10006	Hinge Asm Lt	$110.60 Special Order
282	WB28K5010	Vent Tube	$30.80 Special Order
291	WB2X9152	Cover	$25.70 Special Order
294	WB2X9719	Broil Element Support	$12.70  In-Stock Retail: $12.37
534	WB26T10003	Support Ovn Cavity	$2.90 Special Order
692	WZ04X0416	Screw	Call for Availability
752	WB1K5200	Screw	$10.50 Special Order
760	WB1X536	Screw	$12.00  In-Stock Retail: $11.66
796	WB1K5116	Screw	$10.50 Special Order
809	WB1X1137	Screw	$10.50 Special Order
810	WB1X1130	Screw	$10.50 Special Order
875	WH2X930	Screw 8-18 Ab Hxw 3/8	$10.50 Special Order
887	WB1K5173	Trim Screw-blk	$10.50 Special Order
937	NLA ITEM	Washer	Call for Availability
945	WB1K5046	Lockwasher	$10.00 Special Order
