GE JSP68GT1BB Parts List

Search Model by Keyword(s):

Popular Searches: (Click to search)    asm  bake  broil  cap  door  element  end  handle  hinge  oven  screw  sensor  support


Select a Diagram


3 - Component Group   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item # Part # Description Price / Availability Add to Cart

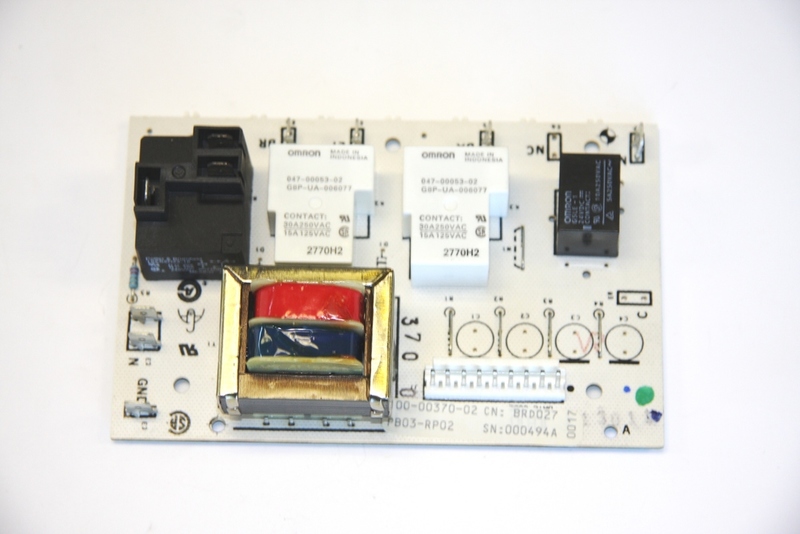

31 WB27X611 WB27X611 Relay Board $320.80
Special Order
43 WB2X9657 Pcb Spacer $11.40
Special Order
137 WB14M3 Door Strike Call for Availability
138 WB2M53 Door Catch $29.20
Special Order
139 WB2M52 Catch Bracket $18.10
Special Order
201 WB63K5109 Oven Body Call for Availability
202 WB63M49 Front Frame Call for Availability
203 WB63K5176 Main Back Call for Availability
205 WB55M7 Broiler Door Lining $50.90
Special Order
208 WB34M31 Heat Deflector Call for Availability
209 WB63M51 Plenum Call for Availability
211 WB2M50 Side Ins Retainer $33.40
Special Order
212 WB2M68 Insulation Bttm Retainer $64.50
Special Order
216 WB34M28 Rear Wire Cover Upper Call for Availability
218 WB34M23 Wire Cover Rear Call for Availability
219 WB34M30 Relay Wire Cover Call for Availability
WB24K5109 Wire End Cover_lt Call for Availability
WB34K5108 Wire End Cover_rt Call for Availability
221 WB63K5165 Vent Box Asm $144.00
Special Order
222 WB56M11 Lower Front Panel $31.80
Special Order
223 WB6M2 Grease Jar Call for Availability
226 WB15M8 Lower Front Panel Handle $53.20
Special Order
230 WB35K5046 Insulation Upr Rear Call for Availability
231 WB35K5029 Insulation-ov Btm/back $78.50
Special Order
232 WB2X9631 Insulation-oven Back Call for Availability
233 WB2X9718 Insulation Top & Sides Call for Availability
239 WB3M23 Plug Button Call for Availability
240 WB34M29 Wire Shield $11.10
Special Order
241 WB48M4 WB48M4 Oven Rack
(Replaces: WB48X208) 		Call for Availability
244 WB34K5215 Baffle Vent Call for Availability
246 WB48X10056 WB48X10056 Broiler Pan $26.10
 In-Stock
Retail: $31.46
247 WB48X10056 WB48X10056 Broiler Pad Grid $26.10
 In-Stock
Retail: $31.46
251 WB44K5012 WB44K5012 Bake Element $51.30
 In-Stock
Retail: $67.53
252 WB44X232 WB44X232 Broiler Element 240vt $87.30
 In-Stock
Retail: $85.13
253 WB21X5301 WB21X5301 Oven Sensor
(Replaces: WB20X106) 		$21.60
 In-Stock
Retail: $206.64
255 WB17X215 Junction Block Call for Availability
256 WB8K5042 WB8K5042 Oven Lamp Holder Call for Availability
257 BUY LOCAL Oven Lamp Call for Availability
259 WB25M10 WB25M10 Oven Lamp Lens Call for Availability
262 WB7K5332 Vertical Side Trm-lt-blk Call for Availability
WB7K5331 Vertical Side Trm-rt-blk Call for Availability
265 WB34M24 Access Plate Call for Availability
266 WB2K5334 Base Asm W/levelers Call for Availability
268 WB2M69 Stability Bracket Kit Call for Availability
269 WB2X9427 Service Cord Mtg Plate Call for Availability
273 WB34M27 Light Wire Cover Call for Availability
278 WB2M66 Capacitor Clamp Call for Availability
280 WB2M64 Main Back Stiffener Call for Availability
281 WB14M2 Lower Panel Hinge $28.90
Special Order
WB14X104 WB14X104 Hinge Asm Rt $45.80
 In-Stock
Retail: $58.85
WB14X103 WB14X103 Hinge Asm Lt $64.10
Special Order
282 WB38M12 Vent Tube Call for Availability
283 WB6M5 Jar Lid $20.10
Special Order
284 WB6M3 Grease Tube Call for Availability

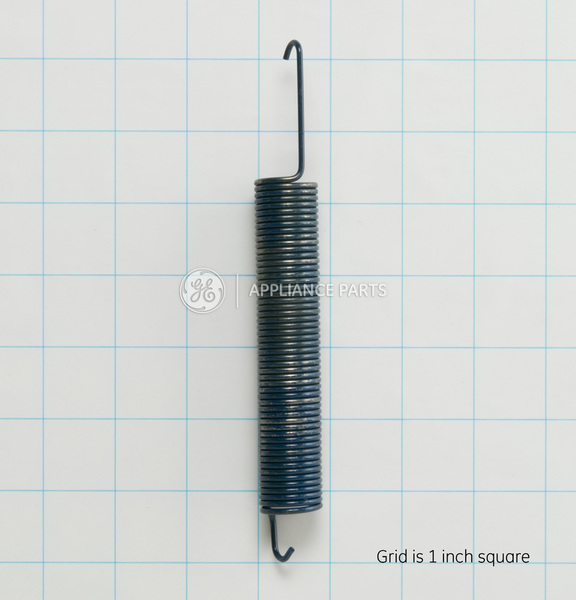

286 WB9M4 WB9M4 Ov Dr Spring $55.00
Special Order
290 WB2M57 Corner Filler Lt Call for Availability
WB2M63 Rear Filler Lt $12.10
Special Order
WB2M62 Rear Filler Rt $14.90
Special Order
WB2M58 Corner Filler Rt Call for Availability
291 WB2X9152 Cover Call for Availability
294 WB2X9719 WB2X9719 Broil Element Support $12.70
 In-Stock
Retail: $12.37
295 WB17X5095 WB17X5095 Power Ring Housing $83.50
Special Order
296 NLA ITEM Leveling Screw Call for Availability
529 WB35K5038 Fan Housing Insulation Call for Availability
558 WB17M10 Capacitor Call for Availability
584 WB27K5050 Relay $55.50
Special Order
767 WB1K5136 Screw-black $4.60
Special Order
796 WB1K5116 Screw $10.50
Special Order
801 WB1M1 WB1M1 Screw $10.10
 In-Stock
Retail: $9.83
804 WB1X681 WB1X681 Screw $10.50
Special Order
805 WB1X1113 Screw $5.80
Special Order
807 WB01X32746 Screw $10.50
Special Order
809 WB1X1137 WB1X1137 Screw $10.50
Special Order
810 WB1X1130 WB1X1130 Screw $10.50
Special Order
813 WB1X1261 Screw $10.50
Special Order
814 WB1X1258 Screw Call for Availability
820 WB1X1424D Screw $9.60
Special Order
854 WB1X1328 WB1X1328 Screw-black $3.50
Special Order
926 WB1X1260 Ground Washer $9.30
Special Order
934 WB1K5054 Washer $4.50
Special Order
935 WB1K5174 Washer $10.50
Special Order
968 WB2X9393 Dart Button $10.10
Special Order
978 WB1X1259 Hex Nut $10.50
Special Order
979 WB1X1177 Spacer $22.40
Special Order
