Maytag ABB192ZDEB Parts List

Popular Searches: (Click to search)    board  capacitor  compressor  control  damper  defrost  evap  evaporator  fan  harness  ice  jazz  kit  maker  motor  overload  relay  thermistor  thermostat  tpg1370yxa


Select a Diagram

01 - Cabinet Back

02 - Compressor

03 - Controls

04 - Evaporator Area & Rollers

05 - Freezer Door

06 - Interior Cabinet & Freezer Shelving

07 - Optional Ice Maker Kit Ic11b P1328003w

08 - Refrigerator Door

09 - Refrigerator Shelving

10 - Supplemental Information

11 - Wiring Information (series 11 Shown)

Select Diagram ... 01 - Cabinet Back 02 - Compressor 03 - Controls 04 - Evaporator Area & Rollers 05 - Freezer Door 06 - Interior Cabinet & Freezer Shelving 07 - Optional Ice Maker Kit Ic11b P1328003w 08 - Refrigerator Door 09 - Refrigerator Shelving 10 - Supplemental Information 11 - Wiring Information (series 11 Shown)

08 - Refrigerator Door   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	67004978	Bushing, Door (blk) (Series: 10)	$13.70 Special Order
2	67004036	Door Assy., Ref. Foam (blk) (Series: 10)	$245.40 Special Order
3	WPW10348409	Screw, Mounting (Series: 10)	$4.80  In-Stock Retail: $4.59
4	WPW10436245	Gasket, Ref Door (blk) (Series: 10)	$207.30 Special Order
	WPW10436245	Gasket, Ref Door (Series: 12)	$207.30 Special Order
5	A3080001	Plug, Button (blk) (Series: 10)	Call for Availability
6	WP98165	Screw Sm/hex (Series: 12)	$4.80 Special Order
	WP489349	Screw, Tf (Series: 10)	$4.80 Special Order
7	WP12566606ED	Hinge, Top (blk) (Series: 10) (Replaces: 67001011)	$28.20  In-Stock Retail: $27.49
	WP12566606ED	Top Hinge Assy (blk) (Series: 12)	$28.20  In-Stock Retail: $27.49
8	67001012	Cover, Top Hinge (blk) (Series: 10)	$31.70  In-Stock Retail: $30.83
9	WP489349	Screw (Series: 12) (Replaces: 67006303)	$4.80 Special Order
	R9800670	Screw, Tf (Series: 10)   (Replaces: M0238731)	$5.50 Special Order
10	M0310731	Plug, Top Hinge Button (blk) (Series: 10)	$20.10 Special Order
11	W11708403	Stop, Door (blk) (Series: 10)	$8.20 Special Order
12	WP8281196	Screw (Series: 12)	$4.80  In-Stock Retail: $4.59
	WP8281196	Screw-mach (Series: 10)	$4.80  In-Stock Retail: $4.59
13	67004838	Plug, Button (blk) (Series: 10)	$7.00 Special Order
14	WP67001279	Tray, Dairy (Series: 10)	$52.50 Special Order
15	WP12744905	Dairy Assy (Series: 10)	$68.20 Special Order
16	67001139	Retainer, Door (Series: 10)	$63.80 Special Order
17	WP67001021	Bucket, Med Ref Door (Series: 10)	$50.80 Special Order
18	10423131	Bin, Utility (Series: 10)	$24.30 Special Order
19	67001141	Bucket, Small Ref Dr (Series: 10)	$48.40  In-Stock Retail: $47.14
20	10436404	Lid, Utility (Series: 10)	$44.70 Special Order
21	10436506	Tray, Egg (Series: 10)	$7.40 Special Order
22	67003876	Card, Handle Release (Series: 10)	$4.20 Special Order
	WPW10179174	Handle, Side Mount (blk) (Series: 10)	$117.30 Special Order
23	WP841180A	Tray, Ice (Series: 10)	$11.20 Special Order
24	WP67006744	Pin, Hinge (ctr) (Series: 10) (Replaces: 10351001)	$4.80  In-Stock Retail: $4.59
25	Y12528501	Nameplate (amana Plus) (Series: 10)	$40.30 Special Order
26	WP12607104ED	Hinge, Center (blk) (Series: 12)	$92.70 Special Order
	WPM0274062	Shim, Non Metal (blk) (Series: 10)	$15.60 Special Order
	WP12607104ED	Hinge, Center (blk) (Series: 10)	$92.70 Special Order
27	WP67006380	Screw, T. F. (Series: 10)	$4.80 Special Order
	WP67006380	Screw (Series: 12)	$4.80 Special Order

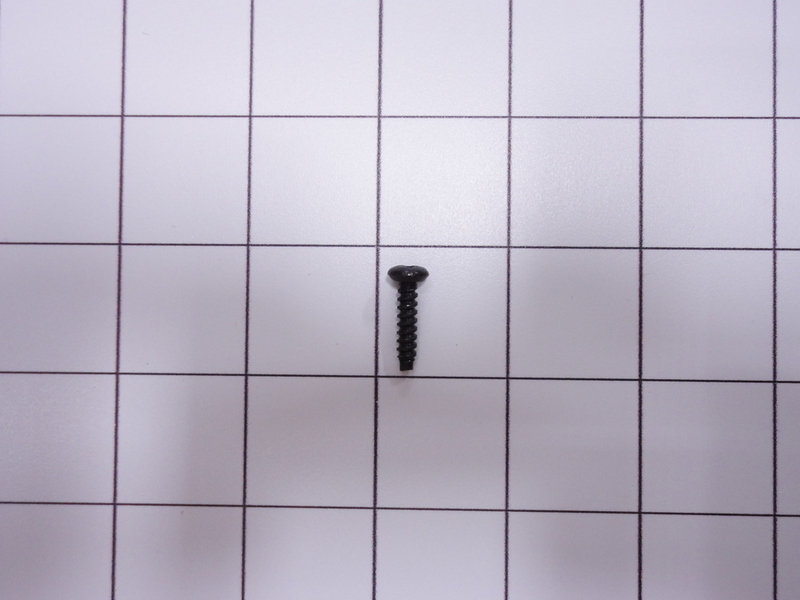

28	67006806	Screw (blk) (Series: 10)	$8.70 Special Order
	67007166	Screw (blk) (Series: 12)	$4.40 Special Order
29	WP12246608	Plug, Handle Hole (blk) (Series: 10)	$4.80  In-Stock Retail: $4.59
	67006806	Screw, Hi Torque (blk) (Series: 12)	$8.70 Special Order
	WP12246610	Plug, Handle Hole (stnls) (Series: 10)	$4.80  In-Stock Retail: $4.59
