GE JHP63G*M1 Parts List

Popular Searches: (Click to search) 118v 240v 40w appliance asm bake broil door elem jewel lamp neon oven receptacle ring surf trim upper 0 unit

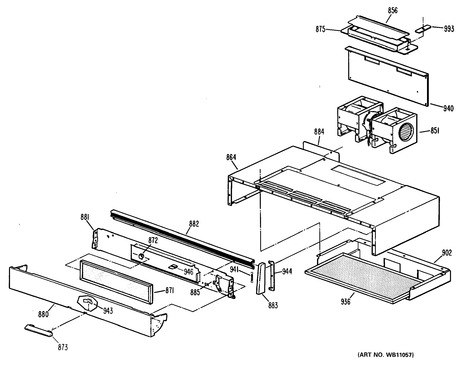

Select a Diagram

1 - Component Group

2 - Component Group

3 - Component Group

Double click the image below to zoom-in

Hover over In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability
122	WB2X1422	Clamp Harness	$3.30 Special Order
148	WZ04X0237	Screw	Call for Availability
	WB1X536	Screw (Replaces: WB1X5763)	$12.00 In-Stock Retail: $11.66
459	WB1X537	Screw	$10.50 Special Order
826	WB2X3001	Spacer Post	Call for Availability
827	WB2X2999	Angle Brace	Call for Availability
829	WB2X190	Clip Spring	$21.00 Special Order
851	WB26X5089	Blower Motor	Call for Availability
856	WB2X7764	Damper	$34.70 Special Order
864	WB56X7007	Hood Body Ad	Call for Availability
871	WB2X7758	Filter Grease	$70.20 Special Order
872	WB2X1583	Clip Hood Filter	Call for Availability
873	WB15X109	Handle Hood Panel	$32.60 Special Order
875	WB49X5935	Exhaust Asm	Call for Availability
880	WB36K5144	Panel Hood (Replaces: WB56X923)	$44.10 Special Order
881	WB2X7776	Plate Filter	Call for Availability
882	WB7X6793	Trim Hood	$96.00 Special Order
883	WB7X770	End Cap Rh	Call for Availability
	WB2X3432	Pad	Call for Availability
	WB7X771	End Cap Lh	$76.60 Special Order
884	WB2X2017	Cover Back	Call for Availability
885	WB2X3131	Spring & Pin Asm	Call for Availability
902	WB49X5470	Plenum Air	$63.00 Special Order
940	WB2X7900	Cover Housing	Call for Availability
993	WB2X7765	Plate	Call for Availability
1201	WB1X5364	Screw	$10.50 In-Stock Retail: $10.22
32767	31-0877	Install Instr	Call for Availability
	49-4818	Manual Users	Call for Availability
