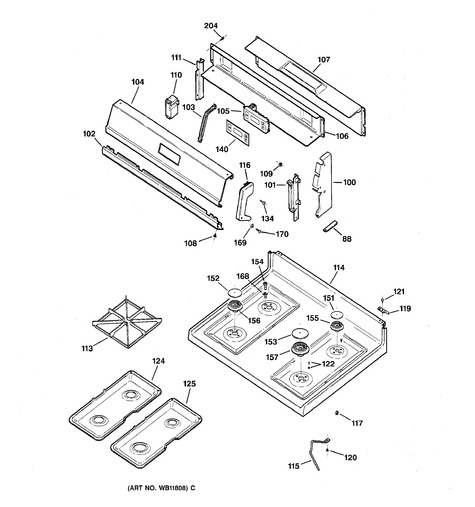

2 - Control Panel & Cooktop   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
88	NLA ITEM	Pad Felt (wh)	Call for Availability
100	NLA ITEM	Cover End Rt (wh)	Call for Availability
	WB07K10002	Cover End Lt (wh)	Call for Availability
101	NLA ITEM	Plate End Right	Call for Availability
	NLA ITEM	Plate End Left	Call for Availability
103	WB02K10005	Bracket-timer	Call for Availability
104	WB36K10058	Trim-control (wh)	Call for Availability
105	WB27T10469	Timer (no Overlay) (Replaces: WB11K44)	Call for Availability
106	WB34K10003	Cover Back Upper	Call for Availability
107	WB34K10001	Cover Lower Back	Call for Availability
108	NLA ITEM	Screw (blk)	Call for Availability
	WB1X5874	Screw (wh)	Call for Availability
	WB1X5364	Screw (cr)	Call for Availability
109	WB1X5743	Speednut	Call for Availability
110	6544S0001	Spark Mod. Top Burners   (Replaces: WB13K25)	Call for Availability
	WB18K10035	Harness-ignition Hv (Replaces: WB18K10005)	Call for Availability
111	WB34K5	Cover Wire	Call for Availability
113	WB31K10035	Grate (gray)	Call for Availability
114	WB62K10007	Cooktop (wh)	Call for Availability
115	WB2K91	Support Rangetop	Call for Availability
116	WB07K10005	End Cap Rt (wh)	Call for Availability
	WB07K10007	End Cap Lt (wh)	Call for Availability
117	WB2K17	Pin Locator	Call for Availability
119	WB14K5	Pin Hinge	Call for Availability
120	WB1K45	Screw Washer Asm	Call for Availability
122	WB01K10008	Screw Cktp	Call for Availability
124	WB32K10007	Pan Unit Lft (gray)	Call for Availability
125	WB32K10005	Pan Unit Rt (gray)	Call for Availability
134	WB1K76	Screw 8-18 Ab T 1.5 (wh)	Call for Availability
140	NLA ITEM	Overlay (wh)	Call for Availability
151	WB29K10002	Cap-burner Small (gray)	Call for Availability
152	WB29K10004	Cap-burner Med (gray)	Call for Availability
153	WB29K10007	Cap-burner Large (gray)	Call for Availability
154	WB13K10003	Electrode-top Burners	Call for Availability
155	NLA ITEM	Burner-small	Call for Availability
156	WB18X21511	Burner-med (Replaces: WB16K10005)	Call for Availability
157	NLA ITEM	Burner-large	Call for Availability
168	WB01K10112	Clip-electrode (Replaces: WB01K10007)	Call for Availability
169	WB1K57	Washer (clear)	Call for Availability
170	NLA ITEM	Screw-mtg End Cap (blk)	Call for Availability
204	WZ04X0345	Screw 8-18x5/8 Hxw	Call for Availability
	WB1K5062	Screw (blk) (Replaces: WB1K42)	Call for Availability
