GE JGBS16GPJ2 Parts List

Search Model by Keyword(s):

Popular Searches: (Click to search)


Select a Diagram

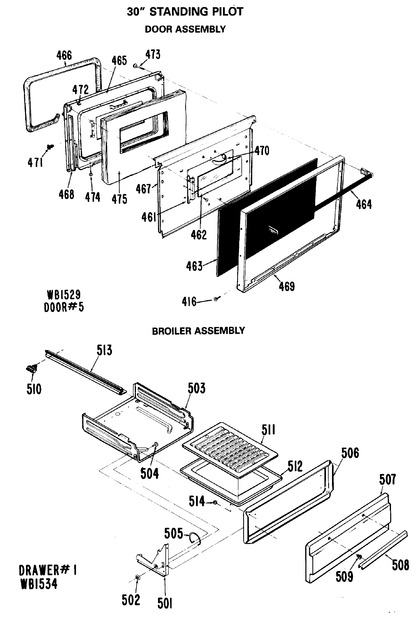

3 - Door Assembly   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item # Part # Description Price / Availability Add to Cart
461 WB2X4980 Bracket-glass (2) Call for Availability
462 WB56X1834 Glass Rear Call for Availability
463 WB56X1883 Glass-front $84.90
Special Order
464 WB15X245 Handle $135.80
Special Order
465 WB55X636 Cover-door Liner Call for Availability
WB55X601 Liner-oven Door Call for Availability
466 WB2X7901 Gasket-oven Door   (Replaces: WB2X4984) Call for Availability
467 WB2X4988 Shield Insulation Call for Availability
468 WB2X4738 Support-glass (2) Call for Availability
469 WB7X1483 Trim-oven Door $214.70
Special Order
470 WB1X927 Clip-retainer (2) Call for Availability
471 WB1X1020 Fastener-spacer-side (6) Call for Availability
472 WB1X688 Fastener-spacer-top (3) Call for Availability
473 WB1X1016 Screw-handle (2) Call for Availability
474 WB1X787 Screw-bottom (3) Call for Availability
475 WB2X4985 Insulation Call for Availability
501 WB14X85 Hinge-broiler-rh $32.20
Special Order
WB14X84 Hinge-broiler-lh $34.60
Special Order
502 WB1X698 Fastener-push Nut (2) Call for Availability
503 WB55X569 Body-broiler Call for Availability
504 WB1X701 Pin-hinge (2) Call for Availability
505 WB9X197 Spring-broiler Hinge-rh $37.60
Special Order
WB9X200 Spring-broiler Hinge-lh Call for Availability
506 WB56X1851 Liner-broiler Drawer Call for Availability
507 WB56X1853 Panel-drawer-white Call for Availability
WB56X1778 Panel-drawer-almond $100.40
Special Order
508 WB15X233 Handle Call for Availability
509 WB1X1025 Fastener-spacer (2) $16.20
Special Order
510 WB39X65 Glide-broiler(6) $16.70
Special Order
511 WB48X10056 WB48X10056 Insert-broiler Pan $26.10
 In-Stock
Retail: $31.28
512 WB48X10056 WB48X10056 Pan-broiler $26.10
 In-Stock
Retail: $31.28
WB1X784 Screw(7) Call for Availability
WB1X1024 Screw(2) $7.40
Special Order
513 WB39X66 Track-broiler (4) $45.80
Special Order
WB2X4995 Insulation-broiler Door Call for Availability
514 WB2X4996 Plub-broiler Drawer (2) Call for Availability
