GE JGBP90MEA3BC Parts List

Popular Searches: (Click to search)    asm  bake  blk  broil  burner  burners  cap  door  electrode  front  gasket  igniter  left  orifice  pan  right  sensor  top  tube  unit


Select a Diagram

1 - Gas Burner Parts

2 - Control Panel & Cooktop

3 - Body Parts

4 - Door & Drawer Parts

Select Diagram ... 1 - Gas Burner Parts 2 - Control Panel & Cooktop 3 - Body Parts 4 - Door & Drawer Parts

2 - Control Panel & Cooktop   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
88	WB2K64	Pad Felt (bk)	$9.80 Special Order
89	NLA ITEM	Pad Felt (2")	Call for Availability
100	WB07K10052	Cover End Lt (blk)	Call for Availability
	WB07K10051	Cover End Rt (blk)	$30.60 Special Order
101	NLA ITEM	Plate End Right	Call for Availability
	NLA ITEM	Plate End Left	Call for Availability
102	WB07K10056	Lower Front Trim (blk)	$14.70 Special Order
103	WB02K10005	Bracket-timer	Call for Availability
104	WB36K10048	Trim Control (blk)	$25.50 Special Order
105	WB27K10007	Control (no Overlay)	Call for Availability
106	WB34K10003	Cover Back Upper	Call for Availability
107	WB34K10008	Cover Lower Back	$30.20 Special Order
108	WB1X5364	Screw (cr)	$10.50  In-Stock Retail: $10.22
	NLA ITEM	Screw 8-18 (bk)	Call for Availability
110	6544S0001	Spark Mod. Top Burners   (Replaces: WB13K25)	Call for Availability
	WB18K10035	Harness-ignition Hv (Replaces: WB18K10005)	$38.90  In-Stock Retail: $37.92
111	WB34K5	Cover Wire	$11.90 Special Order
113	NLA ITEM	Grate-dual (blk)	Call for Availability
114	WB62K10034	Cooktop (cr)	$171.30 Special Order
115	WB2K91	Support Rangetop	$10.00 Special Order
116	WB07K10053	End Cap Rt (blk)	Call for Availability
	WB07K10054	End Cap Lt (blk)	Call for Availability
117	NLA ITEM	Pin Locator	Call for Availability
119	WB14K5	Pin Hinge	$10.50 Special Order
120	WB1K45	Screw Washer Asm	$10.50  In-Stock Retail: $10.22
121	WB1K5119	Screw	$10.50 Special Order
122	WB01K10008	Screw Cktp	$10.50  In-Stock Retail: $10.22
124	WB34K10017	Pan Unit Left (blk)	$29.10 Special Order
125	WB34K10009	Pan Unit-right (blk)	$29.90 Special Order
137	WB34K10005	Hood Lamp (blk)	$65.00 Special Order
138	NLA ITEM	Socket Fluorescent Lamp	Call for Availability
139	WB8K3	Ballast	Call for Availability
140	F26T8-CW-4	Lamp Fluorescent T-8 (Replaces: WB8K8)	$34.10 Special Order
141	WB8K10	Base Starter	$28.40 Special Order
142	WB6K7	Starter	Call for Availability
151	WB29K10009	Cap-burner Small (blk)	$10.40 Special Order
152	WB29K10001	Cap-burner (blk)	$53.00  In-Stock Retail: $67.59
153	WB29K10006	Cap-burner Large (blk)	$100.90  In-Stock Retail: $98.43
154	WB13K10003	Electrode-top Burners	Call for Availability
155	NLA ITEM	Burner-small	Call for Availability
156	WB18X21511	Burner-med (Replaces: WB16K10005)	$20.40  In-Stock Retail: $19.89

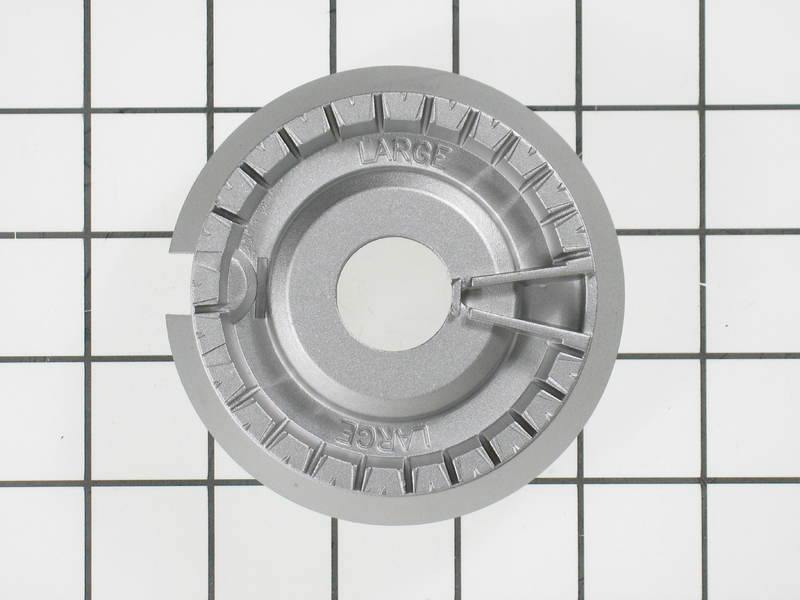

157	NLA ITEM	Burner-large	Call for Availability
168	WB01K10112	Clip-electrode (Replaces: WB01K10007)	$10.50  In-Stock Retail: $10.22
171	WB57K10033	Crystal And Overlay Asm	Call for Availability
204	WZ04X0345	Screw 8-18x5/8 Hxw	Call for Availability
	WB1K5062	Screw (blk) (Replaces: WB1K42)	$10.50 Special Order
770	WB35K10004	Insulation-control	$5.70 Special Order
