GE JGBP29SEK1SS Parts List

Popular Searches: (Click to search)    150n  asm  bake  blk  bracket  broil  burner  door  dual  electrode  0  front  gasket  igniter  ignition  med  orif  sensor  switch  top


Select a Diagram

1 - Gas & Burner Parts

2 - Control Panel & Cooktop

3 - Body Parts

4 - Door & Drawer Parts

Select Diagram ... 1 - Gas & Burner Parts 2 - Control Panel & Cooktop 3 - Body Parts 4 - Door & Drawer Parts

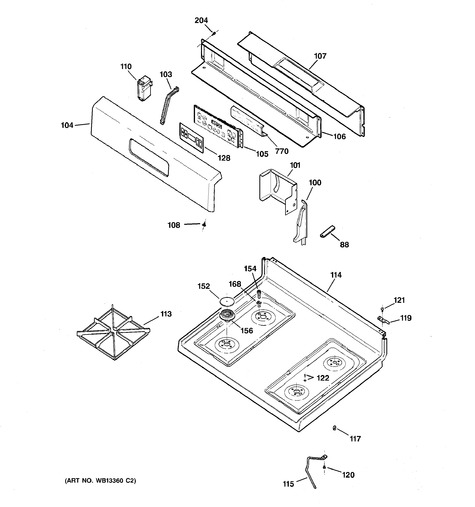

2 - Control Panel & Cooktop   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
88	NLA ITEM	Pad Felt (2")	Call for Availability
	WB02K10099	Pad	Call for Availability
100	WB07K10193	End Support Gloss Black	$20.20  In-Stock Retail: $19.63
	WB07K10194	End Support Gloss Black	$22.80  In-Stock Retail: $22.24
101	WB37K10003	Bracket Cook Top Rg	$10.90 Special Order
	WB37K10004	Bracket Cook Top Lf	$10.80 Special Order
103	WB02K10074	Bracket Control	Call for Availability
104	WB36K10355	Trim & Panel Cntrl (ss)	Call for Availability
105	WB27K10354	Control T09 (Replaces: WB27K10219 WB27K10090)	$119.90  In-Stock Retail: $116.91
106	WB34K10003	Cover Back Upper	Call for Availability
107	NLA ITEM	Cover Back Lower	Call for Availability
108	NLA ITEM	Screw (blk)	Call for Availability
	WB01T10016	Scr 8-18 Ab Hxw 5/8 S	$10.50 Special Order
	WB1X5364	Screw (cr)	$10.50  In-Stock Retail: $10.22
110	6544S0001	Spark Mod. Top Burners   (Replaces: WB13K25)	Call for Availability
	WB18K10035	Harness Hv (Replaces: WB18K10024)	$38.90  In-Stock Retail: $37.92
113	WB31K10034	Grate (blk)	$121.20  In-Stock Retail: $118.20
114	WB62K10063	Cooktop (blk)	Call for Availability
115	WB2K91	Support Rangetop	$10.00 Special Order
117	WB2K17	Pin Locator	$28.90 Special Order
119	WB14K5	Pin Hinge	$10.50 Special Order
120	WB1K45	Screw Washer Asm	$10.50  In-Stock Retail: $10.22
121	WB1K5119	Screw	$10.50 Special Order
122	WB01K10008	Screw Cktp	Call for Availability
128	WB27K10106	Overlay T09-a	Call for Availability
152	WB29K10001	Cap-burner Med (blk)	$55.50  In-Stock Retail: $60.65
154	WB13K10014	Electrode Top	Call for Availability
156	WB16K10055	Burner-med (Replaces: WB16K10023)	$42.90  In-Stock Retail: $41.82
168	WB01K10112	Clip-electrode (Replaces: WB01K10007)	$10.50  In-Stock Retail: $10.22
204	WZ4X345D	Screw 8-18x5/8 Hxw	$22.70 Special Order
	WB1K5062	Screw (blk) (Replaces: WB1K42)	$10.50 Special Order
770	WB35K10040	Insulation Control	$13.50 Special Order
