GE JBS30GV4AD Parts List

Popular Searches: (Click to search)    118v  240v  bake  broil  bulb  0  cap  end  gasket  handle  heat  jewel  lamp  light  neon  oven  thermostat  top  unit


Select a Diagram

1 - Control Panel & Cooktop

2 - Door & Drawer Parts

3 - Body Parts

Select Diagram ... 1 - Control Panel & Cooktop 2 - Door & Drawer Parts 3 - Body Parts

1 - Control Panel & Cooktop   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	WB62X5472	Rangetop & Glass Asm Ad	Call for Availability
2	WB36X5762	Trim & Bracket Asm (blk)	$66.70 Special Order
3	WB21X36771	Sw Inf. Control 6" Brnr   (Replaces: WB23X5092)	$46.90  In-Stock Retail: $52.79

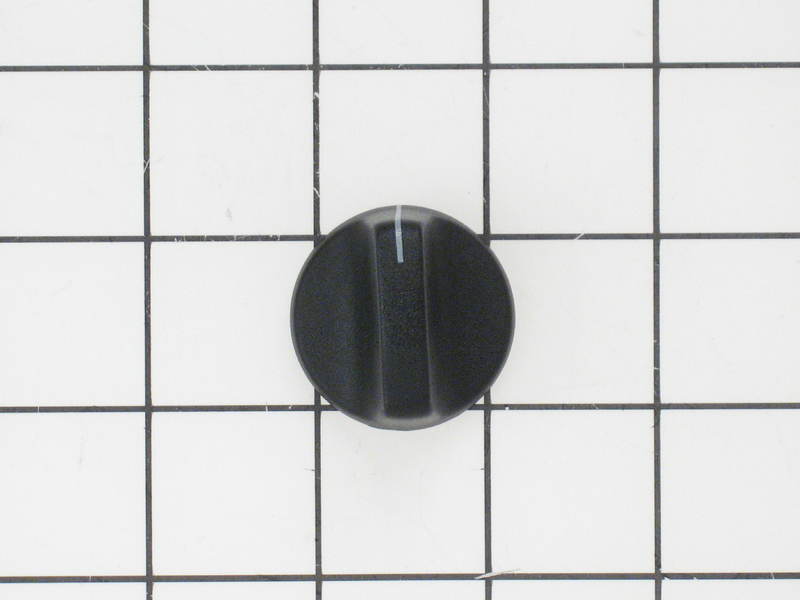

4	WB3X5834	Knob-surface Unit	Call for Availability
5	WB2X1608	Neon Lamp 118v	Call for Availability
7	WB25X65	Jewel	$25.10  In-Stock Retail: $24.48
8	WB2X8126	Pin Hinge R	$11.10 Special Order
	WB2X8127	Pin Hinge L	$11.10 Special Order
9	WB7X7137	End Cap Left	$11.30  In-Stock Retail: $11.28
	WB7X7136	End Cap Right	$12.80 Special Order
12	WB3X5839	Knob Thermo (black)	$15.00 Special Order
14	WB20X5071	Thermostat Top Heat Sp	$165.30  In-Stock Retail: $180.24

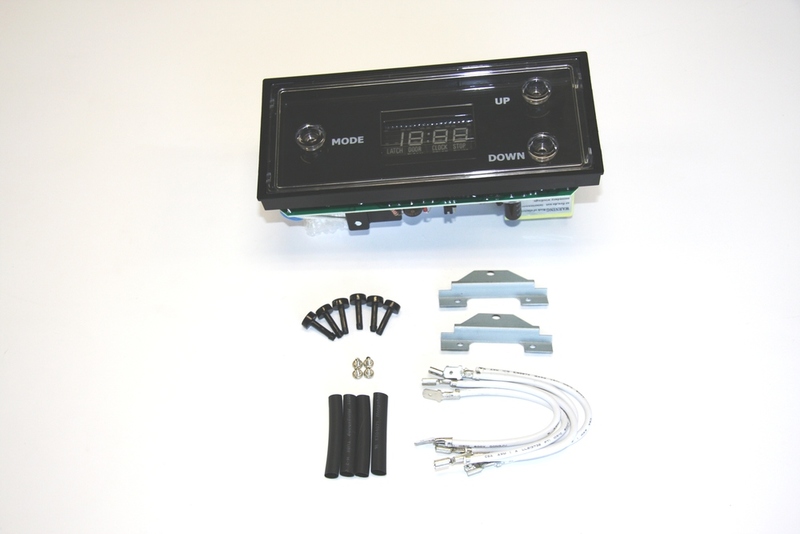

16	WB19X10008	Timer (black) (Replaces: WB19X5305)	Call for Availability
17	WB3X5699	Knob	$23.50  In-Stock Retail: $22.86
18	WB36X5575	Crystal Timer	$42.50 Special Order
	WB1K41	Scr 6-20 Ab Fht 3/8 S	$5.40 Special Order
19	WB7X7268	Plate End Wh Rh	Call for Availability
	WB7X7269	Plate End Wh Lh	Call for Availability
26	WB2X8312	Clip Vent Trim	$7.40 Special Order
27	WB9X5119	Spring Heater Mtg	$31.00 Special Order
28	WB2X8377	Stud Heater Mount	$2.50 Special Order
32	WB2X8556	Support Radiant Heater	$36.70 Special Order
38	WB7X7218	Vent Trim & Clip Asm Ad	$52.90 Special Order
41	WB24T10042	Switch Oven Lamp - Blk	$22.90 Special Order
56	WB30X44826	Haliant Element-1500w	$133.10 Special Order
58	WB30T10045	Haliant Element-2000w	$137.80  In-Stock Retail: $150.27
59	WB2X8321	Brace Body	Call for Availability
108	WB1X5904	Scr 8-18 Ba Por 3/4 Sn	$10.50 Special Order
143	WB1X5860	Screw	Call for Availability
149	WB2X7702	Clip Crystal	$4.10 Special Order
711	WB2X8555	Bracket Hot Light	Call for Availability
999	31-0824	Install Instr (anti-tip)	Call for Availability
	WB02T10415	Bracket Asm Anti-tip	$37.30 Special Order
	49-8722	Pm Manual Use & Care	$6.20 Special Order
	31-20216	Pm Manual Mini	Call for Availability
32767	WB17X171	Terminal Male & Female	$10.00 Special Order
