Whirlpool 8ED5FHKXVY01 Parts List

Popular Searches: (Click to search)    air  assembly  bulb  cam  closer  crisper  defrost  door  drier  light  lower  metal  paint  pan  service  thermostat  timer  touch  upper  white


Select a Diagram

01 - Cabinet Parts

02 - Refrigerator Liner Parts

03 - Refrigerator Shelf Parts

04 - Freezer Liner Parts

05 - Air Flow Parts

06 - Refrigerator Door Parts

07 - Freezer Door Parts

08 - Unit Parts

09 - Control Parts

10 - Optional Parts (not Included)

Select Diagram ... 01 - Cabinet Parts 02 - Refrigerator Liner Parts 03 - Refrigerator Shelf Parts 04 - Freezer Liner Parts 05 - Air Flow Parts 06 - Refrigerator Door Parts 07 - Freezer Door Parts 08 - Unit Parts 09 - Control Parts 10 - Optional Parts (not Included)

01 - Cabinet Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	W10130267	Service & Wiring Sheet	Call for Availability
	W10140887	Use & Care Guide (english)	Call for Availability
	W10140891	Use & Care Guide (chinese)	Call for Availability
2	4386774	Front Roller (2)	$102.40  In-Stock Retail: $99.85
3	W10850698	Screw	$7.00 Special Order
4	WPW10250570	Roller (rear) (2) (Replaces: W10250570)	$24.80 Special Order
5	WP489427	Screw	$4.80  In-Stock Retail: $4.59
6	WP2155013	Clip, Grille (Replaces: 2155013)	$4.80  In-Stock Retail: $4.59
7	WP489128	Screw	$6.70 Special Order
8	W10138584	Hinge Cover, Fc	$11.00 Special Order
9	WP2209697	Shim (2)	$64.20 Special Order
10	W10856122	Screw (2) (Replaces: WP3400103 3400103)	$4.80 Special Order
11	WP2304249	Plate, Screw (2)	$8.50 Special Order
12	WP2203771	Hinge Top (rc) (Replaces: 2203771)	$62.90  In-Stock Retail: $61.30
13	WP2203770	Hinge Top (fc) (Replaces: 2203770)	$61.10 Special Order
14	WP8281227	Screw	$6.70 Special Order

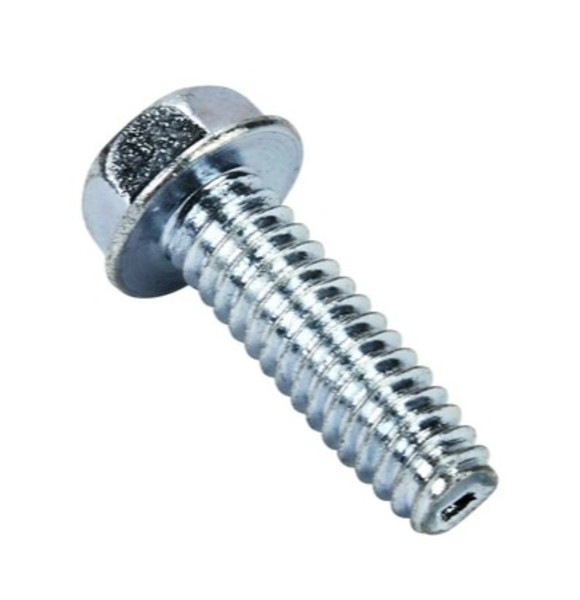

15	WP489497	Screw (4)	$6.70  In-Stock Retail: $6.51
16	8201707	Hinge Bottom (2) (Replaces: 2217075)	$54.50  In-Stock Retail: $53.09
17	W10853301	Screw	$6.60 Special Order

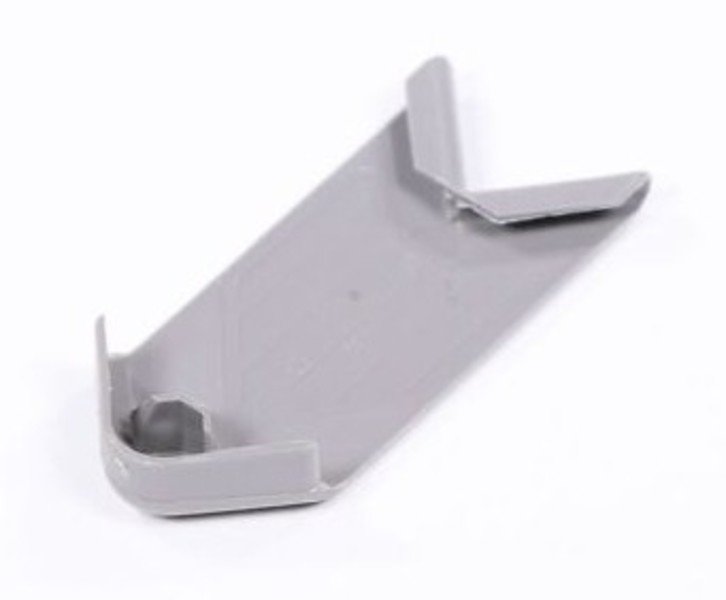

18	W10851579	Filler, Wrapper	$4.80  In-Stock Retail: $4.59
19	2198470AP	Grille	$82.20 Special Order
20	WP489497	Screw (6)   (Replaces: 489497)	$6.70  In-Stock Retail: $6.51
21	WP489464	Screw   (Replaces: 489464)	$4.80 Special Order
22	W11566763	Drain Fitting	$31.40 Special Order
23	W11512417	Extension Tube (Replaces: W10153550)	$21.10  In-Stock Retail: $20.51
24	2214575	Cover, Unit	$118.70 Special Order
25	N/P	Cabinet (not A Serviceable Part)	Call for Availability
26	W10138579	Hinge Cover, Rc	$31.90 Special Order
27	489348	Clamp, Service Cord	$5.40 Special Order
28	WP488729	Screw   (Replaces: 489084)	$4.80  In-Stock Retail: $4.59
29	WPW10329686	Door Closer, Lower Cam (2) (Replaces: 2155311)	$4.40  In-Stock Retail: $4.20
30	WP489483	Screw (Replaces: 489483)	$6.70  In-Stock Retail: $6.51
