GE JBP27CK4CC Parts List

Popular Searches: (Click to search)    1500w  2600w  asm  bake  block  bowl  bulb  burner  cntl  deluxe  gasket  inf  kit  light  oven  surf  surface  term  terminal  unit


Select a Diagram

1 - Control Panel

2 - Cooktop

3 - Body Parts

4 - Door

5 - Door Lock

Select Diagram ... 1 - Control Panel 2 - Cooktop 3 - Body Parts 4 - Door 5 - Door Lock

1 - Control Panel   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	WB36T10846	Trim & Bracket Asm	Call for Availability
2	WB36T10295	End Cap Lf Bisque	$17.00 Special Order
	WB36T10294	End Cap Rt Bisque	$15.50 Special Order
3	WB02T10306	Shield Heat (bkgd)	$19.60 Special Order
15	WB34T10088	Cover Control	$20.40 Special Order

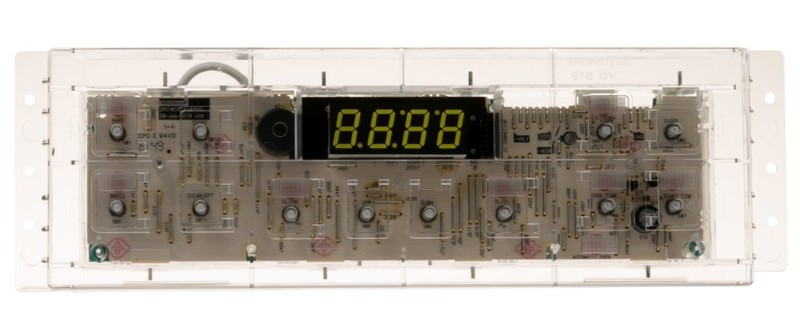

16	WB27X45466	Control Oven T09   (Replaces: WB27T10816)	$185.30  In-Stock Retail: $180.72
18	NLA ITEM	Faceplate Graphics	Call for Availability
19	WB24T10025	Inf Sw Cntl 2600w	$31.00  In-Stock Retail: $52.08
23	WB24T10029	Inf Sw Cntl 1500w	$35.80  In-Stock Retail: $59.69

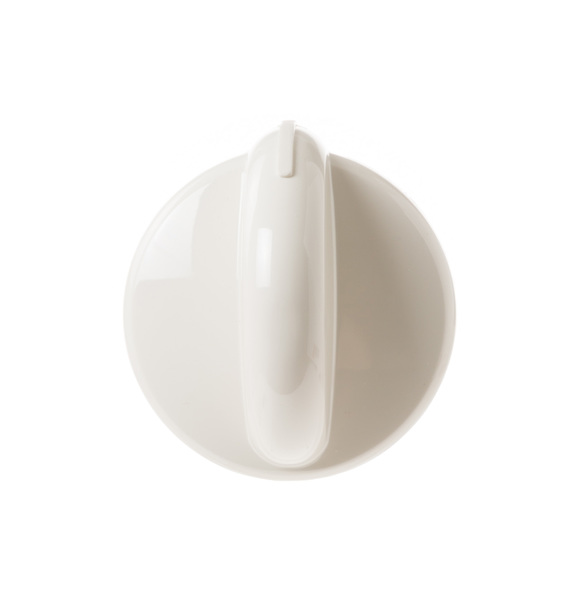

29	NLA ITEM	Knob Bq	Call for Availability
33	WB27T10626	Light Indicator Pilot	$10.50  In-Stock Retail: $10.22
34	WB25T10041	Lens	$10.50  In-Stock Retail: $10.22
91	NLA ITEM	Maintop Hinge	Call for Availability
715	WD2X434	Screw 8-18 X 5/16 Ad	$9.30 Special Order
847	WB1X1118	Screw-nickel	$10.50 Special Order
875	WZ4X245D	Scr 8-18 Ab Hw 9/16 Blk	$25.30 Special Order
	WH2X930	Screw 8-18 Ab Hxw 3/8	$10.50 Special Order
999	49-80368	Manual Use & Care	Call for Availability
	31-10617	Instruction Install	Call for Availability
	31-10620	Instruction Install	Call for Availability
	31-14458	Manual Mini & Wd Asm	Call for Availability
1000	WB01T10016	Scr 8-18 Ab Hxw 5/8 S	$10.50 Special Order
1006	WB01X23501	Scr 8-32 Tpt Flr .215 Sn	$10.50 Special Order
