GE JBP24DB2CT Parts List

Popular Searches: (Click to search) 1500w 2585w 2600w asm bake block bowl bulb burner cntl elment gasket inf kit light oven surf surface term unit

Select a Diagram

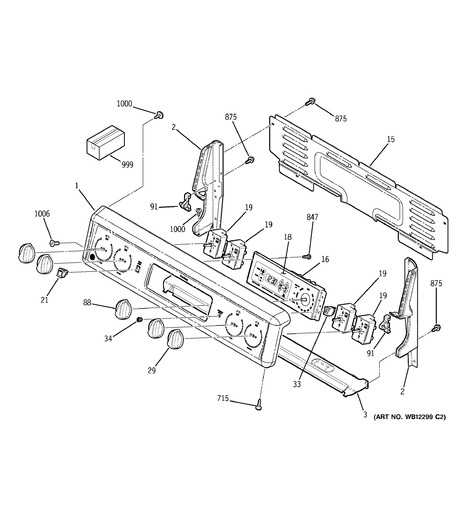

1 - Control Panel

2 - Cooktop

3 - Body Parts

4 - Door

5 - Door Lock

Double click the image below to zoom-in

Hover over In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability
1	WB36T10259	Trim & Bracket Asm	Call for Availability
2	NLA ITEM	End Cap Rt/blk	Call for Availability
	NLA ITEM	End Cap Lt/blk	Call for Availability
3	WB02T10022	Heat Shield	$19.00 Special Order
15	WB34T10020	Control Cover	$17.80 Special Order
16	NLA ITEM	To8 Control	Call for Availability
18	NLA ITEM	Faceplate Graphics Asm	Call for Availability
19	WB24T10058	Switch Infinite Cntl	$109.70 In-Stock Retail: $106.95
	WB24T10025	Inf Sw Cntl 2600w	$31.00 In-Stock Retail: $52.08
	WB24T10029	Inf Sw Cntl 1500w	$35.80 In-Stock Retail: $59.69
21	WB24T10042	Oven Rocker Switch	$22.90 Special Order
29	WB03T10072	Inf Knob (blk)	$68.20 In-Stock Retail: $66.48
33	WB27T10626	Indicator Light (Replaces: WB27T10113)	$10.50 Special Order
34	NLA ITEM	Indicator Light Lens	Call for Availability
88	NLA ITEM	T08 A Knob Ge	Call for Availability
91	NLA ITEM	Maintop Hinge	Call for Availability
715	WD2X432	Screw 8-18 X 5/16 Bk	$10.50 Special Order
847	WB1X1118	Screw-nickel	$10.50 Special Order
875	WZ4X245D	Scr 8-18 Ab Hw 9/16 Blk	$25.30 Special Order
	WH2X930	Screw 8-18 Ab Hxw 3/8	$10.50 Special Order
999	31-10414	Installation Instruction	Call for Availability
	31-10513	Instruction Install	Call for Availability
	31-14038	Manual Mini & Wd Asm	Call for Availability
	WB18T10054	Main Wire Harness	$65.70 Special Order
	49-80110	Manual Use & Care	Call for Availability
1000	WB01T10016	Scr 8-18 Ab Hxw 5/8 S	$10.50 Special Order
1006	WB01X23501	Scr 8-32 Tpt Flr .215 Sn	$10.50 Special Order
