GE GSG25IEMDFWW Parts List

Popular Searches: (Click to search)    asm  cond  crank  damper  defrost  disp  door  evap  fan  fill  grommet  motor  plunger  recess  sensor  solenoid  spring  temp  thermostat  water


Select a Diagram

10 - Fresh Food Shelves

1 - Door Kit

2 - Sealed System & Mother Board

4 - Freezer Door

5 - Fresh Food Door

6 - Freezer Section

7 - Freezer Shelves

8 - Ice Maker & Dispenser

9 - Fresh Food Section

3 - Replacement Parts List

Select Diagram ... 10 - Fresh Food Shelves 1 - Door Kit 2 - Sealed System & Mother Board 4 - Freezer Door 5 - Fresh Food Door 6 - Freezer Section 7 - Freezer Shelves 8 - Ice Maker & Dispenser 9 - Fresh Food Section 3 - Replacement Parts List

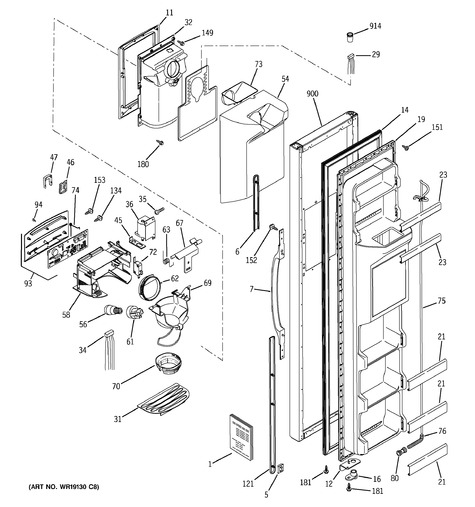

4 - Freezer Door   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	49-60167	Pm Guide Owners	Call for Availability
	31-45925	Pm Mini Manual Wiring	Call for Availability
5	NLA ITEM	Dart Clip	Call for Availability
6	WR12X10388	Tail Handle Sxs Wh	Call for Availability
7	WR12X10332	Handle Sxs Wh	$38.90  In-Stock Retail: $37.92
11	NLA ITEM	Trim Recess Disp Wh	Call for Availability
12	WR02X10576	Plate Door Stop Fz Wh	$18.50  In-Stock Retail: $17.96
14	WR24X10053	Gasket Door Fz Wh	Call for Availability
16	NLA ITEM	Cam & Thimble	Call for Availability
19	WR77X10035	Door Inner Fz Disp	$120.60 Special Order
21	WR17X10883	Front Door Shelf	$64.30  In-Stock Retail: $62.64
23	WR17X10888	Front Door Shelf	$8.20 Special Order
29	WR23X10281	Harness And Heater Asm   (Replaces: WR23X10273)	$198.60 Special Order
31	WR17X10712	Grill Recess Wh	$15.30  In-Stock Retail: $14.83
32	WR17X11069	Recess Ice Dispenser Wh	$78.00 Special Order
34	WR23X10480	Harness Recess Disp	$21.00 Special Order
35	WR01X10649	Scr 8-10 Pl Pnp 1/2 S	$10.10 Special Order
36	WR62X10055	Solenoid Asm (Replaces: WR62X10020)	$47.60  In-Stock Retail: $74.12
45	WR2X8818	Retainer Recess Door	$10.50 Special Order
46	WR02X11177	Pad Actuator Wh	$20.00 Special Order
47	WR02X11178	Bezel Wh	$11.40 Special Order
54	WR17X10720	Insulation Recess	Call for Availability
56	WR01X37886	Light Dispenser (Replaces: WR02X12208 WR02X10675)	$14.60  In-Stock Retail: $19.41
58	WR17X11170	Housing Shield Disp	$22.90  In-Stock Retail: $22.32
61	WR2X9561	Lamp Socket	$17.50 Special Order
62	WR17X11653	Door Recess Asm (Replaces: WR17X3093)	$10.10  In-Stock Retail: $15.44
63	WR02X10585	Spring Recess Door	$6.20  In-Stock Retail: $10.98
67	WR17X10706	Crank Door Recess	$10.50  In-Stock Retail: $10.22
69	WR17X10890	Funnel Ice Disp Wh	$25.00 Special Order
70	NLA ITEM	Extension Funnel Ice Wh   (Replaces: WR17X11265)	Call for Availability
72	WR23X10783	Switch (Replaces: WR23X10224)	$58.50  In-Stock Retail: $57.04
73	WR17X11385	Chute Ice Asm   (Replaces: WR17X10736)	Call for Availability
74	WR49X10233	Spring Funnel (Replaces: WR02X10584)	$12.70  In-Stock Retail: $12.39
75	WR17X11116	Tube Formed Asm	$8.40 Special Order
76	NLA ITEM	Sleeve Water Line	Call for Availability
80	WR02X11330	Union Connector (Replaces: WR02X10471)	$13.10  In-Stock Retail: $12.71
93	WR55X10451	Interface Disp Asm	$118.90 Special Order
94	WR01X10319	Scr 6-19x1/3	$2.30 Special Order
121	NLA ITEM	Tail Handle Sxs Wh	Call for Availability
134	WR01X10019	Scr 6-10 Pl Flp 1/2 S	$10.50 Special Order
149	WR01X10196	Scr 8-18 Hi/lo 5/8	$10.50  In-Stock Retail: $10.22
151	WR01X10623	Scr 8-18 Ab Ihxw 1/2 S (Replaces: WR1X1554)	$10.50 Special Order
152	NLA ITEM	Scr 8-18 Ab Fltr 5/8 S	Call for Availability
153	WR1X1505D	Scr Recess Disp 8-18 Ab	$34.50 Special Order
180	WE02X10011	Screw 6-32 Pl Ihw 3/8	$17.20 Special Order
181	WR01X10655	Scr 10-32 Tt Hxw 3/4 S   (Replaces: WR01X10215)	$10.50 Special Order
900	WR78X10398	Door Foam Asm Fz Wh	$85.70 Special Order
914	WR01X10200	Thimble Door Top	$10.50 Special Order
