Maytag A59F-5TXW-R Parts List

Search Model by Keyword(s):

Popular Searches: (Click to search)    assy  blk  block  bulb  button  clock  gasket  glass  grounding  hinge  inner  knob  metal  oven  screw  terminal  wire


Select a Diagram


04 - Internal Controls   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item # Part # Description Price / Availability Add to Cart
1 4012F018-80 Front,burner Box Bottom (Series: 1) Call for Availability
WP98008545 WP98008545 Screw (1/2``) (Series: 1) $11.60
 In-Stock
Retail: $11.31
2 4011F158-80 Bottom, Burner Box (Series: 1) Call for Availability
WP7101P126-60 WP7101P126-60 Screw (Series: 1) $4.80
Special Order
3 3604F149-80 Shield, Terminal (Series: 1) Call for Availability
4 WP59002061 Screw (6abx38-zn) (Series: 1) $4.80
Special Order
3807F219-51 Support, Therm Disc (Series: 1) Call for Availability

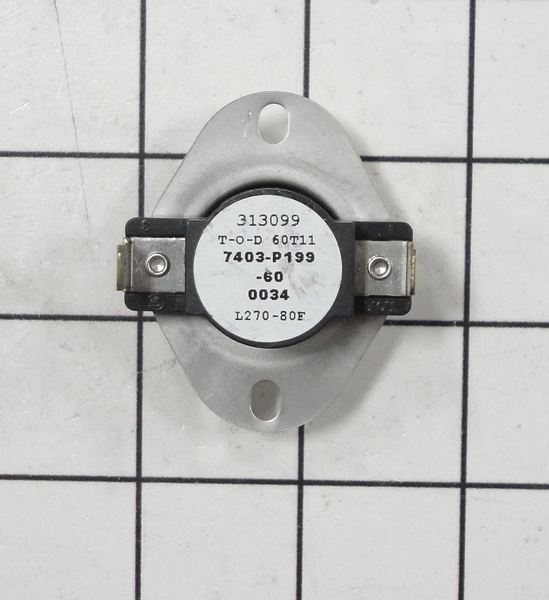

5 7403P199-60 7403P199-60 Switch, Hi Limit (Series: 1) $31.80
Special Order
6 4005F137-80 Cover, Catch Assy. (Series: 1) Call for Availability
7 4005F139-51 Cover, Switch (Series: 1) Call for Availability
8 4006W052-45 Vent Box Assy. (Series: 1) Call for Availability
9 7111P002-60 Clamp, Wire 3/4 (Series: 1) $4.40
Special Order
10 4001F059-51 Housing, Fan (Series: 1) Call for Availability
11 7403P089-60 Switch, Hi Limit (Series: 1) $31.80
Special Order
12 8008P014-60 Grommet, Nylon (Series: 1) $4.40
Special Order
W10127321 W10127321 Fan, Assembly (Series: 1) $224.10
Special Order
74001791 Connector, Pin (Series: 1) $4.40
Special Order
13 4005F262-51 Cover, Fan (Series: 1) $25.70
Special Order
14 3807F324-45 Support, Relay Board (Series: 1) Call for Availability
15 8004P022-60 Support, Relay Board (Series: 1) Call for Availability
16 8010P040-60 Spacer, Tubing (Series: 1) Call for Availability
17 WP7101P485-60 Screw, Base (Series: 1) $19.90
Special Order
18 7428P004-60 Relay, Board Assy. (Series: 1) Call for Availability
WP7428P009-60 Relay Board (Series: 18)   (Replaces: 7428P009-60) $77.20
Special Order
5170P064-60 Wire Harness (Series: 1) Call for Availability
74001791 Connector, Pin (Series: 1) $4.40
Special Order
19 7003P019-60 Insulation, Switch (upper) (Series: 1) Call for Availability
7003P039-60 Insulation, Switch (Series: 1) Call for Availability
7403P099-60 Switch, Ovn Lock Asy----na (Series: 1) Call for Availability
20 3807F422-45 Support, Door Lock Switch (Series: 25) Call for Availability
3807F193-45 Support, Lock Switch (Series: 1) Call for Availability
7101P031-60 Screw (Series: 1) Call for Availability
21 WP4159193 Screw (Series: 1) $2.40
 In-Stock
Retail: $2.25
8009P018-60 Lever, Door Lock (Series: 25) Call for Availability
8009P009-60 Lever, Door Lock (Series: 1) $17.80
Special Order
22 7116P003-60 Bolt (Series: 1) $0.30
Special Order
23 7807P004-60 Link, Switch (Series: 1) $10.70
Special Order
7807P012-60 Link, Door Lock (Series: 25) Call for Availability
24 7701P153-60 7701P153-60 Handle, Latch (wht) (Series: 1)
(Replaces: 7701P089-60) 		$39.70
Special Order
25 7112P112-60 7112P112-60 Clip, Latch Handle (Series: 1) $4.40
Special Order
26 8002P020-60 Catch Assy. (Series: 1) Call for Availability
27 3807F195-45 Support, Catch Assy. (Series: 1) Call for Availability
3807F408-45 Support, Catch Assy. (Series: 17) Call for Availability
NI 7401P016-60 Block, Terminal (Series: 1) $25.20
Special Order
7413A002-60 Fan, Resistor Asy (Series: 1) $12.70
Special Order
