Maytag A59F-5TXW-R Parts List

Search Model by Keyword(s):

Popular Searches: (Click to search)    assy  blk  block  bulb  button  clock  gasket  glass  grounding  hinge  inner  knob  metal  oven  screw  terminal  wire


Select a Diagram


01 - Body   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item # Part # Description Price / Availability Add to Cart
1 WP7101P126-60 WP7101P126-60 Screw (Series: 1) $4.80
Special Order
4009W030-80 Lining Assy, Inner Side (Series: 1) Call for Availability
4009W066-80 Lining,inner Side(l) (Series: 12) Call for Availability
WP4159193 Screw, Hinge (Series: 1) $2.50
Special Order
WP4159193 Screw (Series: 1) $2.50
Special Order
7103P040-60 Nut, Snap (wht) (Series: 1) $4.40
Special Order
7103P045-60 Nut, Nylon (Series: 1) $4.40
Special Order
2 WPW10245259 WPW10245259 Block, Wire Terminal (Series: 1)
(Replaces: 7401P039-60 7401P028-60) 		$21.30
 In-Stock
Retail: $20.75
3 3418A029-34 3418A029-34 Hinge Assy. (lt) (Series: 1) Call for Availability
3418A030-34 3418A030-34 Hinge Assy. (rt) (Series: 1) Call for Availability
4 WP4159193 Screw (Series: 1) $2.50
Special Order
5 8008P002-60 Grommet (Series: 1) $4.40
Special Order
6 WP7101P126-60 WP7101P126-60 Screw (Series: 1) $4.80
Special Order
4002F103-80 Back, Main (Series: 1) Call for Availability
7 12400018 Bracket, Cable Roller (Series: 1) Call for Availability
8 3605F148-80 Plate, Conduit (Series: 1) Call for Availability
9 4001F051-51 Housing,main Wire (Series: 1) Call for Availability
10 4005F157-80 Cover, Wire Housing (Series: 1) Call for Availability
11 4005F302-51 Cover Access (Series: 1) Call for Availability
12 3601F106-51 Baffle, Side Panel (Series: 1) Call for Availability
13 4005F163-51 Cover, Switch (Series: 1) Call for Availability
14 7103P007-60 Nut, Level (Series: 1) Call for Availability
15 7109P002-60 Washer (Series: 1) Call for Availability
3414F066-51 Tubing, Conduit (Series: 1) $8.80
Special Order
16 7417P005-60 Connector, Conduit (Series: 1) $4.40
Special Order
17 8018P002-60 Sleeve, Tube (Series: 1) Call for Availability
18 7112P019-60 7112P019-60 Clip, Hinge Pin (Series: 1) $4.40
Special Order

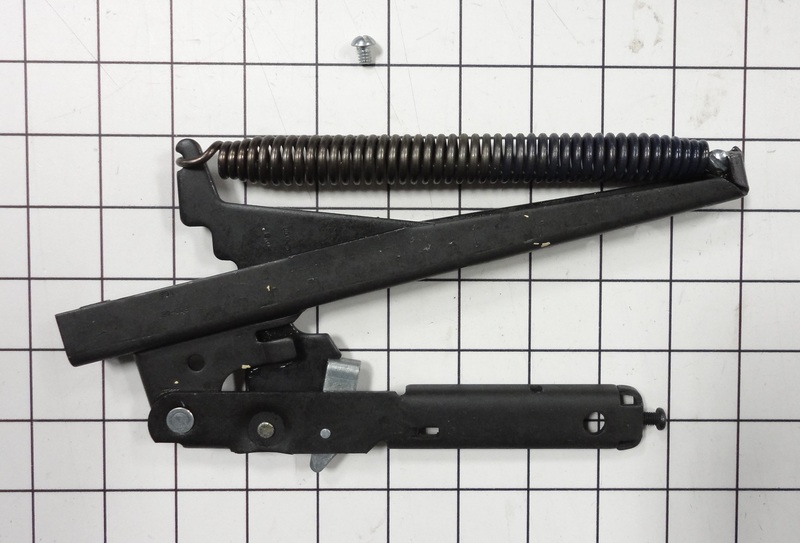

19 12500047 12500047 Hinge (incl. Spring) (Series: 12) $42.30
Special Order
7101P012-60 Screw (Series: 12) $4.40
Special Order
20 8019P001-60 Strap Cable (Series: 1) $12.30
Special Order
21 7803P031-60 Spring, Door (Series: 1) Call for Availability
22 04000040 Spring, Mini-stanley (Series: 12) Call for Availability

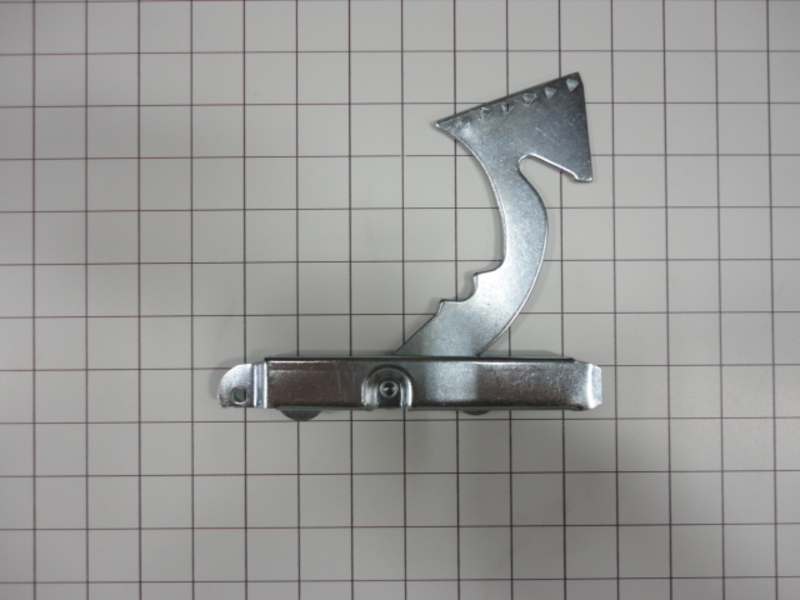

23 3420A034-34 3420A034-34 Stop Assy., Hinge (Series: 1) Call for Availability
24 7113P002-60 7113P002-60 Pin, Hinge (Series: 1) $5.90
Special Order
NI 7112P019-60 7112P019-60 Clip, Hinge Pin (Series: 1) $4.40
Special Order
