GE GSD3735F01WW Parts List

Popular Searches: (Click to search)    asm  baffle  basket  cap  corner  door  end  gasket  hose  inlet  lwr  mechanism  nut  rack  roller  silverware  slide  tub  valve  water


Select a Diagram

1 - Escutcheon & Door Assembly

2 - Body Parts

3 - Motor-pump Mechanism

Select Diagram ... 1 - Escutcheon & Door Assembly 2 - Body Parts 3 - Motor-pump Mechanism

1 - Escutcheon & Door Assembly   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	49-5917	Pm Manual Use & Care	Call for Availability
	31-30331	Pm Sheet Mini Manual	Call for Availability
	31-30576	Pm Instruction Install	Call for Availability
408	NLA ITEM	Screw 8-32x5/8	Call for Availability
710	WD01X10023	Insulation   (Replaces: WD01X10019)	$8.20 Special Order
711	WD31X10025	Panel Front Long Wh	$78.20 Special Order
715	WD2X433	Screw 8-18 Bt Tr 5/16 S	$10.50 Special Order
716	WD14X10009	Link Hinge Arm	$10.50  In-Stock Retail: $10.22
717	WD27X10254	Door Panel Cover Wh	$132.60 Special Order
756	WD27X10225	Panel Access Asm Wh (Replaces: WD27X10165 WD27X10065)	$42.70 Special Order
758	WD02X10054	Screw 8-32 X 5/16 Sph	$10.50 Special Order
759	WD27X10066	Panel Toe Kick Wh	$26.40 Special Order
775	WD02X10126	Scr 10-16 Hxw 3/8 S	$10.50 Special Order
801	WD14X10007	Arm Hinge Complete Lh	Call for Availability
	NLA ITEM	Arm Hinge Complete Rh	Call for Availability
802	WD13X10003	Latch Asm	$35.60  In-Stock Retail: $34.69
803	NLA ITEM	Switch Interlock Asm	Call for Availability
807	WD31X10004	Door Inner	$407.70 Special Order
810	WD02X10106	Scr 8-18 Ab Tr 7/8s	$10.50  In-Stock Retail: $10.22
811	WD35X10346	Rinse Aid Inj Asm (Replaces: WD12X398)	$42.40 Special Order
815	WD12X10026	Vent	$17.50 Special Order
817	WD1X550	Scr 8-32 Pnt 1/2 S	$10.50 Special Order
	WD02X10141	Scr 10-32 T Hex .7 S	$10.50 Special Order
818	NLA ITEM	Bearing Hinge Arm	Call for Availability
822	WD16X297	Cover Detergent Cup	$10.50  In-Stock Retail: $10.22
823	WD16X313	Shaft/handle Det Cup	$21.70  In-Stock Retail: $21.17
827	NLA ITEM	Scr 10-12x1/2 Ac Pnr S	Call for Availability
828	WD16X10011	Latch Detergent Cup (Replaces: WD16X10005)	$15.20  In-Stock Retail: $14.81
829	WD12X10284	Indicator Asm Jet Dry   (Replaces: WD12X409 WD12X10037)	$21.50  In-Stock Retail: $20.96
837	NLA ITEM	Spring Timer Lever	Call for Availability
840	WD3X764	Detergent Trip Spring	$37.30 Special Order
843	WD08X10057	Gasket Door	$81.20  In-Stock Retail: $118.80
845	WD08X10015	Gasket Insert	$19.90 Special Order
850	NLA ITEM	Drip Shield	Call for Availability
853	NLA ITEM	Cam Timer	Call for Availability
861	WD12X324	Detergent Timer Lever	$10.90 Special Order
896	WD31X10141	Shield Timer	$16.00 Special Order
901	NLA ITEM	Panel Control Wh	Call for Availability
	WD34X10429	Panel Control & Insert	Call for Availability
902	WD34X10430	Insert Control Asm	Call for Availability

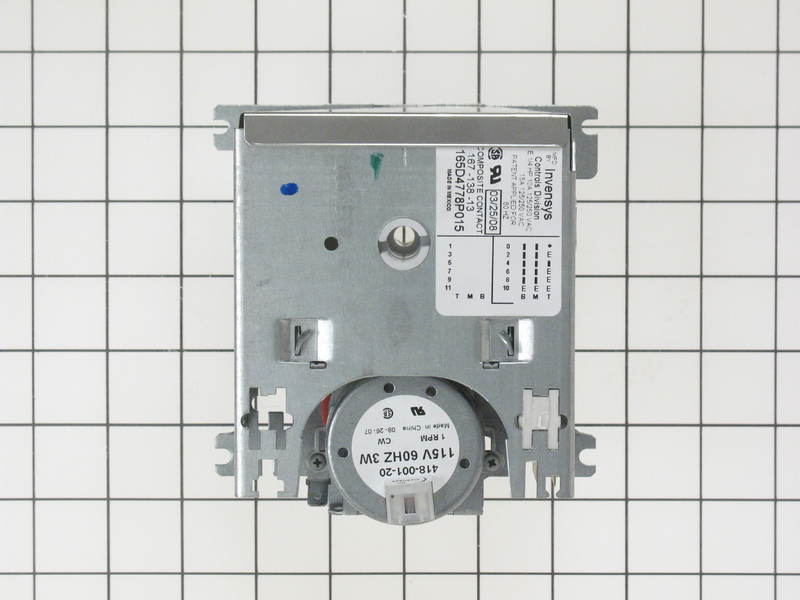

904	WD21X10078	Timer	$90.00 Special Order
906	WD21X10182	Switch Pushbutton	$116.20 Special Order
910	NLA ITEM	Knob Timer Wh	Call for Availability
915	WD1X1432	Housing Terminal (black)	Call for Availability
925	WD06X10004	Light Pilot Asm	$71.60 Special Order
926	WD1X1443	Lens	$20.50 Special Order
933	WD12X433	Cover Insulating Sw	$13.80 Special Order
935	WD1X1434	Terminal Special	$2.50 Special Order
943	WZ05X0219	Screw Escutcheon	Call for Availability

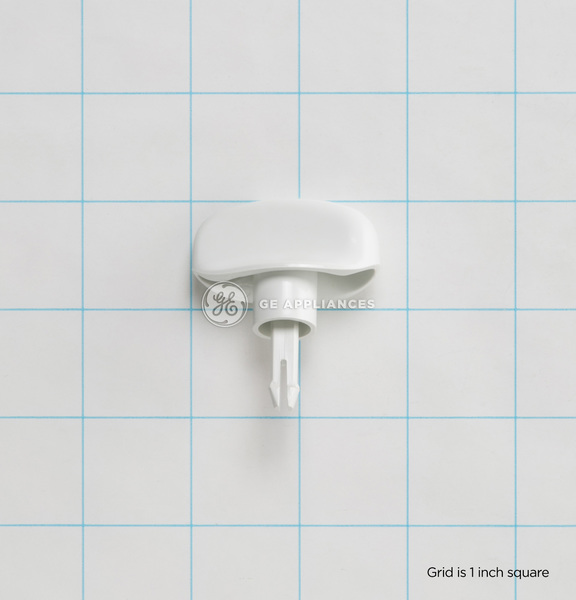

970	WD9X352	Knob Latch Handle Wh	$15.20 Special Order
971	WZ02X0045	Screw Latch Knob	Call for Availability
