GE EER3000K02TW Parts List

Search Model by Keyword(s):

Popular Searches: (Click to search)    1500w  1900w  2100w  73"  asm  bake  broil  bulb  cntl  deluxe  gasket  inf  leg  lens  leveler  light  oven  ovn  std  unit


Select a Diagram

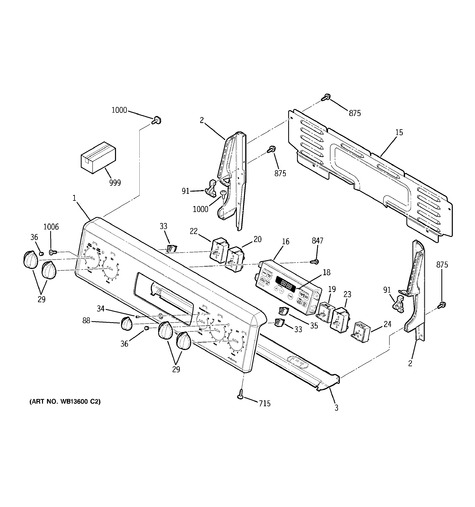

1 - Control Panel   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item # Part # Description Price / Availability Add to Cart
1 WB36T10859 Trim & Bracket Asm $91.10
Special Order
2 WB36T10248 End Cap Left/white $16.60
Special Order
WB36T10247 End Cap Rt/white $15.00
Special Order
3 WB02T10306 Shield Heat (bkgd) $19.60
Special Order
15 WB34T10088 Cover Control $20.40
Special Order
16 WB27X45466 Control Oven To-9   (Replaces: WB27T10467) $185.30
 In-Stock
Retail: $180.72
18 WB27T10677 WB27T10677 Faceplate Graphics $164.60
Special Order
19 WB24T10153 WB24T10153 Switch Inf Cntl
(Replaces: WB27T10384)
$105.40
Special Order
20 WB24T10011 WB24T10011 Inf Sw Cntl 1500w $88.70
Special Order
22 WB24T10027 WB24T10027 Inf Sw Cntl 2100w $106.20
 In-Stock
Retail: $126.77
23 WB24T10029 WB24T10029 Inf Sw Cntl 1500w $35.80
 In-Stock
Retail: $59.69
24 WB24T10058 WB24T10058 Inf Sw Cntl $109.70
 In-Stock
Retail: $106.95
29 WB03T10207 WB03T10207 Knob Wh $26.80
Special Order
33 WB27T10668 WB27T10668 Light Indicator Maintop $13.40
 In-Stock
Retail: $13.06
WB27T10626 WB27T10626 Light Indicator Pilot $10.50
 In-Stock
Retail: $10.22
34 WB25T10042 WB25T10042 Lens $10.50
Special Order
35 WB27T10627 WB27T10627 Light Indicator Pilot $10.50
Special Order
36 WB25T10041 WB25T10041 Lens $10.50
 In-Stock
Retail: $10.22
88 WB03T10208 WB03T10208 Knob Ge Su Wh $6.20
Special Order
91 NLA ITEM Maintop Hinge Call for Availability
715 WD2X433 WD2X433 Screw 8-18 Bt Tr 5/16 S $10.50
Special Order
847 WB1X1118 WB1X1118 Screw $10.50
Special Order
875 WZ4X245D WZ4X245D Scr 8-18 Ab Hw 9/16 Blk $25.30
Special Order
WH2X930 WH2X930 Screw 8-18 Ab Hxw 3/8 $10.50
Special Order
999 31-10617 Instruction Install Call for Availability
31-14395 Manual Mini & Wd Asm Call for Availability
49-80365 Manual Use & Care Call for Availability
31-10620 Instruction Install Call for Availability
WX10X300 WX10X300 Glass Cleaner $20.50
Special Order
1000 WB01T10016 WB01T10016 Scr 8-18 Ab Hxw 5/8 S $10.50
Special Order
1006 WB01X23501 WB01X23501 Scr 8-32 Tpt Flr .215 Sn $10.50
Special Order
