Maytag A31713XAAL Parts List

Popular Searches: (Click to search)    4+0  baffle  blk  bulb  burner  door  grate  igniter  module  oven  seal  sealed  spark  switch  top


Select a Diagram

01 - Body

02 - Control Panel

03 - Door/drawer

04 - Gas Controls

05 - Oven/base

06 - Top Assembly

07 - Wiring Information

Select Diagram ... 01 - Body 02 - Control Panel 03 - Door/drawer 04 - Gas Controls 05 - Oven/base 06 - Top Assembly 07 - Wiring Information

06 - Top Assembly   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	74002441	Top, Main (alm) (Series: 10)	Call for Availability
2	8016P015-60	Glide (Series: 10)	$4.40 Special Order
3	74004827	Clip, Top Locking (Series: 10)	$4.40 Special Order
4	W11400301	Grate (blk) (Series: 20) (Replaces: 2003X031-00 7518P467-60 74001653)	$94.60 Special Order
	WP7518P464-60	Grate (blk) (Series: 13)   (Replaces: 2003X038-00 74001059)	$120.00 Special Order
	W11400301	Grate (blk) (Series: 10)	$94.60 Special Order
5	2616F128-09	Panel, Manifold (blk) (Series: 10)	$31.80 Special Order
	71001403	Washer (Series: 10)	$4.40 Special Order
	WP7101P338-60	Screw (8bx3/8-ni) (Series: 10)   (Replaces: 7101P338-60)	$4.40 Special Order
	WPW10068250	Screw (Series: 10) (Replaces: 7101P074-60)	$2.50 Special Order

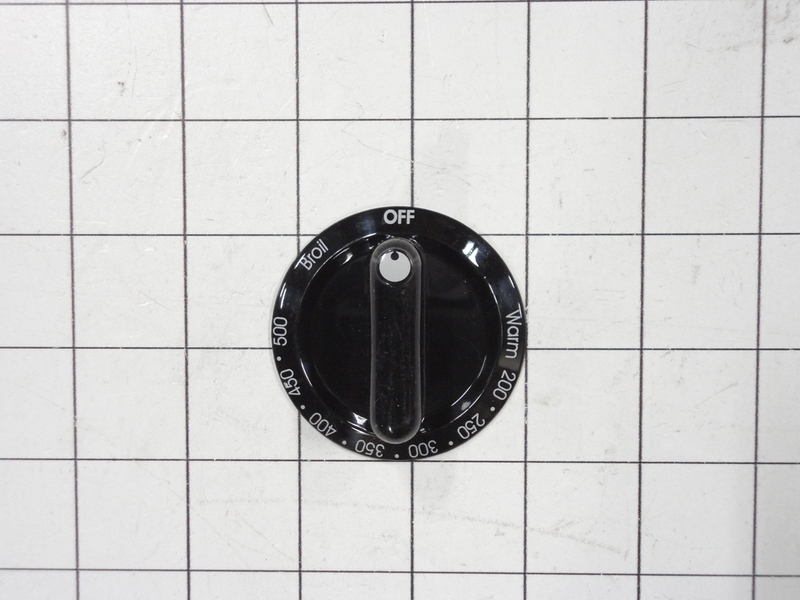

6	74010444	Knob, Thermostat (blk) (Series: 10) (Replaces: 7731P096-60)	$21.40  In-Stock Retail: $20.84
7	74002744	Knob, Valve (blk) (Series: 10)	$25.20 Special Order
8	74002447	Shield, Sight (Series: 10)	$1.20 Special Order
	W11233072	Screw (8ab1/2-ni) (Series: 10)	$8.70  In-Stock Retail: $8.47
9	WP7725P021-60	Drip Bowl Kit (accessory) (Series: 10)   (Replaces: 7725P021-60 5401A452-60)	Call for Availability
