Whirlpool IK8TXCWFXW00 Parts List

Popular Searches: (Click to search)    access  adaptive  brush  control  customer  defrost  drier  evaporator  fan  grease  kit  material  motor  service  silicone  touch  trim  valve  washer  white


Select a Diagram

01 - Cabinet Part

02 - Door Parts

03 - Liner Parts

04 - Unit Parts

05 - Shelf Parts

06 - Optional Parts

Select Diagram ... 01 - Cabinet Part 02 - Door Parts 03 - Liner Parts 04 - Unit Parts 05 - Shelf Parts 06 - Optional Parts

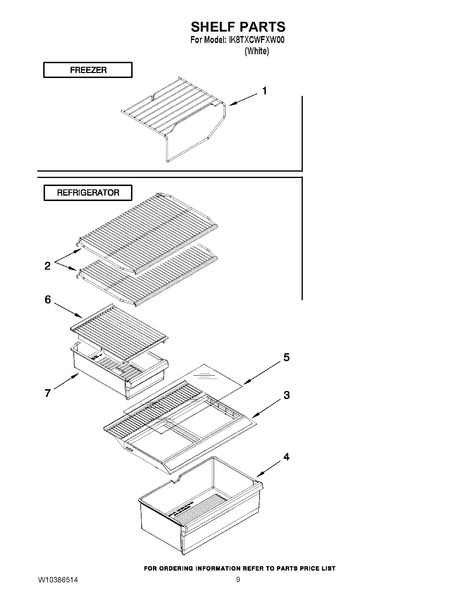

05 - Shelf Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	WPW10401596	Shelf, Freezer   (Replaces: W10142524)	$55.50 Special Order
2	W11181679	Shelf	$151.00  In-Stock Retail: $147.29
3	W11595196	Crisper Cover   (Replaces: WP2192250 2192250)	$37.80  In-Stock Retail: $36.79
4	WP2192009	Crisper Pan   (Replaces: 2192009)	$99.80  In-Stock Retail: $97.35
5	WP2210047	Glass, Cover   (Replaces: 2210047)	$139.50 Special Order
6	WP9790379	Holder, Meat Pan   (Replaces: 9790379)	$72.10 Special Order
7	WP2183273	Meat Pan   (Replaces: 2183273)	Call for Availability
