Whirlpool CAW12444XW0 Parts List

Popular Searches: (Click to search)    actuator  assembly  belt  capacitor  drain  drive  hoses  latch  lid  lock  motor  paint  pressurized  pulley  pump  run  shift  spray  touch  white


Select a Diagram

01 - Top And Cabinet Parts

02 - Console And Water Inlet Parts

03 - Basket And Tub Parts

04 - Gearcase, Motor And Pump Parts

05 - Optional Parts (not Included)

Select Diagram ... 01 - Top And Cabinet Parts 02 - Console And Water Inlet Parts 03 - Basket And Tub Parts 04 - Gearcase, Motor And Pump Parts 05 - Optional Parts (not Included)

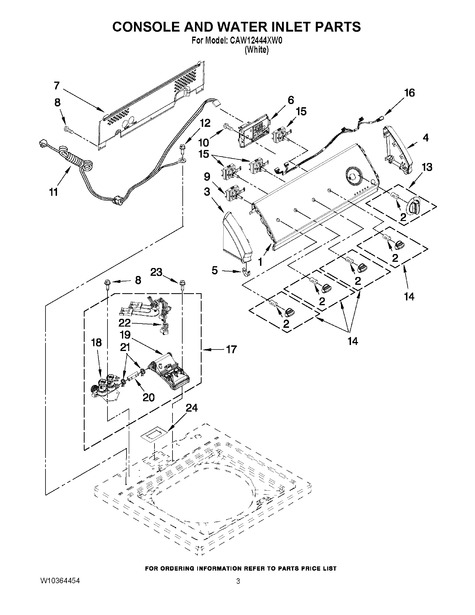

02 - Console And Water Inlet Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	W10317198	Panel, Console	$49.20 Special Order
2	WP8536939	Clip, Knob (Replaces: 8536939)	$4.80  In-Stock Retail: $4.59
3	WP8559502	Cap, End (l.h.) (includes Item 5)	$45.90 Special Order
4	WP8559501	Cap, End (r.h.) (includes Item 5)   (Replaces: 8559501)	$45.80 Special Order
5	WP8312709	Clip, Console   (Replaces: 8312709)	$12.50  In-Stock Retail: $12.12
6	W10394284	Control Unit Assembly, Machine & Motor	$347.10 Special Order
7	WPW10420985	Panel, Console Rear Cover	$151.90 Special Order
8	WP489069	Screw, 8-18 X 3/8	$4.80 Special Order
9	WPW10285512	Switch, Rotary Encoder   (Replaces: W10285512)	$113.00  In-Stock Retail: $110.22
10	WP90767	Screw, 8-18 X 3/8   (Replaces: 90767)	$4.80  In-Stock Retail: $4.59
11	WPW10525194	Cord, Power	$92.80 Special Order
12	W10846509	Screw, Power Cord Ground	$4.80 Special Order
13	W10317457	Knob, Timer	$38.40 Special Order
14	W10317458	Knob, Control	$36.90 Special Order
15	WPW10285511	Switch, Rotary Encoder (Replaces: W10285511)	$111.40 Special Order
16	WPW10291176	Harness, Upper	$115.10 Special Order
17	WPW10432353	Inlet Assembly, Water	$162.70  In-Stock Retail: $158.65
18	WPW10356257	Valve, Water Mixing (Replaces: W10337338)	$134.00  In-Stock Retail: $130.69
19	WPW10441423	Vacuum Break	$54.90 Special Order
20	W10238347	Hose, Vacuum Break	$16.70 Special Order
21	WP596669	Clamp, Hose	$4.80  In-Stock Retail: $4.59
22	WPW10344775	Harness, Valve	$113.90 Special Order
23	WP8281163	Screw, 8-16 X 1/2 (Replaces: 8281163)	$6.70  In-Stock Retail: $6.50
24	W10240973	Foam, Ivvb	$4.50 Special Order
