Whirlpool GI7FVCXXY01 Parts List

Popular Searches: (Click to search)    and  board  compressor  door  drain  drier  emitter  filter  gear  grease  ice  includes  items  left  motor  right  silicone  tube  valve  water


Select a Diagram

01 - Cabinet Parts

02 - Freezer Liner Parts

03 - Refrigerator Liner Parts

04 - Refrigerator Door Parts

05 - Unit Parts

06 - Shelf Parts

07 - Motor And Ice Container Parts

08 - Icemaker Parts

09 - Dispenser Front Parts

10 - Freezer Door Parts

11 - Optional Parts (not Included)

Select Diagram ... 01 - Cabinet Parts 02 - Freezer Liner Parts 03 - Refrigerator Liner Parts 04 - Refrigerator Door Parts 05 - Unit Parts 06 - Shelf Parts 07 - Motor And Ice Container Parts 08 - Icemaker Parts 09 - Dispenser Front Parts 10 - Freezer Door Parts 11 - Optional Parts (not Included)

09 - Dispenser Front Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	N/P	Housing, Dispenser (not Serviced)	Call for Availability
2	W10291951	Ui Assembly (satina)	$508.60 Special Order
	W10291949	Ui Assembly (black)	$508.30 Special Order
	W10291950	Ui Assembly (stainless)	$510.60 Special Order
	W10291948	Ui Assembly (white)	$508.60 Special Order
3	W11045975	False, Wall, Dispenser (white)	$24.90 Special Order
	W10268793	False Wall, Dispenser (satina)	$33.40 Special Order
	W10305890	False Wall, Dispenser (stainless)	$56.70 Special Order
	W11045976	False, Wall, Dispenser (black)	$26.70 Special Order
4	W10368729	Pad, Ice (black)	$205.10 Special Order
	WPW10368730	Pad, Ice (nickel)	$205.00 Special Order
	W10368728	Pad, Ice (white)	$58.40 Special Order
5	WPW10368730	Pad, Water (nickel)	$205.00 Special Order
	W10368729	Pad, Water (black)	$205.10 Special Order
	W10307621	Pad, Water (white)	$133.20 Special Order

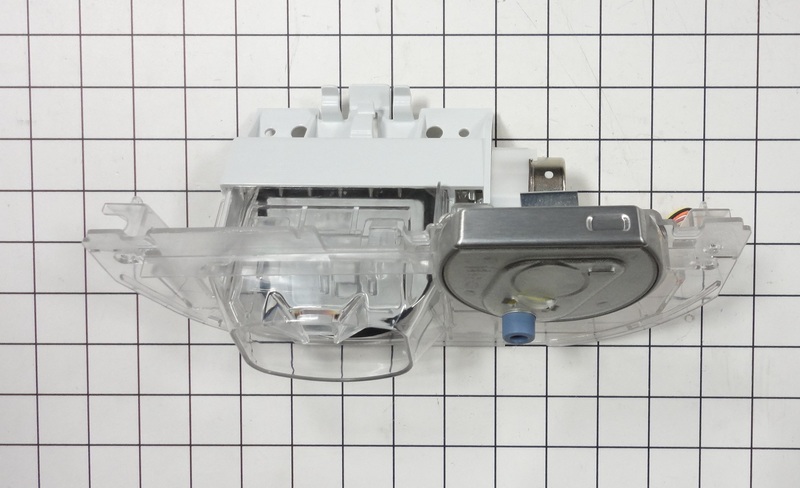

6	WPW10353562	Separator Assembly (stainless)	$112.60 Special Order

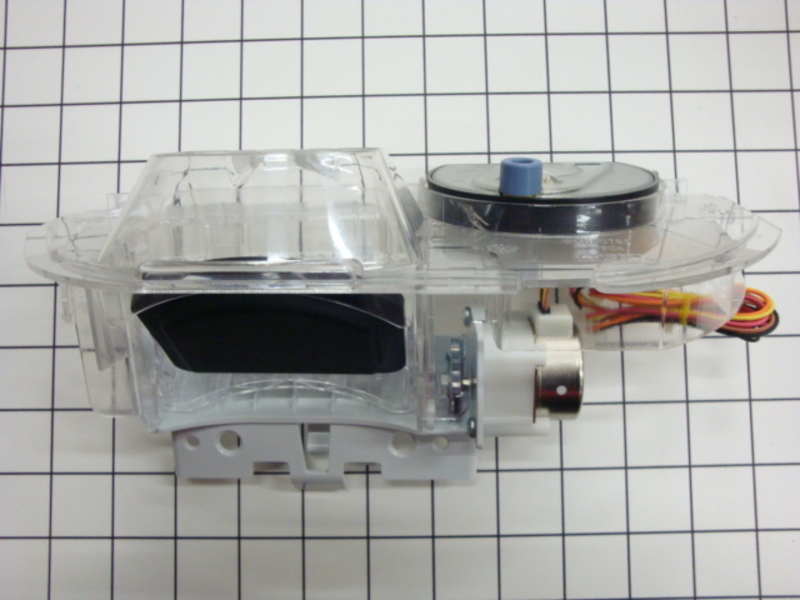

	W10353556	Separator Assembly (black)	$98.10 Special Order
	W10180830	Separator Assembly (white)	Call for Availability
	W10353561	Separator Assembly (satina)	$97.90 Special Order
7	W11227371	Spigot   (Replaces: 2316647)	$82.50 Special Order
8	W10174827	Bracket, Ice Door	$50.80 Special Order
9	WPW10205979	Motor, Ice Door (Replaces: W10205979)	$69.10  In-Stock Retail: $67.36
10	W10499850	Support, Ice Door	$69.60 Special Order
11	W10346235	Door, Ice (Replaces: W10174811)	$113.20 Special Order
12	W10499850	Guide, Ice	$69.60 Special Order
13	WP4449745	Screw	$4.80 Special Order
14	W10267866	Tray, Dispenser (satina)	$28.60 Special Order
	W11045971	Tray, Dispenser (black)	$40.10 Special Order
	W11045970	Tray, Dispenser (white)	$40.10  In-Stock Retail: $39.07

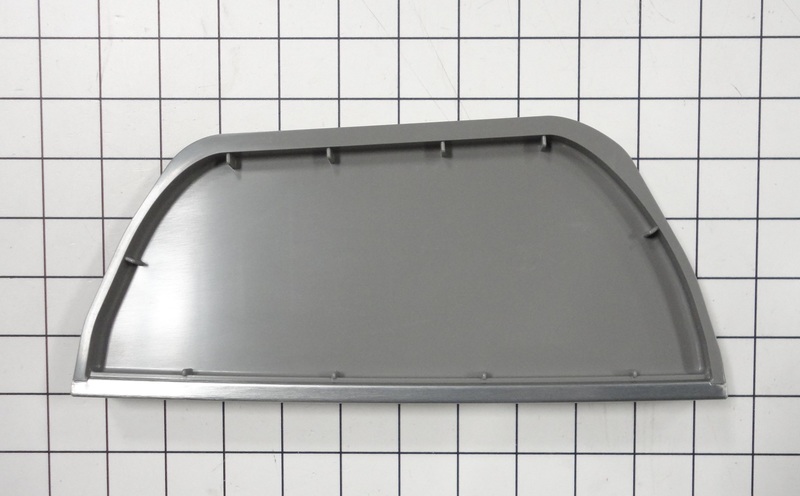

	WPW10305897	Tray, Dispenser (stainless)	$49.10 Special Order
15	WPW10267863	Slide, Tray Dispenser (apollo Grey)	$46.10 Special Order
	W10267860	Slide, Tray Dispenser (white)	$46.80 Special Order
	W10267861	Slide Tray, Dispenser (black)	$46.90  In-Stock Retail: $45.70
16	W10314372	Tube, Water (dispenser)	$45.20 Special Order
17	W11290115	Led (Replaces: W10238083)	$54.20 Special Order
18	W10193350	Harness, Jumper	$54.10 Special Order
