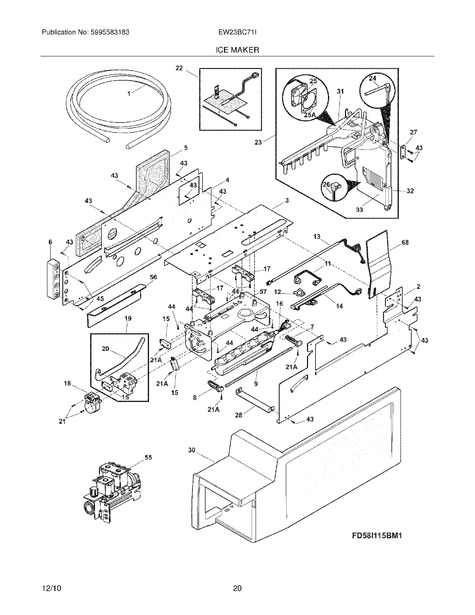

17 - Ice Maker   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	218976426	Tube-water Inlet,59.00`` ,yellow	$7.80  In-Stock Retail: $9.97
2	241937302	Frame-icemaker,rh	Call for Availability
3	241828501	Frame-icemaker,top	Call for Availability
4	241937502	Frame-icemaker,lh	Call for Availability
5	241870701	Duct-air	$57.40 Special Order
6	241954001	Spacer,icemaker	Call for Availability
7	241939001	Bracket,ice Tray	$30.80 Special Order
8	241827701	Bracket,ice Tray	$34.30 Special Order
9	241841701	Shaft,motor ,icemaker	$70.90 Special Order
F11	241983101	Bimetal-heater,harvest	$184.80 Special Order
12	241997601	Clamp,strain Relief	Call for Availability
F13	241921501	Harness-wiring,ice Maker	$159.20  In-Stock Retail: $155.25

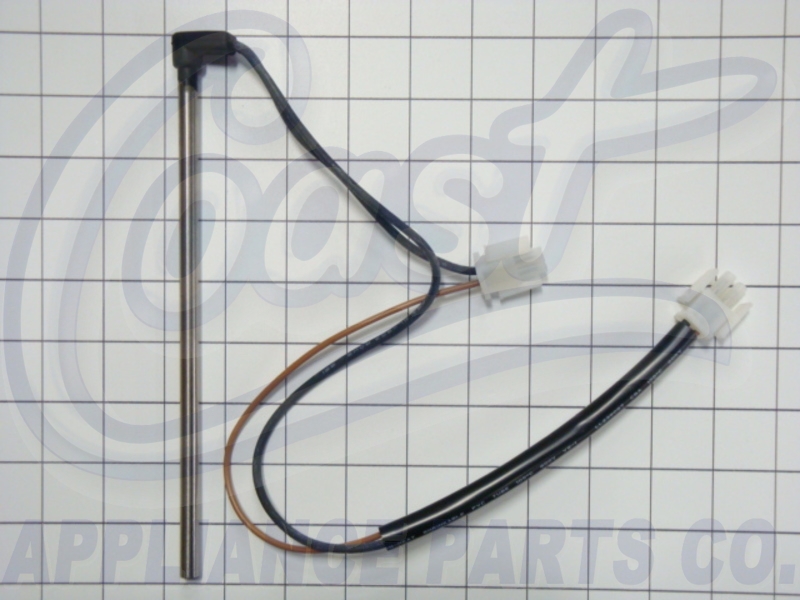

14	241983201	Heater,harvest ,115 V	$174.20 Special Order
F15	241870101	Switch	$94.80 Special Order
16	242043902	Tray-ice	$235.30  In-Stock Retail: $229.49
17	241828101	Bracket-evap Coil	Call for Availability
F18	241817701	Motor-ice Maker	$70.70  In-Stock Retail: $68.94
19	241939901	Shut-off Arm Assembly	Call for Availability
20	241839501	Shut-off Arm	$17.30 Special Order
21	242024101	Screw	$1.20 Special Order
21A	242024401	Screw	Call for Availability
F22	5303918416	Thermistor Kit,t-3 Suction Lin ,icemaker	$70.80 Special Order
23	5303918407	Evaporator Kit,ice Maker	$618.10 Special Order
F24	241962501	Heater-defrost,icemaker	$179.40 Special Order
25A	241962301	Gasket-evap Fan,icemaker	Call for Availability
F25	241870801	Fan	$116.50  In-Stock Retail: $113.60
26	241962601	Thermistor	$140.20 Special Order
27	241963401	Gasket,ice Maker	Call for Availability
28	241828701	Brace,icemaker ,front	$16.40 Special Order
30	242016103	Cover,icmkr & Bucket	$214.50 Special Order
31	241925102	Shroud-evap Fan Mtg,ice Maker	Call for Availability
32	241925201	Cover,rear ,i/mk Evaporator	Call for Availability
33	241924701	Cover,front ,i/mk Evaporator	Call for Availability
43	218359202	Screw,pan Head ,8-32 X 0.250	$7.70  In-Stock Retail: $7.49
44	241870406	Screw	$3.30 Special Order
45	241641501	Screw	$6.20 Special Order
F55	242252702	Valve-water,triple Solenoid (Replaces: 241734302 241734301)	$87.50  In-Stock Retail: $87.49
56	241865501	Rail,ice Maker ,rh ,vertical	Call for Availability
57	241816901	Bracket,evap Assembly	$103.30 Special Order
68	241969702	Deflector-water	Call for Availability
FNI	5303918446	Heat Exchanger,icemaker	$283.50 Special Order
NI	241820701	Harness-wiring,icmkr	$91.00 Special Order
	240545201	Connector-water,straight (Replaces: 240352102)	$53.30 Special Order
	240396801	Clamp,tube/wiring ,nylon ,black/natural	$13.90 Special Order
	241641502	Screw	$6.00 Special Order
	242015401	Screw,8-18b X 0.500	$3.00 Special Order
	5303918467	Heater Kit, Eev	$62.10 Special Order
	240363602	Screw-shoulder	$9.30 Special Order
	241920101	Tube-water Inlet,green ,valve To I.m.	$33.80 Special Order
	241964701	Tube-water Inlet,green ,valve To I.m.	$32.90 Special Order
	241965901	Tube-water,formed ,64.86``	$23.50 Special Order
	241870304	Screw	Call for Availability
	218709101	Screw,hex Head ,10-32 X 0.500	$4.70 Special Order
	218976425	Tube-water Inlet,51.00`` ,brown/tan	$71.50 Special Order
