Frigidaire FFGF3013LWD Parts List

Popular Searches: (Click to search)    assy  burner  door  front  harness  holder  ignitor  kit  left  module  mtg  orifice  oven  probe  screw  spark  temp  top  tube  valve


Select a Diagram

03 - Backguard

05 - Burner

07 - Body

09 - Top/drawer

11 - Door

01 - Cover

Select Diagram ... 03 - Backguard 05 - Burner 07 - Body 09 - Top/drawer 11 - Door 01 - Cover

09 - Top/drawer   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	316110201	Carriage,low Broil	$170.20 Special Order
2	316236401	Liner,low Broil	$87.20 Special Order
2A	316541500	Shield,broiler	$44.60  In-Stock Retail: $43.49
4	316231241	Panel-drawer,white   (Replaces: 316231211)	$61.00 Special Order
5	316129100	Fastener,push-in Nut ,nylon ,spacer	$7.70 Special Order
9	316081902	Pan,broiler ,slate Blue	$56.40  In-Stock Retail: $54.99
10	316082002	Insert,broiler Pan ,slate Blue	$54.90  In-Stock Retail: $53.49
13	316111503	Glide,low Broil ,outer/rh & Lh ,(2)	$20.50 Special Order
13A	316534200	Glide-low Broil, Inner	$31.30 Special Order
16	316202368	Main Top,white	$145.90 Special Order

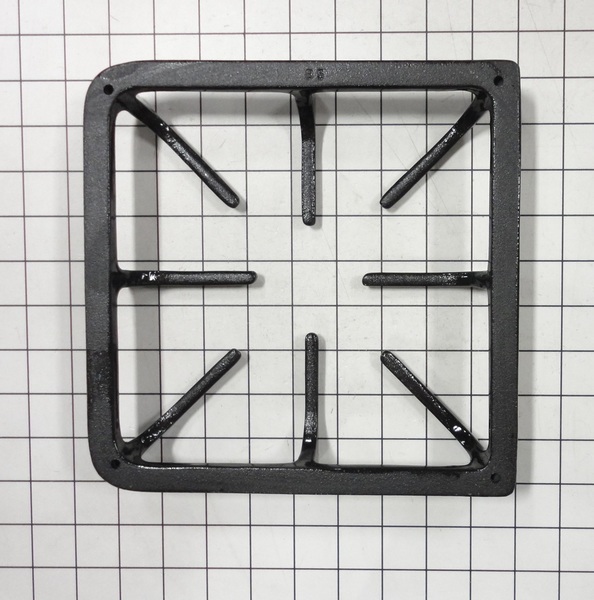

F20	316463200	Grate,gloss Black ,(4)	$60.70  In-Stock Retail: $90.99
22C	316261800	Cap,9.5k Burner ,black ,(3)	$29.80  In-Stock Retail: $28.99
39	316019511	Handle,drawer ,white	$79.50 Special Order
85	316115600	Rack-low Broil	Call for Availability
NI	316021109	Screw,hex Head Cup Pt ,8-18 X 0.375 ,black (Replaces: 316021105)	$10.30 Special Order
	316021109	Screw,8-18 X 0.5 ,black (Replaces: 316021110)	$10.30 Special Order
	316021120	Screw,shoulder Head ,8-18 X 5/8 ,(2) ,square Drive	$9.30 Special Order
	316089500	Screw, 10-16 X .486	$9.80 Special Order
	316021108	Screw,cup Pt ,8-18 X 0.375 ,chrome	$1.60 Special Order
