01 - Top And Console Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	W10255469	Installation, Instruction	Call for Availability
	W10224575	Use & Care Guide	Call for Availability
	W10258369	Tech Sheet	Call for Availability
2	3980634	Top (white)	$27.80 Special Order
	W10114785	Top (silver)	$32.30 Special Order
3	W10111064	Harness, Main	$158.60 Special Order

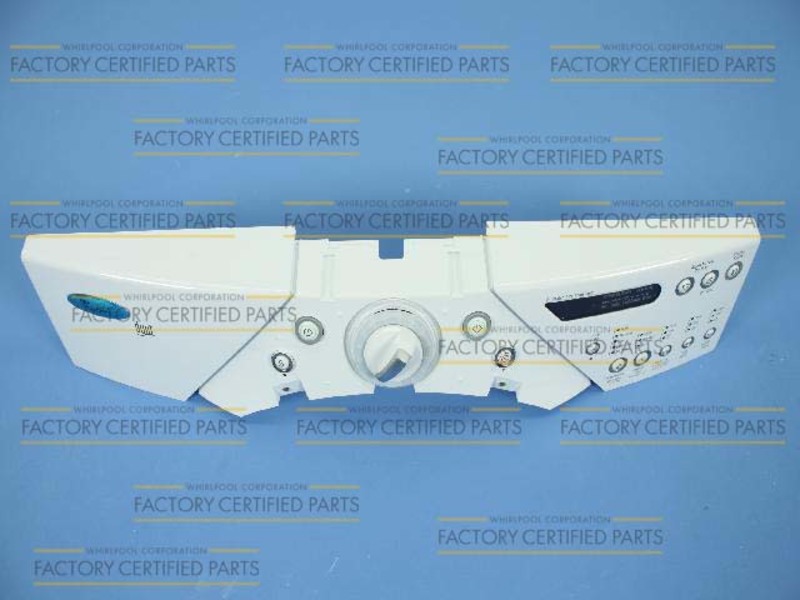

4	W10246730	Panel, Console (includes Items: 20,21,22,27,28 & 32) (white)	$268.20 Special Order
	W10246729	Panel, Console (includes Items: 20,21,22,27,28 & 32) (silver)	$366.30 Special Order
5	WP3394427	Clip, Harness	$4.80 Special Order
6	W10215656	Bracket, Console (includes No.12)	$62.10 Special Order
7	353424	Connector, Sensor	$13.70 Special Order
8	WP94614	Terminal	$4.80 Special Order
9	3936144	Plug, Terminal	$13.70 Special Order
10	WP596797	Terminal	$4.80 Special Order
11	WP488729	Screw, 8-18 X 1/2	$4.80  In-Stock Retail: $4.59
12	W10112267	Foam-seal	$58.10 Special Order
13	W10012480	Array-power	$10.50 Special Order
14	3936150	Connector, 7-circuit	$54.00 Special Order
15	3395683	Connector (motor)	$33.80 Special Order
16	303776	Screw, 8-32 X 1/32	$6.80 Special Order
17	2203186	Connector, 5-circuit	$7.90 Special Order

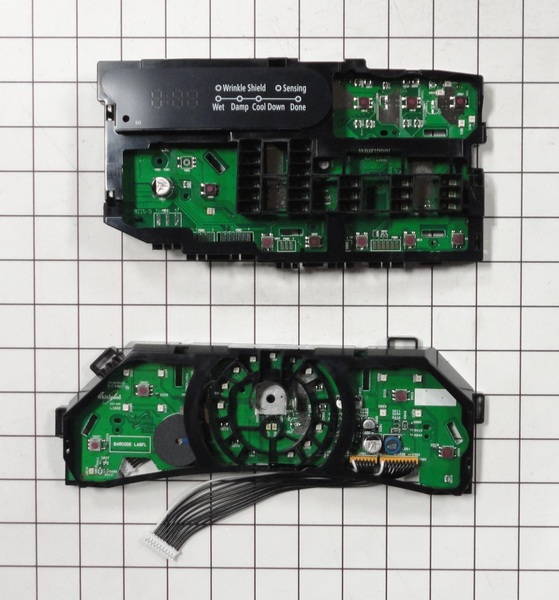

18	W10294634	User Interface (right)	$285.80 Special Order
19	W10121375	User Interface (center) (includes: Illus. 13)   (Replaces: W10171537 W10121375)	$210.70 Special Order
20	W10012430	Encoder-wheel	$12.40 Special Order
21	WPW10012440	Retainer-snap	$9.90 Special Order
22	W10012410	Knob, Light Ring (includes: Item 21)	$17.10 Special Order
23	280230	Rast, Wheel Holder (service Only With Item. 28 )	$98.80 Special Order
24	280230	Detent Wheel (service Only With Item. 28)	$98.80 Special Order
25	W10242906	Harness, Communication	$105.70 Special Order
26	280230	Knob, Spring (2) (service Only With Item 28)	$98.80 Special Order
27	W10116702	Knob, Control (includes: Item. 21) (white)	$18.90 Special Order
	W10116704	Knob, Control (includes: Item. 21) (ultimate Silver)	$28.10 Special Order
28	280230	Encoder, Wheel Kit (includes Items: 23, 24, & 26)	$98.80 Special Order
29	WP693995	Screw, Ground   (Replaces: 693995)	$4.80 Special Order
30	W10112268	Clip-harness (4)	$8.40 Special Order
31	WP3391018	Tie, Cable	$20.50 Special Order
32	W10117943	Badge	$11.80 Special Order
