Whirlpool YISE630VS11 Parts List

Popular Searches: (Click to search)    12oz  6``  8``  biscuit  black  bulb  door  element  hinge  infinite  oven  paint  pressurized  seal  sensor  spray  superior  switch  touch  white


Select a Diagram

01 - Cooktop Parts

02 - Control Panel Parts

03 - Chassis Parts

04 - Drawer And Rack Parts

05 - Door Parts, Optional Parts (not Included)

Select Diagram ... 01 - Cooktop Parts 02 - Control Panel Parts 03 - Chassis Parts 04 - Drawer And Rack Parts 05 - Door Parts, Optional Parts (not Included)

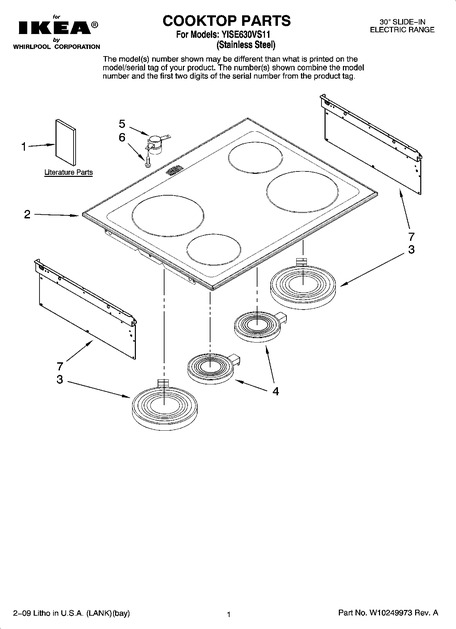

01 - Cooktop Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	W10184782	Use & Care Guide	Call for Availability
	W10190681	Wiring Diagram (english)	Call for Availability
	W10190682	Wiring Diagram (french)	Call for Availability
	W10203466	Installation Instructions	Call for Availability
	9762761	Brochure, Tips Safe Cooking (english)	Call for Availability
	W10065852	Brochure, Tips Safe Cooking (french)	Call for Availability
2	W10283756	Cooktop	$476.10 Special Order
3	W10823696	Element Rf/lr (2500w)	$208.20  In-Stock Retail: $203.10
4	W10823711	Element Lf/rr (1200w) (Replaces: 12002141 74008568)	$208.20  In-Stock Retail: $203.10
5	74005759	Tube, Vent Upper	$24.40 Special Order
6	WP7101P498-60	Screw (4)	$4.80 Special Order
7	2618F201-51	Panel, Sheild (left)	$29.40 Special Order
	2618F206-51	Panel, Sheild (right)	$88.80 Special Order
