Whirlpool YGY396LXPB03 Parts List

Popular Searches: (Click to search)    bake  black  blower  conventional  door  element  hinge  left  oven  paint  pressurized  right  screw  sealer  sensor  silastic  spray  thermostat  touch  white


Select a Diagram

01 - Cooktop Parts

02 - Control Panel Parts

03 - Oven Parts

04 - Door Parts

05 - Drawer Parts

06 - Top Venting Parts, Optional Parts (not Included)

Select Diagram ... 01 - Cooktop Parts 02 - Control Panel Parts 03 - Oven Parts 04 - Door Parts 05 - Drawer Parts 06 - Top Venting Parts, Optional Parts (not Included)

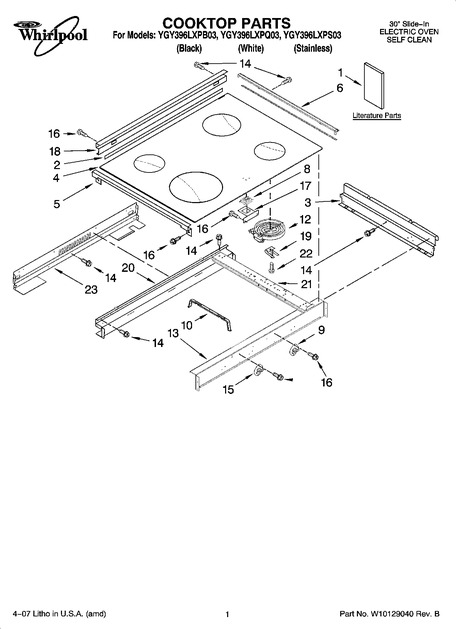

01 - Cooktop Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	9759133	Safe Cooking Tips (french)	Call for Availability
	9762035	Installation Instructions	Call for Availability
	9762257	Use & Care Guide (english)	Call for Availability
	9762259	Use & Care Guide (french)	Call for Availability
	9761388	Tech Sheet	Call for Availability
	9757680	Anti-tip Instructions	Call for Availability
	3191638	Safe Cooking Tips (english)	Call for Availability
2	9756450	Gasket	$95.80 Special Order
3	4454023	Bracket, Mounting	$55.50 Special Order
4	WPW10539072	Cooktop (black)	$284.30 Special Order
	9756788WH	Cooktop (white)	$246.10 Special Order
5	4453764	Clip, Ceran (2)	Call for Availability
6	9759530SS	Trim, Cooktop Right (stainless)	$27.10 Special Order
	9759530BL	Trim, Cooktop Right (black)	$27.40 Special Order
	9759530WH	Trim, Cooktop Right (white)	$27.10 Special Order
	9759531SS	Trim, Cooktop Left (stainless)	$26.60 Special Order
	9759531WH	Trim, Cooktop Left (white)	$27.10 Special Order
	9759531BL	Trim, Cooktop Left (black)	$27.40  In-Stock Retail: $26.71
8	8523739	Light, Indicator	$110.60 Special Order
9	WP9759944	Thermostat   (Replaces: 9759944)	$126.90 Special Order
10	WP9756821	Support, Wiring	$44.50 Special Order
12	W10823696	Element, Surface (2500w Lf)	$208.20  In-Stock Retail: $203.10
	W10823698	Element, Surface (1800w - Rr) (Replaces: WP8523696 8523696)	$208.20  In-Stock Retail: $203.10
	W10823711	Element, Surface (1200w Lr-rf) (Replaces: WP8523698 8523698)	$208.20  In-Stock Retail: $203.10
13	9757800	Bracket, Front Support	$56.70 Special Order
14	WP3196557	Screw	$4.80  In-Stock Retail: $4.59
15	WP341196	Thermostat (Replaces: 341196)	$31.10 Special Order
16	W10491985	Screw (Replaces: 3196160)	$4.80  In-Stock Retail: $4.59
17	9758799	Bracket, Indicator Lamp	$46.70 Special Order
18	9760520BL	Trim, Extension (black)	$27.40 Special Order
	9760520SS	Trim, Extension (stainless)	$27.60 Special Order
	9760520WH	Trim, Extension (white)	$55.60 Special Order
19	9759094	Spring, Locator	$4.60 Special Order
20	9759963	Bracket, Rear Support	$27.40 Special Order
21	9763517	Rail, Element (2)	$58.90 Special Order
22	WP486754	Screw	$4.80 Special Order
23	9761723	Cover, Cooktop Rear	$59.90 Special Order
