01 - Top And Console Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	W10116546	Use & Care Guide	Call for Availability
	W10116548	Guide, Quick Start	Call for Availability
	W10116547	Tech Sheet	Call for Availability
2	WPW10336080	Top (white)	$178.70 Special Order
3	W10110973	Harness, Main	$161.00 Special Order

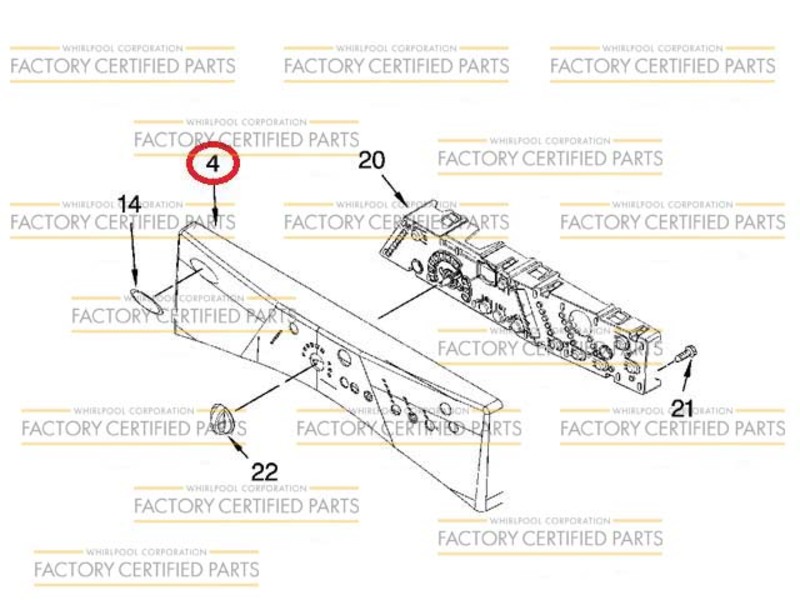

4	WPW10099598	Panel, Console (Replaces: W10099598)	Call for Availability
5	WP3394427	Clip, Harness	$4.80 Special Order
6	WP8565237	Bracket, Console	$109.80 Special Order
7	353424	Connector, Sensor	$13.70 Special Order
8	WP94614	Terminal (female)	$4.80 Special Order
9	3936144	Plug, Terminal	$13.70 Special Order
10	WP596797	Terminal	$4.80 Special Order
11	WP488729	Screw, 8-18 X 1/2	$4.80  In-Stock Retail: $4.59

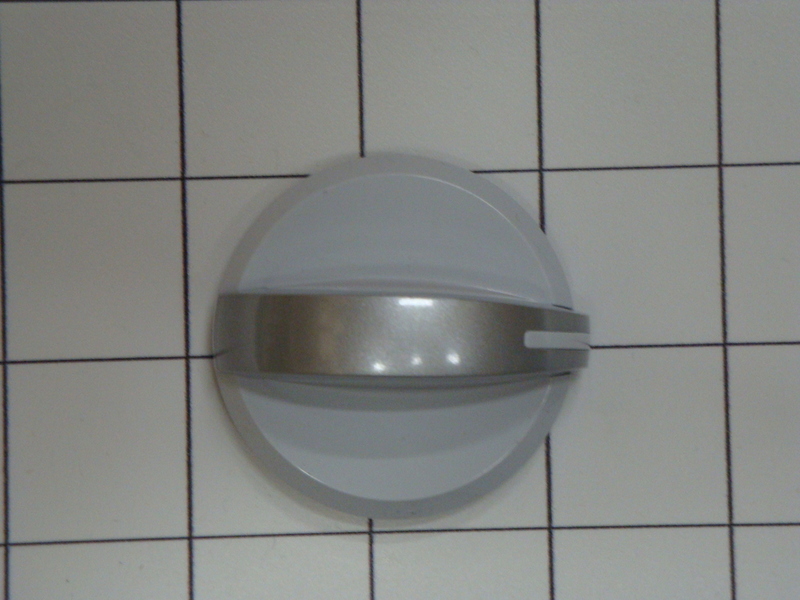

12	WP8574963	Knob, Control (Replaces: 8574963)	$42.80  In-Stock Retail: $41.66
13	WPW10266747	Channel, Water	$42.40 Special Order
14	W10117943	Badge, Assembly	$11.80 Special Order
15	3395683	Connector (motor)	$33.80 Special Order
16	3400238	Screw, 2-28 X 1/2	$8.20 Special Order
17	3400238	Screw, 2-28 X 1/2	$8.20 Special Order
18	WP8571955	Assembly, User Interface   (Replaces: 8571955)	$216.20 Special Order
