Whirlpool WGD9400SU1 Parts List

Popular Searches: (Click to search)    assembly  belt  bracket  catch  coil  door  drive  idler  ignitor  lower  main  paint  pilot  position  pulley  split  strike  support  terminal  white


Select a Diagram

01 - Top And Console Parts

02 - Cabinet Parts

03 - Bulkhead Parts

04 - 8576353 Burner Assembly

05 - Door Parts, Optional Parts (not Included)

Select Diagram ... 01 - Top And Console Parts 02 - Cabinet Parts 03 - Bulkhead Parts 04 - 8576353 Burner Assembly 05 - Door Parts, Optional Parts (not Included)

01 - Top And Console Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	W10151593	Use & Care Guide	Call for Availability
	W10111226	Guide, Quick Start	Call for Availability
	W10177461	Tech Sheet	Call for Availability
2	8565021	Top (white)	$111.60 Special Order
	W10192490	Top (black)	$135.60 Special Order
	W10194044	Top (biscuit)	$115.40 Special Order
	W10114785	Top (ultimate Silver)	$32.30 Special Order
3	W10111011	Harness, Main	$167.90 Special Order

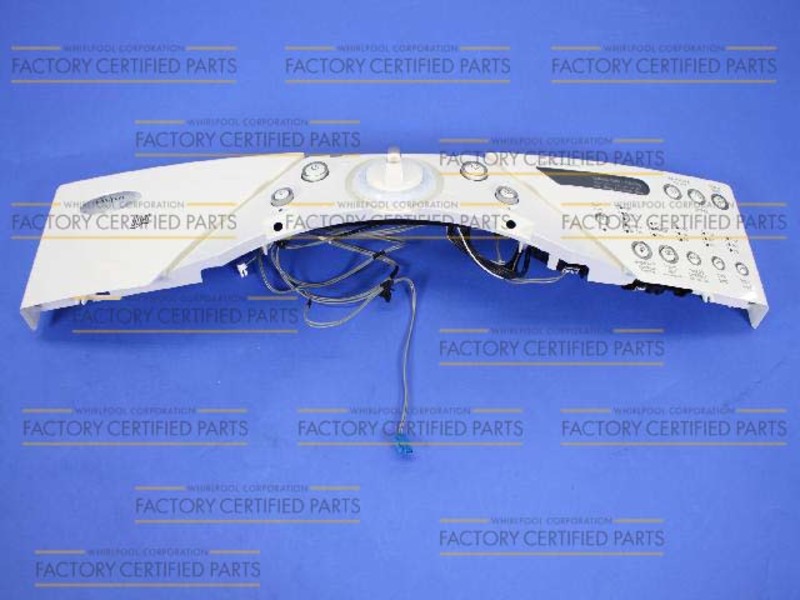

4	W10116696	Panel, Console (includes Illus: 20,21,22,27,28.) (biscuit)	$341.30 Special Order

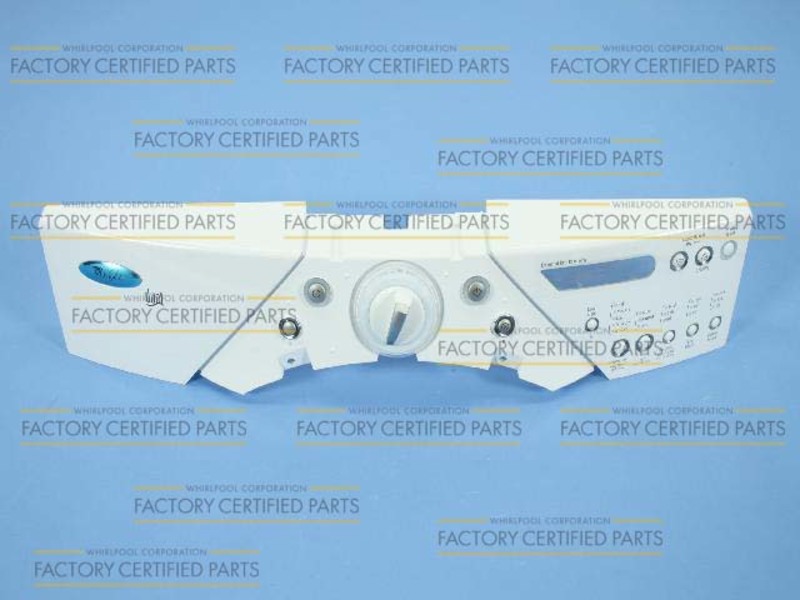

	W10116695	Panel, Console (includes Illus: 20,21,22,27,28.) (white)	$173.80 Special Order
	W10116698	Panel, Console (includes Illus: 20,21,22,27,28.) (black)	$219.90 Special Order
	W10116699	Panel, Console (includes Illus: 20,21,22,27,28.) (white/blue)	$344.70 Special Order

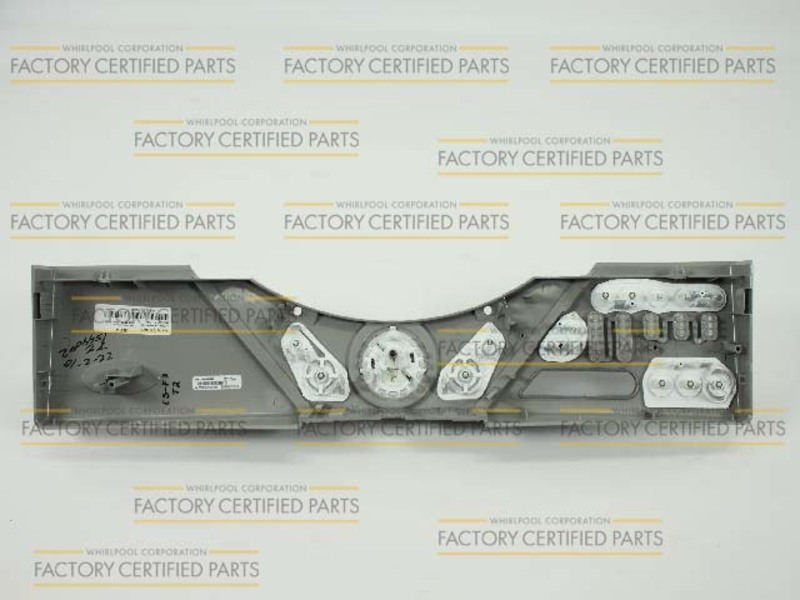

	W10116697	Panel, Console (includes Illus: 20,21,22,27,28.) (ultimate Silver)	$231.40 Special Order
5	WP3394427	Clip, Harness	$4.80 Special Order
6	W10006840	Bracket, Console (includes No.12)	$53.20 Special Order
7	353424	Connector, Sensor	$13.70 Special Order
8	WP94614	Terminal (female)	$4.80 Special Order
9	3936144	Plug, Terminal	$13.70 Special Order
10	W10117943	Badge	$11.80 Special Order
11	WP488729	Screw, 8-18 X 1/2	$4.80  In-Stock Retail: $4.59
12	W10112267	Foam-seal	$58.10 Special Order
13	W10012480	Array-power	$10.50 Special Order
14	3936150	Connector, 7-circuit	$54.00 Special Order
15	3395683	Connector (motor)	$33.80 Special Order
16	8281225	Screw, 8-18 X 1/2	$4.40 Special Order
17	2203186	Connector, 5-circuit	$7.90 Special Order
18	W10031430	User Interface (right)	$175.70 Special Order
19	W10121375	User Interface (center) (includes: Illus. 13)   (Replaces: W10171537 W10121375)	$210.70 Special Order
20	W10012430	Encoder-wheel	$12.40 Special Order
21	WPW10012440	Retainer-snap	$9.90 Special Order
22	W10012410	Knob, Light Ring (includes: Item 21)	$17.10 Special Order
23	280230	Rast, Wheel Assy. (service Only With Item. 28)	$98.80 Special Order
24	280230	Detent Wheel (service Only With Illus. 28)	$98.80 Special Order

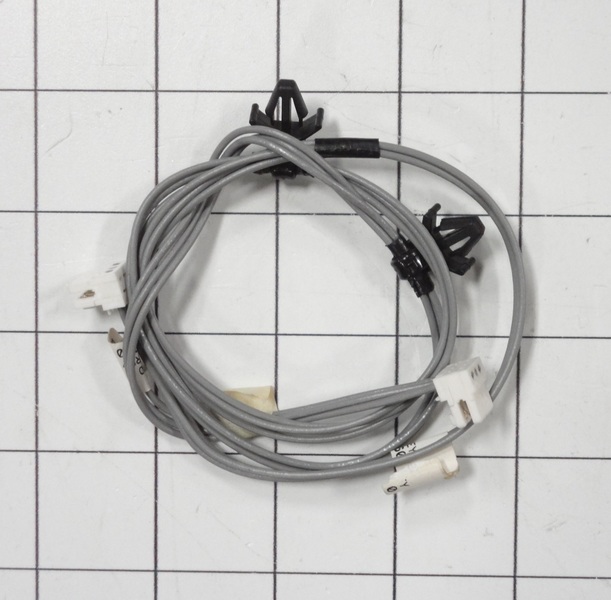

25	W10095960	Harness, Communication	$99.20 Special Order
26	280230	Knob, Spring (service Only With Item 28)	$98.80 Special Order
27	W10116702	Knob, Control (includes: Item. 21) (white)	$18.90 Special Order
	W10116703	Knob, Control (includes: Item. 21) (biscuit)	$33.70 Special Order
	W10116705	Knob, Control (includes: Item 21) (black)	$33.70 Special Order
	W10116706	Knob, Control (includes: Item 21) (blue)	$28.10 Special Order
	W10116704	Knob, Control (includes: Item. 21) (ultimate Silver)	$28.10 Special Order
28	280230	Encoder, Wheel Kit (includes Items: 23, 24, & 26)	$98.80 Special Order
29	W10112268	Clip-harness (4)	$8.40 Special Order

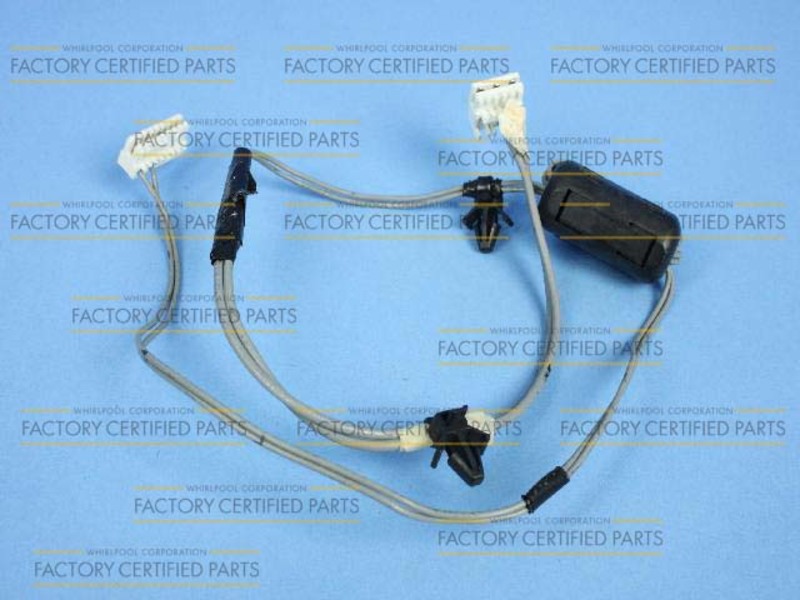

30	W10111020	Power Cable, User-interface	$73.70 Special Order
