06 - Pump And Motor Parts, Optional Parts (not Included)   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	W10186674	Harness, Motor	$76.30 Special Order

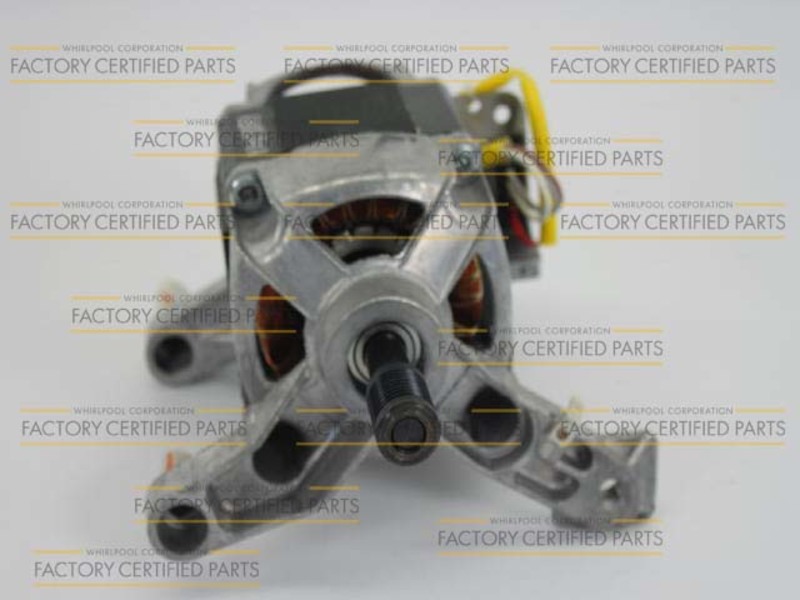

2	WPW10140583	Motor, Drive (Replaces: W10140583)	$261.90 Special Order
3	8540134	Bolt, Motor	$8.70 Special Order
4	W10121657	Ball	$13.60 Special Order
5	WP696392	Clamp	$4.40 Special Order
6	WPW10467168	Hose, Tub To Pump	$25.10  In-Stock Retail: $24.45
7	WP356138	Clamp, Drain Hose (Replaces: 356138)	$4.80 Special Order
8	WP616099	Clamp, Hose	$4.40 Special Order

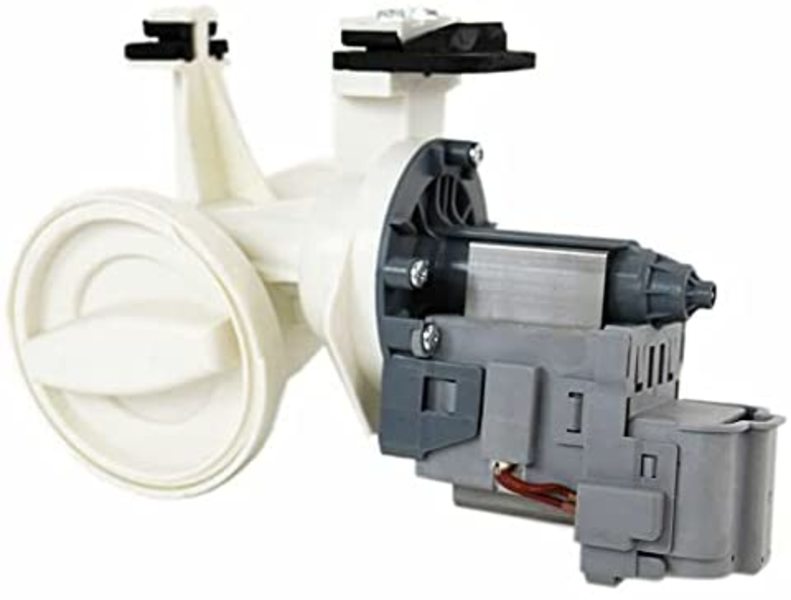

9	WPW10730972	Pump (complete) (Replaces: WPW10130913 W10130913)	$154.30  In-Stock Retail: $150.49
10	W10034820	Foot, Rubber (slider)	$8.30 Special Order
11	W10034830	Foot, Rubber (lock)	$9.00 Special Order
12	8540033	Cap, Lock Foot	$11.70 Special Order
13	8533964	Screw, 10-16 X 1.25 (2)	$7.60 Special Order
14	WPW10730972	Seal, Filter Cap	$154.30  In-Stock Retail: $150.49
15	WPW10730972	Filter Assembly (includes Item 14)	$154.30  In-Stock Retail: $150.49
16	WPW10384846	Motor Control Unit	$256.30  In-Stock Retail: $249.98
17	WPW10003250	Hose, Drain (inner)   (Replaces: W10003250)	$23.90  In-Stock Retail: $23.27
18	8182209	Retainer, Drain Hose	$13.30 Special Order
	W10157756	Paint, Touch-up (1/2oz.) (aspen)	$10.30 Special Order
	72017	Paint, Touch-up 1/2 Oz. (white)	$8.60  In-Stock Retail: $8.19
	350930	Paint, Pressurized Spray (12 Oz.) White	$12.60  In-Stock Retail: $11.98
	350938	Paint, Pressurized Spray(12 Oz.) (primer, Gray)	$27.40  In-Stock Retail: $26.69
	W10135699	Affresh Odor Remover	$7.20  In-Stock Retail: $6.99
	285863	Drain Extension	$19.10  In-Stock Retail: $18.59
	799344	Paint, Bulk (1 Qt.) (white) (uncut)	$128.20 Special Order
