01 - Top And Cabinet Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	W10133484	Use & Care Guide	Call for Availability
	W10133490	Tech Sheet	Call for Availability
	W10133489	Quick Start Guide	Call for Availability
	W10162665	Energy Guide	Call for Availability
2	W10166922	Top (aspen)	$94.20 Special Order
	W10003900	Top (white)	$95.00 Special Order
3	8183144	Cabinet (white)	$283.20 Special Order
	W10166923	Cabinet (aspen)	$271.70 Special Order
4	W10166920	Panel, Front (aspen)	$116.10 Special Order
	W10015580	Panel, Front (white)	$93.10 Special Order
5	W10003640	Toe Panel (white)	$77.00 Special Order
	W10166921	Toe Panel (aspen)	$134.60 Special Order
6	W10160030	Trim Ring, Teardrop Assembly (white)	$112.90 Special Order
	W10160019	Trim Ring, Teardrop Assembly (aspen)	$172.90 Special Order
7	8183208	Bracket, Trim Fixation (left)	$54.50 Special Order
8	8183209	Bracket, Trim Fixation (right)	Call for Availability
9	WP8183210	Clip, Trim	$4.80 Special Order

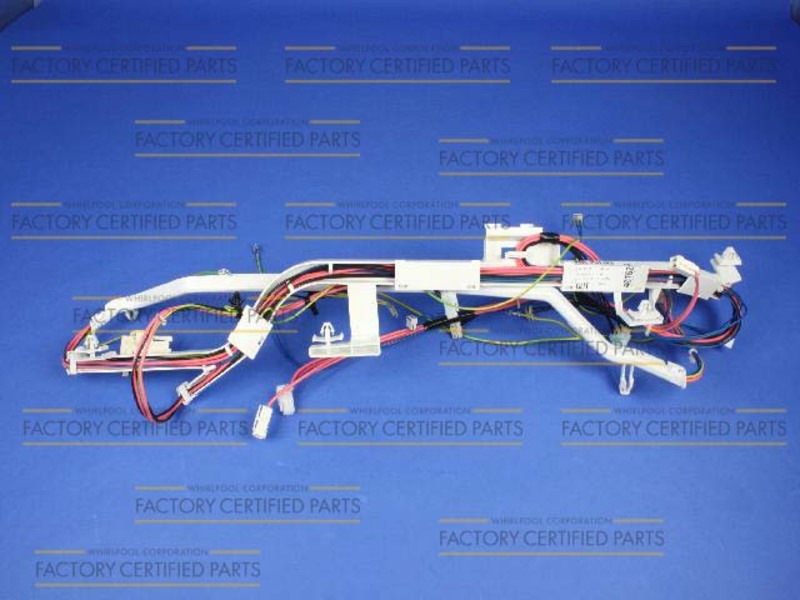

10	W10189679	Harness, Wiring (lower Main) (includes Items 18, 19 & 23)	$128.60 Special Order
11	WP8181636	Foot, Leveling (Replaces: 8181636)	$7.30 Special Order
12	W10289554A	Bolt, Shipping (upper)	$45.30  In-Stock Retail: $44.19
	W10289554A	Bolt, Shipping (lower)	$45.30  In-Stock Retail: $44.19
13	WPW10003040	Brace, Transport	$67.50 Special Order
14	8182698	Panel, Rear	$99.20 Special Order
15	8181635	Pan, Bottom	$46.60 Special Order
16	W10138248	Brace, Rear	$39.80 Special Order
17	WP488729	Screw	$4.80  In-Stock Retail: $4.59
18	W10121609	Channel, Harness (side)	$7.40 Special Order
19	W10121610	Channel, Harness (bottom)	$4.40 Special Order
20	W10156252	Switch, Analog Pressure Sensor	$218.10 Special Order
21	WPW10004260	Hose, Pressure Switch (Replaces: 8181739)	$5.60  In-Stock Retail: $5.46
22	WP8181763	Bracket, Spring	$55.80 Special Order
23	WPW10085220	Microswitch	$20.10  In-Stock Retail: $19.57
24	WP3367052	Clamp, Hose	$4.80 Special Order
25	W11757170	Connector, Drain Hose   (Replaces: 8181738)	$4.40  In-Stock Retail: $4.20
26	WP8181737	Hose, Drain (outer)   (Replaces: 8181737)	$55.60 Special Order
27	8182635	Strain Relief   (Replaces: 8181690)	$10.80 Special Order
28	WP8183009	Cord, Power	$103.00 Special Order
29	8182702	Clip, Outer Hose Holder	$33.70 Special Order
30	WPW10280024	Storage, Hose	$51.30  In-Stock Retail: $49.96
31	W11116978	Sleeve, Cord Support (2)	$14.40 Special Order
32	8182201	Screw, 3 X 8 Mm	$8.70 Special Order
33	WP8540268	Cover, Transport	$4.80  In-Stock Retail: $4.59
34	8182701	Clip, Outer Hose Holder	$60.70 Special Order
35	WP488729	Screw	$4.80  In-Stock Retail: $4.59
36	WP89503	Hose, Water Inlet (blue Coupler)	$7.80  In-Stock Retail: $11.98
	WP89503	Hose, Water Inlet (red Coupler)	$7.80  In-Stock Retail: $11.98
37	WPW10367632	Filter, Interference (Replaces: 8183019)	$82.40  In-Stock Retail: $80.32
38	8183030	Grid, Ventilation	$38.50 Special Order
39	W10138249	Spacer, Top (2)	$4.10 Special Order
40	8181632	Brace, Top	$32.70 Special Order
41	WPW10156258	Control Board, Expansion (Replaces: W10156258)	$220.60 Special Order
42	W10157885	Screw, 4.2 X 14	$4.20 Special Order
