01 - Top And Console Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	W10139322	Tip Sheet Dryer Steam	Call for Availability
	W10244607	Use & Care Guide	Call for Availability
	W10251193	Tech Sheet	Call for Availability
	W10224585	Installation, Instruction	Call for Availability
2	8519251	Top (white)	$27.80 Special Order
	W10249738	Top (red)	$104.10 Special Order
	W10249739	Top (mercury)	$104.50 Special Order

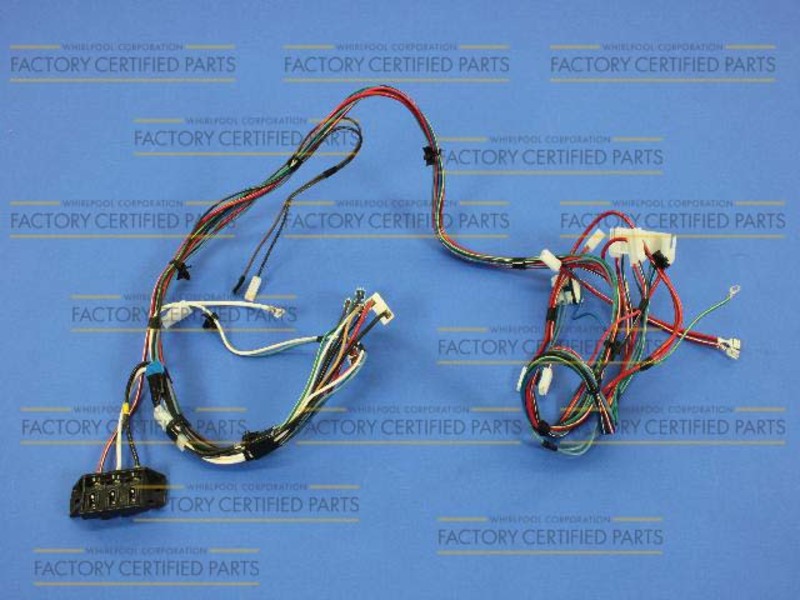

3	W10238916	Harness, Main	$116.20 Special Order
4	W10251606	Panel, Console (includes Items: 20,21,22,27,28 & 29) (red)	$422.40 Special Order

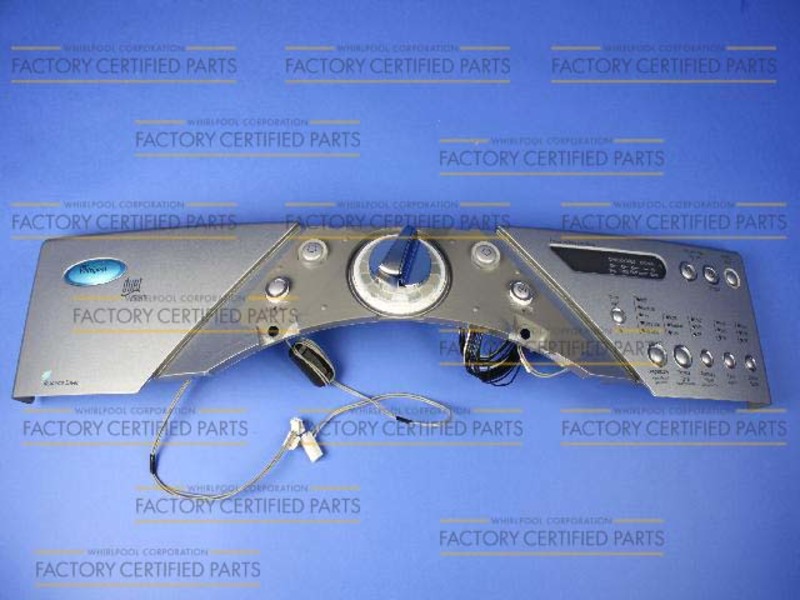

	W10251598	Panel, Console (includes Items: 20,21,22,27,28 & 29) (mercury)	$414.50 Special Order

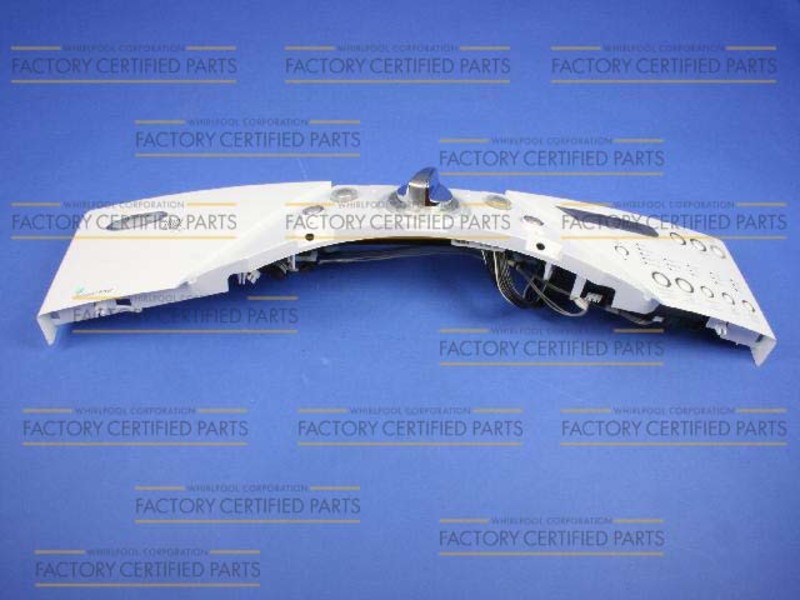

	W10246596	Panel, Console (includes Items: 20,21,22,27,28 & 29) (white)	$283.40 Special Order
5	WP3391018	Tie, Cable	$20.50 Special Order
6	W10215656	Bracket, Console (includes No.12)	$62.10 Special Order
7	W10112268	Clip-harness (4)	$8.40 Special Order
8	WP94614	Terminal	$4.80 Special Order
9	3936144	Plug, Terminal	$13.70 Special Order
10	WP596797	Terminal	$4.80 Special Order
11	WP488729	Screw, 8-18 X 1/2	$4.80  In-Stock Retail: $4.59
12	W10112267	Foam-seal	$62.20 Special Order
13	W10012480	Array-power	$10.50 Special Order
14	3936150	Connector, 7-circuit	$57.80 Special Order
15	3395683	Connector (motor)	$36.20 Special Order
16	303776	Screw, 8-32 X 1/32	$6.80 Special Order
17	2203186	Connector, 5-circuit	$7.90 Special Order

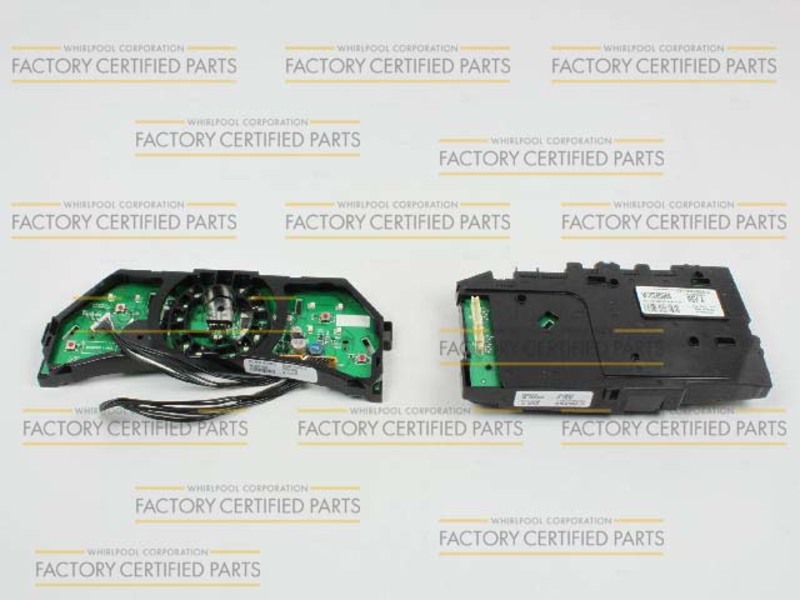

18	W10294712	User-interface (right)	$205.10 Special Order
19	W10110658	User Interface (center) (includes Illus. 13)	$163.10 Special Order
20	W10012430	Encoder-wheel	$12.40 Special Order
21	WPW10012440	Retainer-snap	$9.90 Special Order
22	W10250089	Knob, Light Ring (includes: Illus. 21)	$8.20 Special Order
23	280230	Rast, Wheel Holder (service Only With Illus. 28 )	$98.80 Special Order
24	280230	Detent Wheel (service Only With Illus. 28)	$98.80 Special Order
25	W10095960	Harness, Communication	$99.20 Special Order
26	280230	Knob, Spring (2) (service Only With Illus. 28 )	$98.80 Special Order
27	W10190685	Knob, Control (includes: Illus. 21)	$41.30 Special Order
28	280230	Encoder, Wheel Kit. (includes Item: 23, 24, & 26)	$98.80 Special Order
29	W10117943	Badge	$11.80 Special Order
30	W10111020	Power Cable, User-interface	$73.70 Special Order
