Whirlpool TGDL200BW0 Parts List

Popular Searches: (Click to search)    alt  assembly  belt  coil  door  drive  fuse  ignitor  main  motor  paint  pilot  position  roller  split  strike  support  terminal  thermal  white


Select a Diagram

01 - Top And Console, Lit/optional

02 - Cabinet

03 - 694670 Burner Assembly

04 - Bulkhead

Select Diagram ... 01 - Top And Console, Lit/optional 02 - Cabinet 03 - 694670 Burner Assembly 04 - Bulkhead

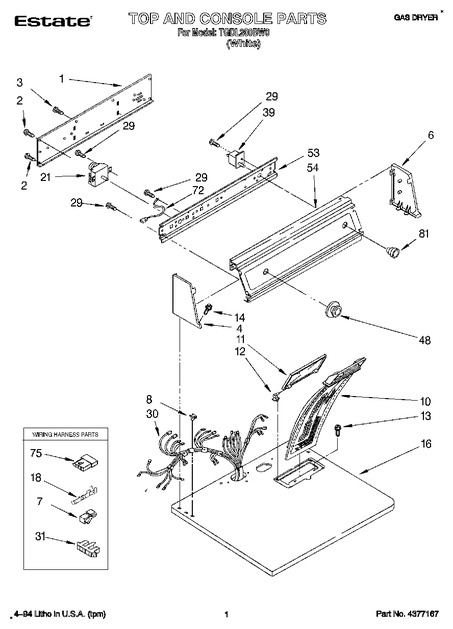

01 - Top And Console, Lit/optional   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	3397545	Panel, Rear Console	$55.20 Special Order
2	WP489069	Screw, 10-16 X 1/2	$4.80 Special Order
3	WP693995	Screw, Hex Head   (Replaces: 693995)	$4.80  In-Stock Retail: $4.59
4	3358014	Cap, End (l.h.)	$21.60 Special Order
6	3357996	Cap, End (r.h.)	$21.60 Special Order
7	689180	Clip, Retainer	Call for Availability
8	WP357213	Nut, Push-in (2) (Replaces: 357213)	$4.80  In-Stock Retail: $4.59
10	339392V	Screen, Lint (Replaces: 337448)	$27.50  In-Stock Retail: $27.44
11	WP697367	Cover, Lint Screen (white) (Replaces: 688150)	Call for Availability
12	WPW10044480	Hinge, L.h.	$4.80  In-Stock Retail: $4.59
	WPW10044470	Hinge, R.h.	$4.80  In-Stock Retail: $4.59
13	W11693756	Screw, 8-15 X 5/8	$8.70 Special Order
14	WP388326	Screw, Console	$4.80  In-Stock Retail: $4.59
16	3977220	Top (white)   (Replaces: 3396022)	$124.20 Special Order
18	WP94614	Terminal (female)	$4.80 Special Order
21	3398133	Timer Assembly, 60 Hz.	$112.80 Special Order
29	WPW10139210	Screw, 8-18 X 5/16	$4.80  In-Stock Retail: $4.59
30	3396647	Harness, Wiring	Call for Availability
31	3397269	Connector, Timer	$17.90 Special Order
39	279173	Switch, Push-to-start	$56.10 Special Order
	279173	(alt.)	$56.10 Special Order
	279173	(alt.)	$56.10 Special Order
48	3391828	Timer Knob Assembly	Call for Availability
53	8054298	Bracket, Control	$28.20 Special Order
54	3397316	Panel, Control	Call for Availability
72	690853	Wire, Ground	$32.00 Special Order
75	691707	Receptacle, 3-way Terminal (use W/94614)	$13.00 Special Order
81	3391829	Knob, Push-to-start	$32.00 Special Order
	LIT3395332	Instructions, Installation	Call for Availability
	350956	Paint, Spray 13 Oz. (almond)	$16.80  In-Stock Retail: $16.34
	350930	Paint, Pressurized Spray (12 Oz.) White	$12.60  In-Stock Retail: $11.98
	LIT3398162	Label, Wiring Diagram	Call for Availability
	LIT3396310	Guide, Use & Care	Call for Availability
	677813L	Automatic Washer (belt Drive) (Replaces: 677813 LIT677813)	$20.90 Special Order
	72017	Paint, Touch-up 1/2 Oz. (white)	$8.60  In-Stock Retail: $8.19
	WP72107	Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107)	$9.80  In-Stock Retail: $9.49
	677818L	Dryer (Replaces: LIT677818)	$29.40 Special Order
	978883	Almond (uncut)	$106.60 Special Order
	799344	Paint, Bulk (1 Qt.) (white) (uncut)	$128.20 Special Order
	350941	Leveler (thinner)	$6.90 Special Order
	350938	Paint, Pressurized Spray (12 Oz.) (primer,grey)	$27.40  In-Stock Retail: $26.69
