Whirlpool TER46W0WN2 Parts List

Popular Searches: (Click to search)    2oz  6``  8``  almond  black  broil  illus  includes  infinite  paint  pan  pressurized  receptacle  reflector  spray  surface  switch  touch  unit  white


Select a Diagram

02 - Cooktop

03 - Control Panel

04 - Door And Drawer

05 - Harness

06 - Unit, Lit/optional

07 - Oven

Select Diagram ... 02 - Cooktop 03 - Control Panel 04 - Door And Drawer 05 - Harness 06 - Unit, Lit/optional 07 - Oven

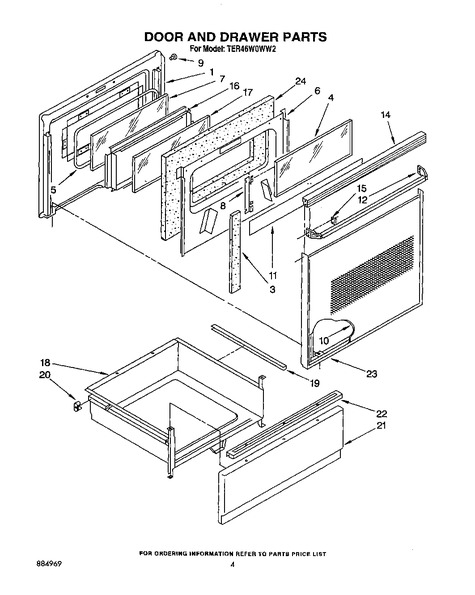

04 - Door And Drawer   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	3148443	Screw, (6) 8-18x5/16	$4.40 Special Order
	247326	Screw (2) 10-24x1/2	Call for Availability
	3172218	Liner, Door	Call for Availability
3	3148441	Seal, (2)	Call for Availability
4	3169202	Glass, Reflective	$69.90 Special Order
5	3148183	Seal, Window	$5.10 Special Order
6	3148159	Retainer, Insulation	Call for Availability
	3148443	Screw (4)	$4.40 Special Order
7	WP3169203	Glass, Inside	$89.50 Special Order
8	3148187	Retainer, (2) Glass	Call for Availability
9	3148182	Bumper (4)	Call for Availability
10	3148185	Glass, Panel	Call for Availability
11	3148184	Foil, Door	$23.20 Special Order
12	WP355515	Screw (4)	$4.80 Special Order
	3148228	Handle, Door	$79.20 Special Order
14	3148223	Top, Door	Call for Availability
	307748	Screw (2)	$4.40 Special Order
15	3148282	Clip, Mtg (2)	$7.20 Special Order
16	3148234	Frame, Inner Glass	Call for Availability
	3148443	Screw (6)	$4.40 Special Order
17	WP3169203	Glass, Outer	$89.50 Special Order
18	327887	Drawer, Utility	$79.00 Special Order
19	3367669	Protector, Drawer Side (2)	$25.30 Special Order
20	307980	Glide, Rear (2)	$4.40 Special Order
	307748	Screw, 10a X 1/2 (2)	$4.40 Special Order
21	307939	Panel, Drawer (almond)	Call for Availability
	WP488787	Panel Drawer (screw, 8-18 X 1/2 (3))	$6.70  In-Stock Retail: $6.50
	307935	Panel Drawer (white)	Call for Availability
22	3169105	Handle, Drawer   (Replaces: 313337)	$85.50 Special Order
	WP488627	Screw 8-18 X 1/2 (2)	$4.60  In-Stock Retail: $4.47
23	3148235	Frame, Door	Call for Availability
	307748	Screw (3)	$4.40 Special Order
	WP355515	Screw (4)	$4.80 Special Order
24	308024	Insulation	Call for Availability
