Whirlpool SF3020SWW1 Parts List

Search Model by Keyword(s):

Popular Searches: (Click to search)    bulb  clip  thermo


Select a Diagram


05 - Cooktop And Manifold, Lit/optional   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item # Part # Description Price / Availability Add to Cart
1 4314891 Cooktop (white) $209.00
Special Order
4314892 Cooktop (almond) $93.00
Special Order
2 4157196 Grate (4) $43.30
Special Order
3 4157074 Shutter, Air (4) Call for Availability
4 4157075 Nut, Hex Call for Availability
5 4157076 Cover, Pilot (2) $6.90
Special Order
6 4157077 Filter, Pilot $13.30
Special Order
7 254217 Screw, 10-12 X 3/8 (4) Call for Availability
4157078 Support, Burner Call for Availability
8 Y07699200 Y07699200 Burner, Rear (2)
(Replaces: 4157206) 		$75.50
Special Order
254217 Screw, 10-12 X 3/8 (2) Call for Availability
9 254217 Screw, 10-12 X 3/8 (2) Call for Availability
4363107 Burner, Front (2)   (Replaces: 4157205) Call for Availability
10 8190328 Tubing, Pilot $71.20
Special Order

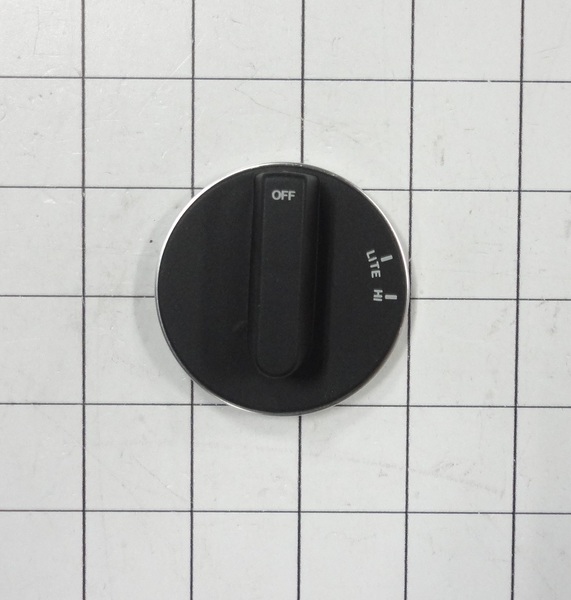

11 WP4320580 WP4320580 Knob, Burner (4)
(Replaces: 4320580) 		$5.00
 In-Stock
Retail: $4.82
12 254217 Screw, 10-12 X 3/4 (4) Call for Availability
4314933 Locator Stud (2) $4.40
Special Order
13 4157084 Regulator, Pressure Call for Availability
14 WP308685 WP308685 Screw, 10-12 X 1/2 (1) $4.80
 In-Stock
Retail: $4.59
4320642 Manifold $72.60
Special Order
15 4320643 Panel, Manifold Call for Availability
16 4314814 Valve, 90~ (4) (includes Ill. No. 32) Call for Availability
17 4320444 Screw, 10-12 X 1/2 (3) Call for Availability
4320443 Support, Manifold (l.h.) $4.40
Special Order
18 WP308685 WP308685 Screw, 10-12 X 1/2 (2) $4.80
 In-Stock
Retail: $4.59
4179357 Support, Manifold (r.h.) Call for Availability
20 4320644 Knob, Thermostat Call for Availability
21 4363827 Thermostat (includes Ill. No. 31) $166.50
Special Order
22 4157094 4157094 Valve, Safety Call for Availability
WP3387230 WP3387230 Screw, 10-12 X 3/4 (2) $4.80
 In-Stock
Retail: $4.59
23 Y07697200 Pilot $44.90
Special Order
4157126 Screw, 10-24 X 1/4 (1) Call for Availability
24 4320371 Burner, Oven Call for Availability
25 4157097 Shutter, Burner $6.40
Special Order
26 4342530 Tubing 3/8`` (thermostat To Safety Valve)   (Replaces: 4157098) Call for Availability
27 8189701 Tubing 3/16`` (thermostat To Pilot) $32.30
Special Order
30 4320602 Endcap (l.h.) Call for Availability
4320603 Endcap (r.h.) Call for Availability
31 4314816 Bolt, Thermostat Mounting (2) Call for Availability
32 W10491986 Bolt, Valve Mounting $4.50
Special Order
34 WPW10208653 WPW10208653 Insulation, Fiberglass (2-1/2`` X 22`` X 120``) $51.80
Special Order
WPW10208653 WPW10208653 Insulation, Fiberglass (1-1/2`` X 24`` X 120``) $51.80
Special Order
4157012 Nut (10-24) Call for Availability
241430 241430 Foil, Aluminum Oven (18`` X 25`) Call for Availability
4320440 Spreader, Flame Call for Availability
LIT4315704 Guide, Use & Care Call for Availability
LIT4321208 List, Repair Parts Call for Availability
LIT3149508 Guide, Cooking Call for Availability
LIT4315709 Instuctions, Installation Call for Availability
