Whirlpool SF3020SKQ1 Parts List

Popular Searches: (Click to search)    2oz  almond  black  broiler  burner  door  grate  gray  handle  kit  knob  oven  paint  pan  pressurized  retainer  spray  superior  touch  white


Select a Diagram

01 - Cooktop Parts

02 - Backguard Parts

03 - Manifold Parts

04 - Chassis Parts

05 - Oven & Broiler Parts

06 - Door Parts, Miscellaneous Parts

Select Diagram ... 01 - Cooktop Parts 02 - Backguard Parts 03 - Manifold Parts 04 - Chassis Parts 05 - Oven & Broiler Parts 06 - Door Parts, Miscellaneous Parts

03 - Manifold Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart

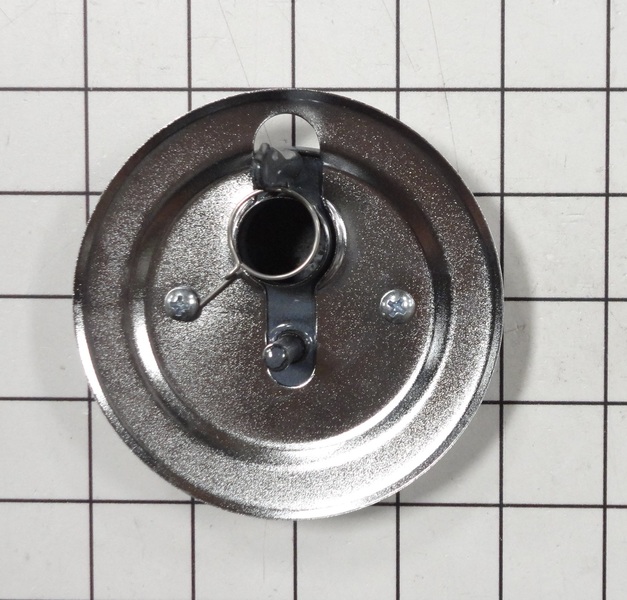

1	98013630	Burner, Top (4) (gray)	$29.90 Special Order
	8190039	Burner, Top (4) (black)	$70.60 Special Order
2	98013308	Venturi, Front (2)	$56.60 Special Order
3	98007132	Washer, Valve (4)	$4.40 Special Order
4	98013309	Venturi, Rear (2)	$70.80 Special Order
5	98011928	Tube, Flash (2)	$29.80 Special Order
6	98004418	Regulator	$90.70 Special Order
7	98011927	Support, Burner	$53.20 Special Order
8	98011924	Spreader, Flame	$64.20 Special Order
9	W11233072	Screw	$8.70  In-Stock Retail: $8.47
10	98004315	Burner, Oven	$38.80 Special Order
11	W10837731	Screw	$4.80  In-Stock Retail: $4.59

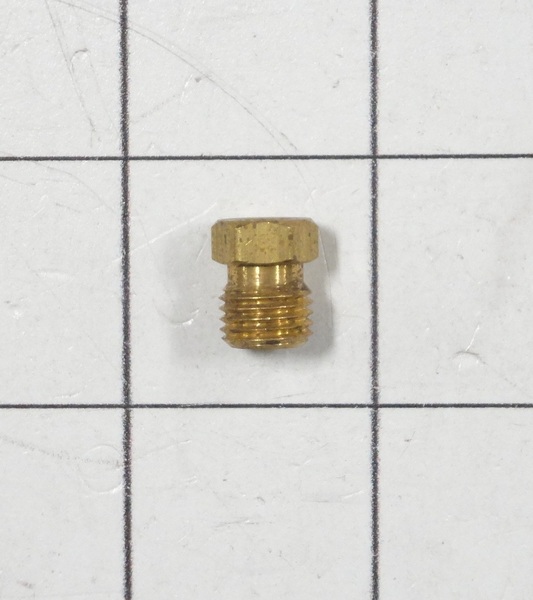

12	98005514	Fitting, Tube	$8.20 Special Order
13	98005639	Valve, Oven	$61.30 Special Order
14	98011272	Screw	$4.40 Special Order
15	WP98005574	Valve, Burner (4) (Replaces: 98005574)	Call for Availability
16	W11428245	Bolt, Valve Mtg	$8.70  In-Stock Retail: $8.47
17	98010086	Pipe, Manifold	$62.40 Special Order
19	98015087	Thermostat	$143.50 Special Order
20	98005662	Bolt, T-stat Mtg	$4.40 Special Order

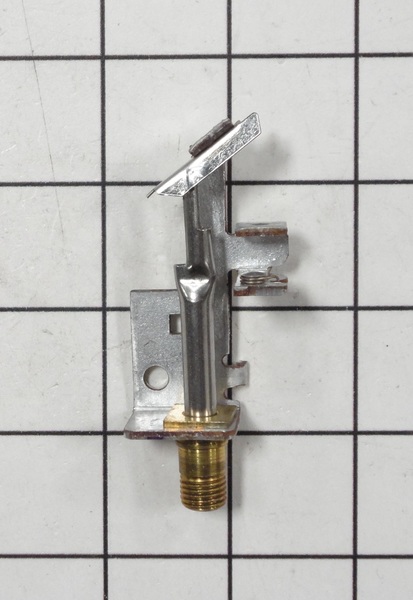

21	98004302	Pilot, Oven	$36.90 Special Order
22	WP98004310	Tubing (t-stat To Oven Pilot)   (Replaces: 98004310)	$72.90  In-Stock Retail: $71.07
23	98004309	Tubing (t-stat To Oven Valve)	Call for Availability
24	98007409	Tubing, Pilot	Call for Availability
25	98005708	Bracket, Valve	$25.80 Special Order
26	98005507	Nut, Tubing	$15.30 Special Order
27	98007127	Sleeve, Tubing	$13.80 Special Order
28	98008930	Tubing, Oven	$50.30 Special Order
29	98005562	Nut, Fitting	$4.40 Special Order

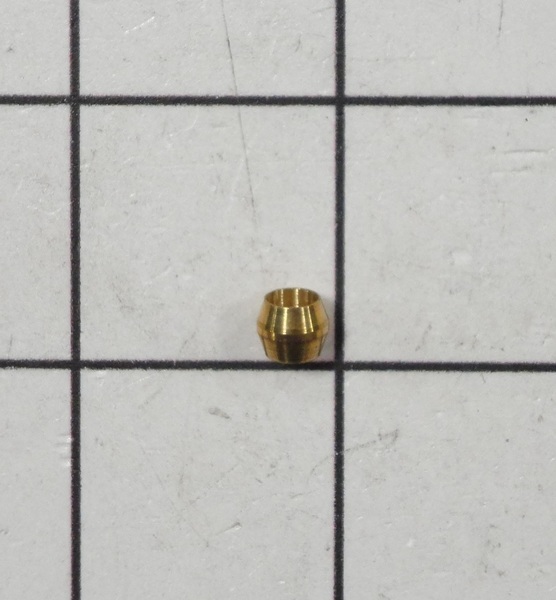

30	98007116	Sleeve, 3/16``	$33.50 Special Order
31	98011226	Tubing, Inlet	Call for Availability
32	98005927	Nut, Loxit	$24.40 Special Order
33	98007226	Cover, Pilot	$29.00 Special Order
34	98005658	Screw	$34.30 Special Order
36	98005982	Natural Spud Kit (for Use With Natural Gas)	Call for Availability
	98007183	Bracket, Inlet	$22.40 Special Order
	N/A	Following Parts Not Illustrated	Call for Availability
	98011072	Washer, Cut-off	$4.40 Special Order

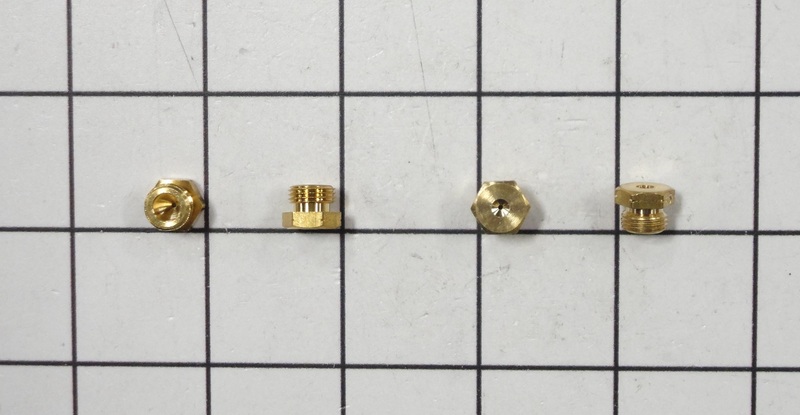

	98005978	Lp Spud Kit (for Use With Lp)	$36.40 Special Order
