Whirlpool 7MLGC9545JQ4 Parts List

Popular Searches: (Click to search)    assembly  belt  coil  door  drive  dryer  fuse  ignitor  kit  main  panel  pilot  position  repair  roller  split  support  switch  terminal  thermal


Select a Diagram

01 - Top And Console Parts

02 - Cabinet Parts

03 - Bulkhead Parts

04 - 8318272 Burner Assembly

Select Diagram ... 01 - Top And Console Parts 02 - Cabinet Parts 03 - Bulkhead Parts 04 - 8318272 Burner Assembly

01 - Top And Console Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	LIT8533205	Wiring Diagram	Call for Availability
	677818L	Literature Parts (dryer) (Replaces: LIT677818)	$29.40 Special Order
	N/A	Following May Be Purchased Do-it-yourself Repair Manuals	Call for Availability
	LIT3978910	Instructions, Installation	Call for Availability
	LIT8543094	Use & Care Guide	Call for Availability
2	3393812	Wire, Jumper (blue)	$8.40 Special Order

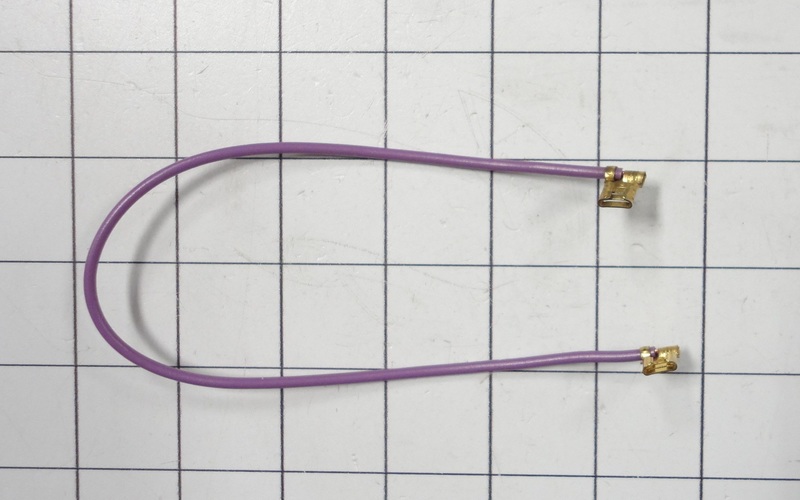

	3393811	Wire, Jumper (violet)	$8.40 Special Order
3	WP694419	Buzzer, Mini   (Replaces: 694419)	$80.40  In-Stock Retail: $78.42
4	W10820038	Cap, End (l.h.)	$51.50 Special Order
5	717252	Plug, 2-way Terminal	$4.40 Special Order
6	8318269	Switch, Clean Touch	$106.30 Special Order
7	3396032	Wire, Jumper (guard/signal)	$28.00 Special Order
8	W10820038	Cap, End (r.h.)	$51.50 Special Order
9	WP693995	Screw, Hex Washer Head   (Replaces: 693995)	$4.80 Special Order
10	WP349639	Handle & Lint Screen Assembly (Replaces: 349639)	$26.80  In-Stock Retail: $26.05
11	8283378	Cover, Lint Screen	$33.80 Special Order
12	WPW10044470	Hinge, R.h. (Replaces: 3978605)	$4.80  In-Stock Retail: $4.59
	WPW10044480	Hinge, L.h.	$4.80  In-Stock Retail: $4.59
13	W11693756	Screw, 8-18 X 5/8	$8.70 Special Order
14	3400859	Screw, Grounding	$8.20 Special Order
15	3395683	Connector (motor)	$33.80 Special Order
16	WP8521918	Top   (Replaces: 8271390)	$188.80 Special Order
17	WP681414	Screw,10-16 X 1/2	$4.80 Special Order
18	3957804	Knob, Push To Start (Replaces: 8271341)	$32.90 Special Order
19	WP3394427	Clip, Harness	$4.80 Special Order
20	WP388326	Screw, Console (Replaces: 388326)	$4.80  In-Stock Retail: $4.59

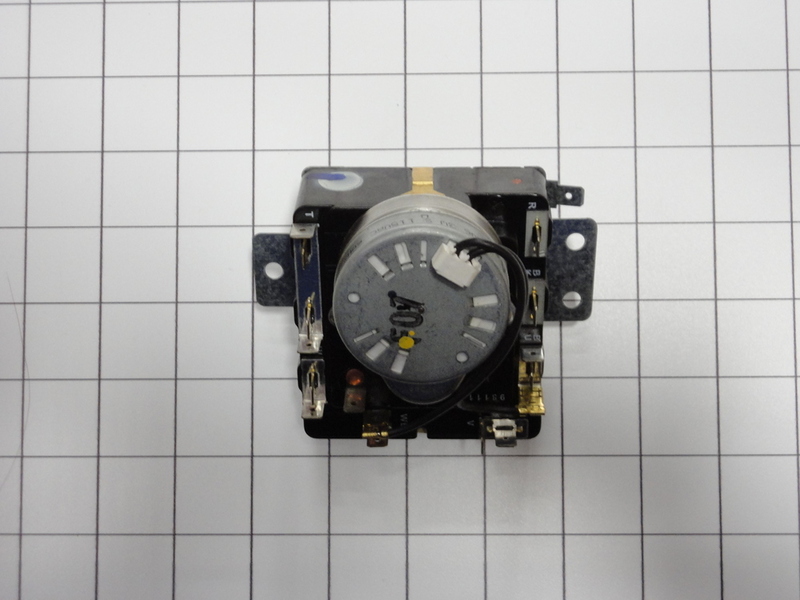

21	8299762	Timer Assembly (60 Hz.)	$115.80 Special Order
22	WPW10476828	Control, Electronic (Replaces: 8558178 3390537)	$219.20  In-Stock Retail: $213.76
23	3391885	Connector, Edge	$54.00 Special Order
24	3397269	Connector, Timer	$17.90 Special Order
25	3401144	Connector, (pts Relay)	$8.30 Special Order
26	WP3403499	Connector, 2-position Gas Valve	$4.50 Special Order
27	WP3403498	Connector, 3-position (gas Valve)	$4.80 Special Order
29	WPW10139210	Screw, 8-18 X 5/16	$4.80  In-Stock Retail: $4.59
30	WP357213	Nut, Push-in (2) (Replaces: 357213)	$4.80  In-Stock Retail: $4.59
31	8299881	Harness, Wiring	$161.80 Special Order
34	W10103406	Panel, Rear Console	$77.60 Special Order
35	WP17258	Bumper, Lint Lid	$7.20 Special Order
36	WP3398094	Switch, Push-to-start (Replaces: 3398094)	$73.70  In-Stock Retail: $71.83
37	WP3957754	Timer Knob Assembly	$37.70 Special Order
38	WP94614	Terminal (female)	$4.80 Special Order
39	8271426	Bracket, Control	$6.80 Special Order
40	3977844	Panel, Control	$110.10 Special Order
41	3936144	Connector	$13.70 Special Order
