Whirlpool RJE302BW1 Parts List

Popular Searches: (Click to search) 240v black 2oz almond bake leg leveling paint platinum pressurized spray touch unit white

Select a Diagram

01 - Cooktop

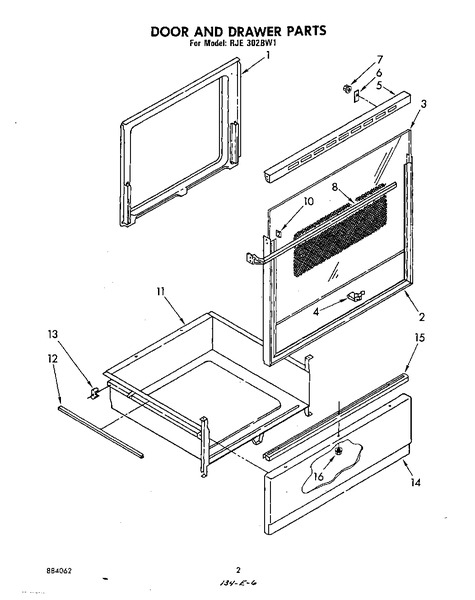

02 - Door And Drawer

03 - Control Panel

04 - Oven

05 - Literature And Optional

Double click the image below to zoom-in

Hover over In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability
1	307748	Screw, 10a X 3/8 (3)	$4.40 Special Order
	329688	Liner, Door	Call for Availability
2	310427	Frame, Door 30``	Call for Availability
3	310655	Glass, Outer	Call for Availability
4	310706	Clip, Glass (10)	Call for Availability
5	310784	Top, Door	Call for Availability
	307748	Screw (2)	$4.40 Special Order
6	WP90296	Clip (2)	$4.80 Special Order
	310705	Hold Down, Glass (2)	$4.40 Special Order
7	WP90296	Fastener, Pushnut (2)	$4.80 Special Order
8	312722	Handle, Door	Call for Availability
	WP912618	Screw (4)	$4.80 In-Stock Retail: $4.59
10	311506	Clip	$4.40 Special Order
11	327887	Drawer, Utility	$79.00 Special Order
12	3367669	Protector, Drawer Slide (2)	$25.30 Special Order
13	307748	Screw, 10a X 1/2 (2)	$4.40 Special Order
	307980	Glide, Rear (2)	$4.40 Special Order
14	307937	Panel, Drawer (coffee)	Call for Availability
	309923	Panel Drawer (black)	Call for Availability
	313172	Panel, Drawer (platinum)	Call for Availability
	313171	Panel, Drawer (toast)	Call for Availability
	307939	Panel, Drawer (almond)	Call for Availability
	307938	Panel Drawer (harvest Gold)	Call for Availability
	307936	Panel, Drawer (new Avocado)	Call for Availability
	307935	Panel Drawer (white)	Call for Availability
	WP488787	Panel Drawer (screw, 8-18 X 1/2 (3))	$6.70 In-Stock Retail: $6.50
15	WP912618	Screw (3)	$4.80 In-Stock Retail: $4.59
	3169105	Handle, Drawer	$85.50 Special Order
16	WP486255	Palnut, 8-32	$4.50 Special Order
