Whirlpool RHM988PW1 Parts List

Popular Searches: (Click to search)    2oz  almond  bake  black  door  fuse  oven  paint  screw  sealer  silastic  spray  spring  touch  unit  white


Select a Diagram

02 - Door And Drawer

03 - Oven

04 - Section

05 - Cooktop

06 - Upper Chassis

07 - Light, Hinge And Stirrer

08 - Controls

09 - Magnetron And Air Flow

10 - Microwave Door And Latch , Lit/optional

11 - Wiring Harness

Select Diagram ... 02 - Door And Drawer 03 - Oven 04 - Section 05 - Cooktop 06 - Upper Chassis 07 - Light, Hinge And Stirrer 08 - Controls 09 - Magnetron And Air Flow 10 - Microwave Door And Latch , Lit/optional 11 - Wiring Harness

05 - Cooktop   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	W11693756	Screw, 8a X 5/8	$8.70 Special Order
	WP308605	Clamp, Cable	$7.10 Special Order
2	308427	Cooktop (white)	Call for Availability
	338177	Cooktop (clip, ``j`` (2))	Call for Availability
	309013	Cooktop (almond)	Call for Availability
	308424	Cooktop (golden Harvest)	Call for Availability
	308425	Cooktop (coffee)	Call for Availability
	308426	Cooktop (new Avocado)	Call for Availability
3	309245	Insulator, Switch	Call for Availability
4	328239	Hinge, Leaf Cooktop R.h.	Call for Availability
	328238	Hinge, Leaf Cooktop L.h.	Call for Availability
	WP308685	Screw (4)	$4.80  In-Stock Retail: $4.59
5	308968	Shield, Wiring	Call for Availability
	308581	Screw, 10 X .5 Hex Head	Call for Availability
6	308827	Burner Box	Call for Availability
	WP3390631	Screw, 10a X 3/8 (4)	$4.80  In-Stock Retail: $4.59
	308581	Screw, 10 X .5hh (2)	Call for Availability
7	256904	Medallion	Call for Availability
8	WP486754	Screw, 6-32 X 1/4 (4)	$4.80 Special Order
	330031	Receptacle	$11.80  In-Stock Retail: $11.75
10	WPY04100165	Unit, Surface (6`` (2))	$50.80  In-Stock Retail: $49.54
	WP660533	Unit, Surface (8`` (2))	$52.10  In-Stock Retail: $52.03
11	W10291024	Pan, Porcelain (8`` (2))	$33.70  In-Stock Retail: $32.79
	W10291024	Pan, Porcelain (6`` (2))	$33.70  In-Stock Retail: $32.79
12	307968	Rod, Cooktop	Call for Availability
13	WP3390631	Screw, 10a X 3/8	$4.80  In-Stock Retail: $4.59
	307967	Retainer, Cooktop	$4.40 Special Order
14	308620	Trim, Front	Call for Availability
15	309051	Screw, 8a X 3/8 (2)	Call for Availability
	308444	End Cap L.h.	Call for Availability
	308445	End Cap R.h.	Call for Availability
	98084	Clip (4)	$25.70 Special Order
16	WP308685	Screw, 10a X 1/2 (2)	$4.80  In-Stock Retail: $4.59
	W11693756	Screw, 8a X 5/8 (4)	$8.70 Special Order
	308619	Trim, Side & Rear	Call for Availability
17	WP308685	Screw, 10a X 1/2 (6)	$4.80  In-Stock Retail: $4.59
	308621	Bracket, Cooktop (6)	Call for Availability
18	328409	Glass Top Assembly	Call for Availability
19	309569	Handle	Call for Availability
20	309566	Retainer, Handle	Call for Availability
21	309565	Pin, Retainer (2)	$4.40 Special Order
22	309568	Screw, 4b X 1/4 (2)	Call for Availability
23	309468	Pivot Angle	Call for Availability
24	308983	Switch	Call for Availability
	98106	Screw, 6-32 X 7/8 (2)	Call for Availability
25	328256	Switch, Actuator	Call for Availability
29	WP681414	Screw,10-16 X 1/2	$4.80 Special Order
	814262	Latch Assembly (Replaces: 328585)	Call for Availability
	310001	Screw	Call for Availability
30	308422	Screw, 10-24 X 1/2	Call for Availability
	308413	Handle, Latch	Call for Availability
31	WP488627	Screw, 8a X 1/2	$4.60  In-Stock Retail: $4.47
	307977	Knob, Latch	$16.20 Special Order
32	98106	Screw (2)	Call for Availability
	3178672	Switch, Limit   (Replaces: 3178672 308185)	$52.80 Special Order
33	310100	Shield, Terminal	Call for Availability
34	W10854470	Ring, Adapter (6`` (2))	$59.50 Special Order

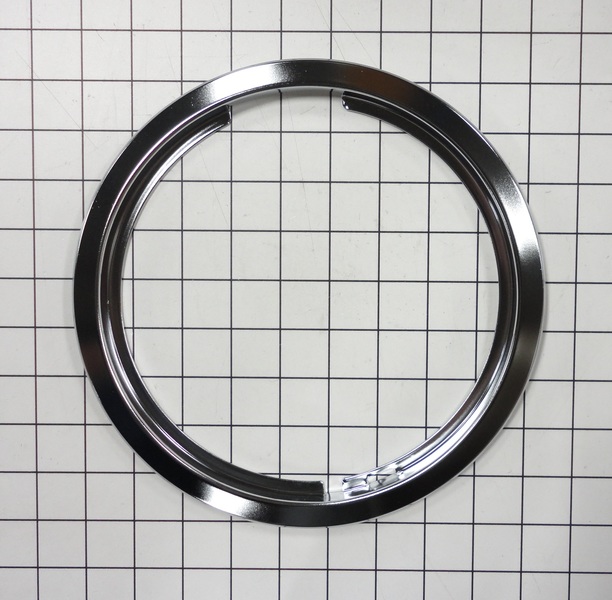

	W10858781	Adapter Ring 8`` (2)	$62.40 Special Order
