Whirlpool 7MGHW9150PW1 Parts List

Popular Searches: (Click to search)    bellow  complete  control  door  flowmeter  handle  hose  inlet  lock  motor  paint  pressure  pressurized  pump  spray  switch  touch  unit  valve  white


Select a Diagram

01 - Top And Cabinet Parts

02 - Door And Latch Parts

03 - Control Panel Parts

04 - Dispenser Parts

05 - Tub And Basket Parts

06 - Pump And Motor Parts, Optional Parts (not Included)

Select Diagram ... 01 - Top And Cabinet Parts 02 - Door And Latch Parts 03 - Control Panel Parts 04 - Dispenser Parts 05 - Tub And Basket Parts 06 - Pump And Motor Parts, Optional Parts (not Included)

05 - Tub And Basket Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	WPW10283361	Nut, Pulley	$49.90  In-Stock Retail: $48.59
2	WP8182650	Pulley   (Replaces: 8182650)	$118.20  In-Stock Retail: $115.29
3	WPW10388414	Belt (Replaces: 8181670 8182633)	$56.00  In-Stock Retail: $54.58

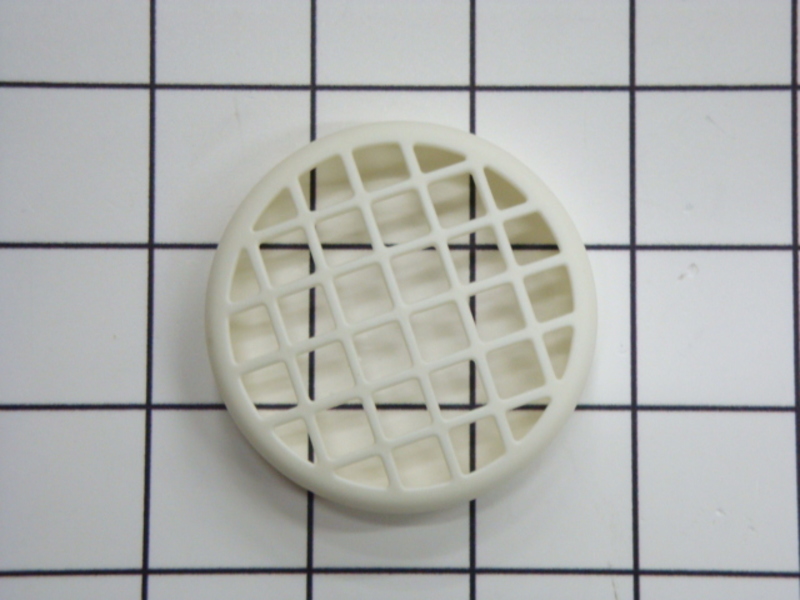

4	8181745	Grid, Ventilation	$11.10 Special Order
5	8181744	Pipe, Ventilation	$57.60 Special Order
6	8540010	Clamp	$7.20 Special Order
7	WP8181743	Hose, Exhaust (Replaces: 8181743)	$68.30  In-Stock Retail: $66.57
8	W10772617	Tub, Rear	$353.90 Special Order
9	W10008870	Counterweight, Rear (Replaces: 8181913)	Call for Availability
10	WP8181673	Gasket, Tub (Replaces: 8181673)	$52.70  In-Stock Retail: $51.36
11	WPW10250573	Basket   (Replaces: W10250573 8182232)	$415.40 Special Order
12	WP8182233	Baffle, Tub (Replaces: 8182233)	$66.70  In-Stock Retail: $65.02
13	WPW10250553	O-ring	$4.80 Special Order
14	WP8181731	Airtrap (Replaces: 8181731)	Call for Availability
15	WPW10008880	Counterweight, Front	$114.70 Special Order
16	W10135004	Spring, Suspension (Replaces: 8182814)	$52.70  In-Stock Retail: $51.36
17	8181647	Bolt	$4.40 Special Order
18	WP3367052	Clamp	$4.80  In-Stock Retail: $4.59

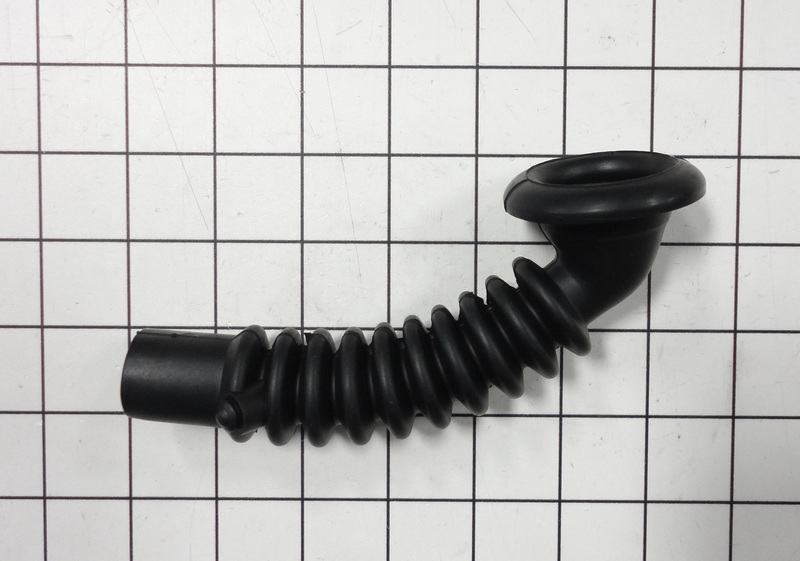

19	WP8181794	Hose, Tub To Dispenser (Replaces: 8181794)	$25.10  In-Stock Retail: $24.42
20	WP8540092	Clamp (Replaces: 8181667)	$4.80  In-Stock Retail: $4.59
21	W10772612	Tub, Front	$271.80 Special Order
22	WP8182512	Nut, Push-in   (Replaces: 8182512)	$4.80  In-Stock Retail: $4.59
23	WP8182703	Shock Absorber (Replaces: 8182703)	$43.90  In-Stock Retail: $42.74
24	WPW10467289	Ntc (Replaces: 8181705)	$32.80  In-Stock Retail: $31.97
25	8181829	Seal, Rubber	Call for Availability
	WPY706189	Screw, Baffle	$4.80  In-Stock Retail: $4.59
