Whirlpool RF385PCWW0 Parts List

Popular Searches: (Click to search)    240v  2oz  6``  8``  almond  black  illus  includes  infinite  leg  leveling  paint  pressurized  receptacle  spray  surface  switch  touch  unit  white


Select a Diagram

02 - Cooktop

03 - Door And Drawer

04 - Oven , Lit/optional

05 - Control Panel

06 - Oven (continued)

07 - Wiring Harness

Select Diagram ... 02 - Cooktop 03 - Door And Drawer 04 - Oven , Lit/optional 05 - Control Panel 06 - Oven (continued) 07 - Wiring Harness

05 - Control Panel   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	313189	End Trim R.h.	$29.70 Special Order
	WP681414	Screw, 10-16 X 1/2 (4)	$4.80 Special Order
	486210	Screw 8-18 X 5/8 (4)	Call for Availability
	313188	End Trim L.h.	$33.00 Special Order
2	488620	Screw (4)	$4.00 Special Order
	313231	End Cap L.h.	Call for Availability
	313230	End Cap R.h.	Call for Availability
3	3148817	Bracket, Timer (2)	Call for Availability
	WP965173	Screw (2)	$6.40 Special Order
5	313101	Lens, Light (5)	Call for Availability
6	313958	Button, Set (4)	$22.10 Special Order
10	3149808	Timer	$247.60 Special Order
12	3149880	Glass, Timer	Call for Availability
16	WP681414	Screw 10-32 X 1/2	$4.80 Special Order
	3148845	Control, Panel	Call for Availability
17	WP486579	Switch, Infinite (screw, 8-32 X 1/4 (8))	$4.60 Special Order
	WP3148952	Switch, Infinite (6`` Unit (2))   (Replaces: 3148952)	$55.00  In-Stock Retail: $54.94
	WP3149400	Switch, Infinite (8`` Unit (2)) (Replaces: 3148954)	$56.20  In-Stock Retail: $56.20
18	312288	Switch, Selector	Call for Availability
	WP486579	Screw (2)	$4.60 Special Order
	3147832	Nut (2)	Call for Availability
19	WP313808	Screw, 6-32 X 1/4 (2)	$4.80 Special Order

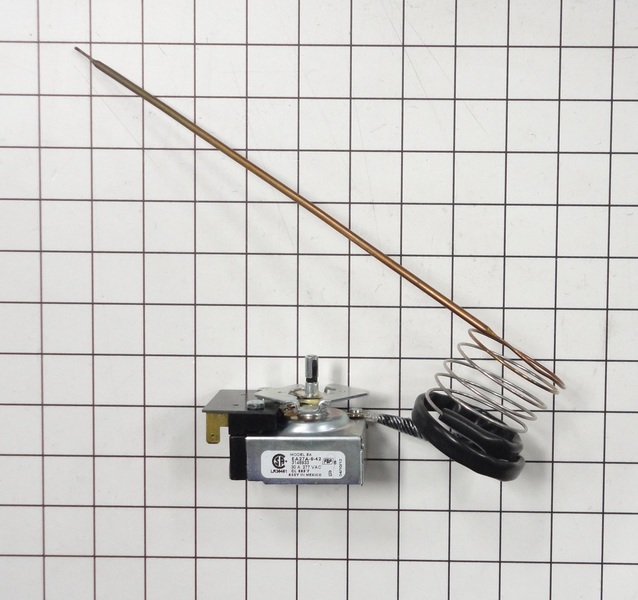

	3148933	Thermostat, Oven	$155.70 Special Order
21	3148719	Light, Indicator (locked)	Call for Availability
	313102	Light, Indicator (infinite Switch (2))	$46.40 Special Order
	314031	Light, Indicator (oven Heat)	$43.90 Special Order
23	WP4314961	Switch, Rocker	$50.60 Special Order
24	WP3149983	Knob, (4) Infinite Switch	$15.20 Special Order
	WP681414	Screw, 10-16 X 1/2 (2)	$4.80 Special Order
25	3149988	Knob, Thermostat	$4.50 Special Order
26	WP688805	Spring Clip   (Replaces: 688805)	$4.80  In-Stock Retail: $4.59
27	WP681414	Screw, 10-16 X 1/2 (12)	$4.80 Special Order
	313195	Rear Cover Control Panel	$42.70 Special Order
28	313523	Knob, Bit Generator	$10.90 Special Order
29	313608	Shield, Control Panel (2)	Call for Availability
	WP965173	Screw (4)	$6.40 Special Order
30	3149986	Knob, Selector	$6.10 Special Order
