03 - Control Panel   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	313189	End Trim R.h.	$29.70 Special Order
	WP681414	Screw (4)	$4.80 Special Order
	313188	End Trim L.h.	$33.00 Special Order
2	313231	End Cap L.h.	Call for Availability
	488620	Screw, 8bt X 1/4 (4)	$4.00 Special Order
	313230	End Cap R.h.	Call for Availability

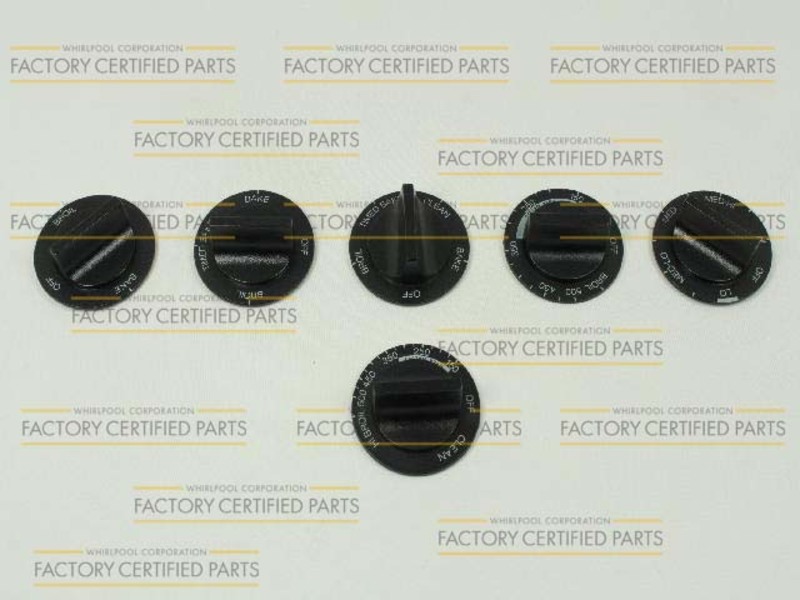

4	814362	Knob, Control (selector)	$57.10 Special Order
5	WP688805	Clip, Spring   (Replaces: 688805)	$4.80  In-Stock Retail: $4.59
10	661458	Timer, Clock Includes No.11   (Replaces: 3183063 3148053)	Call for Availability
11	309822	Motor, Timer	Call for Availability
12	313513	Glass, Timer	Call for Availability
15	WP681414	Screw 10-32 X 1/2	$4.80 Special Order
	486210	Screw 8-18 X 5/8 (4)	Call for Availability
	313239	Panel, Control	Call for Availability
17	WP486579	Switch, Infinite (screw, 8-32 X 1/4 (8))	$4.60 Special Order
	WP3148952	Switch, Infinite (6`` Unit)   (Replaces: 3148952)	$55.00  In-Stock Retail: $54.94
	WP3148953	Switch, Infinite (8`` Unit) (Replaces: 3148953)	$53.60  In-Stock Retail: $52.29
18	3149886	Switch, Selector	$65.80 Special Order
	WP486579	Screw, 8-32 X 1/4 (2)	$4.60 Special Order
19	WP3169302	Thermostat, Oven (alt.)	$223.00 Special Order
	WP3169302	Thermostat, Oven (Replaces: 661150)	$223.00 Special Order
	WP3169302	Thermostat, Oven (alt.)	$223.00 Special Order
20	313102	Light, Indicator (surface Unit (2))	$46.40 Special Order
	314031	Light, Indicator (oven On)	$43.90 Special Order
23	WP4314961	Switch, Oven Light	$50.60 Special Order
24	814362	Knob, Control (4) (surface Unit)	$57.10 Special Order
25	814362	Knob, Control (thermostat)	$57.10 Special Order
	310410	Screw (2)	$4.40 Special Order
26	855930	Tube Clip	$8.60 Special Order
27	WP681414	Screw, 10-16 X 1/2 (8)	$4.80 Special Order
	313195	Rear Cover Control Panel	$42.70 Special Order
28	313101	Lens, Amber (3)	Call for Availability
29	WP3169181	Knob, Timer (3)	$11.60  In-Stock Retail: $11.28
	313311	Spring, Knob	Call for Availability
30	313608	Shield, Glass (2)	Call for Availability
	WP965173	Screw, 8a X 3/8 (2)	$6.40 Special Order
	WP313808	Screw, 6-32 X 1/4 (2)	$4.80 Special Order
