Whirlpool RF3165XPW0 Parts List

Popular Searches: (Click to search)    240v  2oz  6``  8``  almond  bake  black  broil  leg  leveling  paint  pressurized  receptacle  spray  surface  therm  thermostat  touch  unit  white


Select a Diagram

02 - Cooktop

03 - Control Panel

04 - Door And Drawer

05 - Oven , Literature And Optional

06 - Section

07 - Wiring Harness

Select Diagram ... 02 - Cooktop 03 - Control Panel 04 - Door And Drawer 05 - Oven , Literature And Optional 06 - Section 07 - Wiring Harness

04 - Door And Drawer   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	329687	Liner, Door	Call for Availability
	311056	Screw, (4)	$4.40 Special Order
	307748	Screw, 10a X 1/2 (3)	$4.40 Special Order
	WP488627	Screw, 8a X 1/2 (2)	$4.60  In-Stock Retail: $4.47
2	258711	Seal, Window (small)	Call for Availability
3	258988	Glass, Inner	Call for Availability
4	309137	Spacer, Door (2)	Call for Availability
	307748	Screw, 10a X 1/2 (2)	$4.40 Special Order
5	307924	Baffle, Insulation	Call for Availability
6	258990	Spacer, Baffle (4)	Call for Availability
	307748	Screw, 10a X 1/2 (4)	$4.40 Special Order
9	312783	Bumper, Rubber (4)	Call for Availability
10	307888	Panel, Oven Door (white)	Call for Availability
	307896	Panel, Oven Door (almond)	Call for Availability
	307894	Panel, Oven Door (harvest Gold)	Call for Availability
	313176	Panel, Oven Door (platinum)	Call for Availability
	313175	Panel, Oven Door (toast)	Call for Availability
11	313455	Handle, Oven Door	$103.10 Special Order
12	WP308499	Palnut (2)	$4.60 Special Order
13	309173	Frame, Window (30`` Small)	$28.70 Special Order
14	307792	Retainer, Glass	$77.50 Special Order
	313045	Screw, 7-19 X 3/8 (8)	Call for Availability

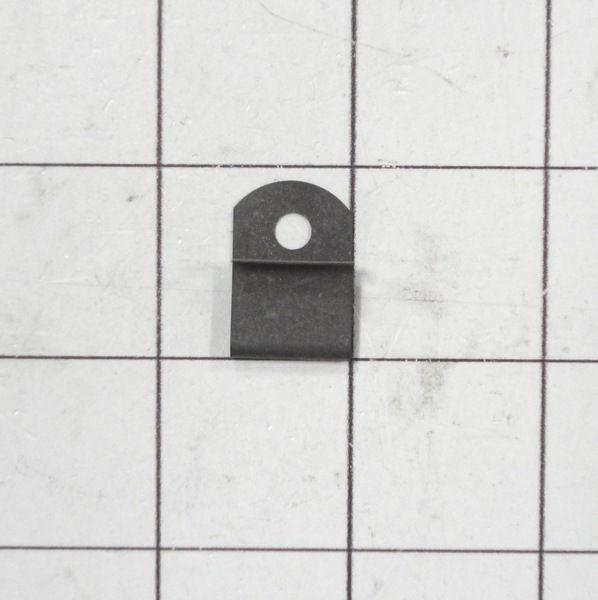

15	307731	Clip, Frame (3)	$4.40 Special Order
16	309133	Screw, 8-a X 5/8 (2)	Call for Availability
	307732	Glass, Outer	$51.20 Special Order
18	327887	Drawer, Utility	$79.00 Special Order
19	3367669	Protector, Drawer Side (2)	$25.30 Special Order
20	307980	Glide, Rear (2)	$4.40 Special Order
	307748	Screw, 10a X 1/2 (2)	$4.40 Special Order
21	307938	Panel Drawer (harvest Gold)	Call for Availability
	WP488787	Panel Drawer (screw, 8-18 X 1/2 (3))	$6.70  In-Stock Retail: $6.50
	309923	Panel Drawer (black)	Call for Availability
	313172	Panel, Drawer (platinum)	Call for Availability
	313171	Panel, Drawer (toast)	Call for Availability
	307935	Panel Drawer (white)	Call for Availability
	307939	Panel, Drawer (almond)	Call for Availability
22	3169105	Handle, Drawer   (Replaces: 313337)	$85.50 Special Order
	WP488627	Screw 8-18 X 1/2 (2)	$4.60  In-Stock Retail: $4.47
24	357645	Rack, Literature	Call for Availability
