02 - Control Panel   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	8272507	Endcap (left Hand-biscuit)	$31.60 Special Order
	3186188	Endcap, Left Hand (black)	$31.60 Special Order
	3186190	Endcap (left Hand White)	Call for Availability
	8272508	Endcap (right Hand-biscuit)	$37.60 Special Order
	3186189	Endcap, Right Hand (black)	$37.60 Special Order
	3186191	Endcap (right Hand White)	Call for Availability
2	3186198	Support, Endcap (left Hand)	$13.80 Special Order
	3186199	Support, Endcap (right Hand)	$13.80 Special Order
3	8273509	Panel, Backguard (biscuit)	Call for Availability
	3186160	Panel, Backguard (black)	Call for Availability
	3186161	Panel, Backguard (white)	Call for Availability
4	WP3149404	Switch, Infinite (use W/ 6`` Element) (Replaces: 3148951)	$56.70  In-Stock Retail: $55.31
	WP3148953	Switch, Infinite (use W/ 8`` Element) (Replaces: 3148953)	$53.60  In-Stock Retail: $52.29
5	8273303	Indicator, Surface	$27.70 Special Order
6	WP3188987	Switch, Selector (Replaces: 3188987)	$101.10  In-Stock Retail: $98.54
7	WP3196803	Thermostat   (Replaces: 3196803)	$140.10  In-Stock Retail: $136.66
8	314031	Indicator, Oven	$43.90 Special Order
9	WP8273564	Clip	$7.50 Special Order
10	3196200	Clip, Spring (2)	$7.30 Special Order
11	WP3196231	Knob, Infinite (5) (biscuit)	$13.80 Special Order
	WP3196231	Knob, Infinite (5) (black) (Replaces: 3196231)	$13.80 Special Order
	WP3196232	Knob, Infinite (5) (white)	$13.40  In-Stock Retail: $13.07
13	WP3196068	Lens, Ind. (2) (Replaces: 3196068)	$3.50  In-Stock Retail: $3.34

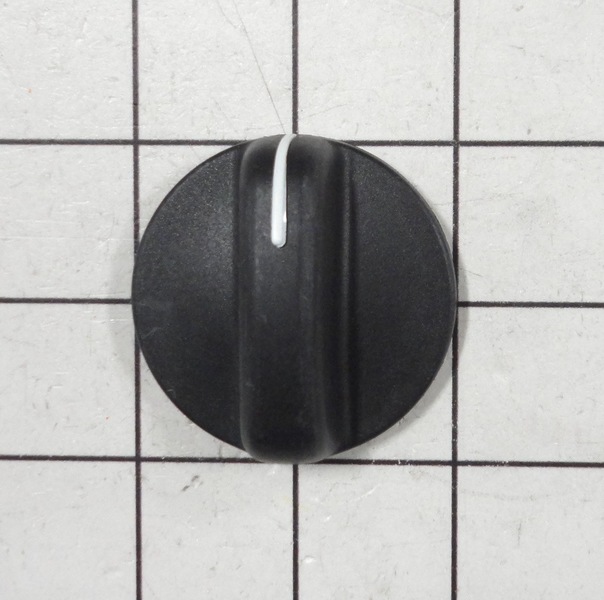

14	3196213	Knob, Thermostat (black)	$12.70 Special Order
	8273797	Knob, Thermostat (biscuit)	$28.30 Special Order
	3196214	Knob, Thermostat (white)	$27.70 Special Order
15	8053912	Shield, Heat	$35.90 Special Order
16	WP4449746	Screw (Replaces: 4449746)	$4.50 Special Order
17	WP8272473	Cover, Upper Rear	$118.50 Special Order
18	WPW10326122	Box, Cover	$77.90 Special Order
19	W11233072	Screw	$8.70  In-Stock Retail: $8.47
20	WP3196170	Screw	$4.60 Special Order
21	WP3400882	Screw   (Replaces: 3400882)	$4.80  In-Stock Retail: $4.59
