Whirlpool RF265LXTQ1 Parts List

Popular Searches: (Click to search)    bake  black  element  hand  infinite  left  lower  oven  paint  pressurized  rear  right  screw  sensor  side  spray  switch  touch  trim  white


Select a Diagram

01 - Cooktop Parts

02 - Control Panel Parts

03 - Chassis Parts

04 - Drawer Parts

05 - Door Parts, Optional Parts

Select Diagram ... 01 - Cooktop Parts 02 - Control Panel Parts 03 - Chassis Parts 04 - Drawer Parts 05 - Door Parts, Optional Parts

01 - Cooktop Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	9763001	Owners Manual	Call for Availability
	W10116308	Tech Sheet	Call for Availability
	9762996	Installation Instructions	Call for Availability
	9757143	Template,anti-tip (english/french)	Call for Availability
	9757142	Anti-tip Template (english/spanish)	Call for Availability
	9762761	Brochure, Tips Safe Cooking	Call for Availability

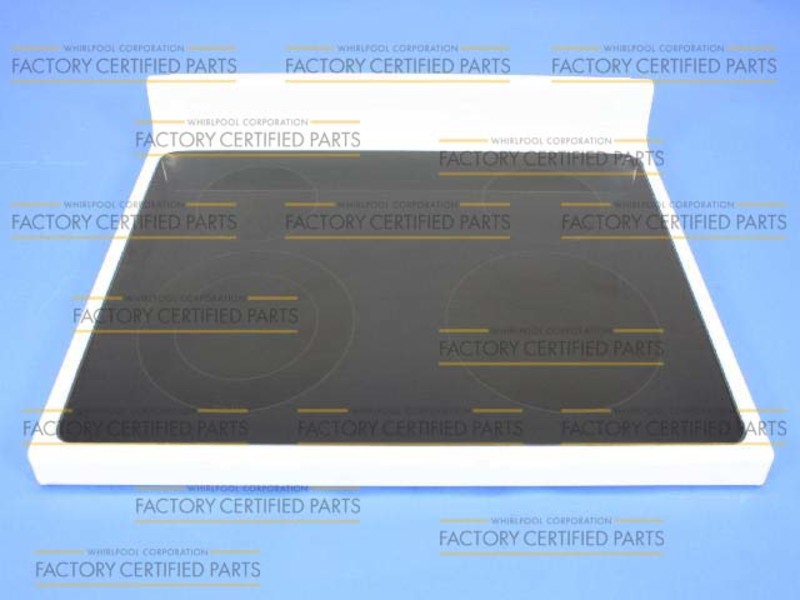

2	W10177369	Cooktop (white)	$428.00 Special Order

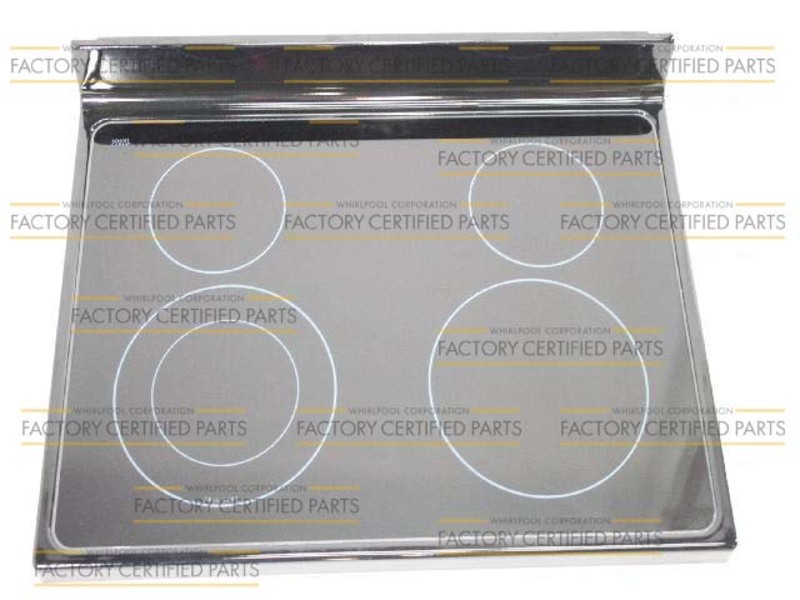

	W10177367	Cooktop (black)	$428.00 Special Order
	8188366	Cooktop (biscuit)	$445.10 Special Order
3	WP8523047	Element, Surface (2400/1000 W - Lf)	$217.80 Special Order
	W11171119	Element, Surface (1200 W - Lr & Rr)   (Replaces: WP8273994 8273994)	$182.10  In-Stock Retail: $177.65
	W11047722	Element, Surface (2500 W - Rf)   (Replaces: 8273992)	$125.70  In-Stock Retail: $122.63
4	8524132	Shield, Wiring	$36.60 Special Order
5	8272791	Bracket, Element ((2))	$28.30 Special Order
6	WP3196557	Screw (Replaces: 3196169)	$4.80  In-Stock Retail: $4.59
7	3149191	Spring, Locator	$7.20 Special Order
8	WP3196170	Screw	$4.80 Special Order
