Whirlpool RF198LXMB0 Parts List

Popular Searches: (Click to search)    biscuit  black  front  hand  infinite  left  lower  oven  paint  pressurized  rear  right  screw  sensor  side  spray  switch  touch  trim  white


Select a Diagram

01 - Cooktop Parts

02 - Control Panel Parts

03 - Chassis Parts

04 - Door Parts

05 - Drawer & Broiler Parts, Optional Parts

Select Diagram ... 01 - Cooktop Parts 02 - Control Panel Parts 03 - Chassis Parts 04 - Door Parts 05 - Drawer & Broiler Parts, Optional Parts

01 - Cooktop Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	LIT9756206	Literature Parts (tech Sheet)	Call for Availability
	LIT8523048	Literature Parts (installation Instructions (templet))	Call for Availability
	LIT9756384	Guide, Use & Care	Call for Availability
	LIT3191638	Safer Cooking Tips	Call for Availability
	LIT9757983	Literature Parts (instructions, Installation)	Call for Availability
2	3149191	Spring, Locator	$7.20 Special Order
3	WP3196170	Screw	$4.80 Special Order

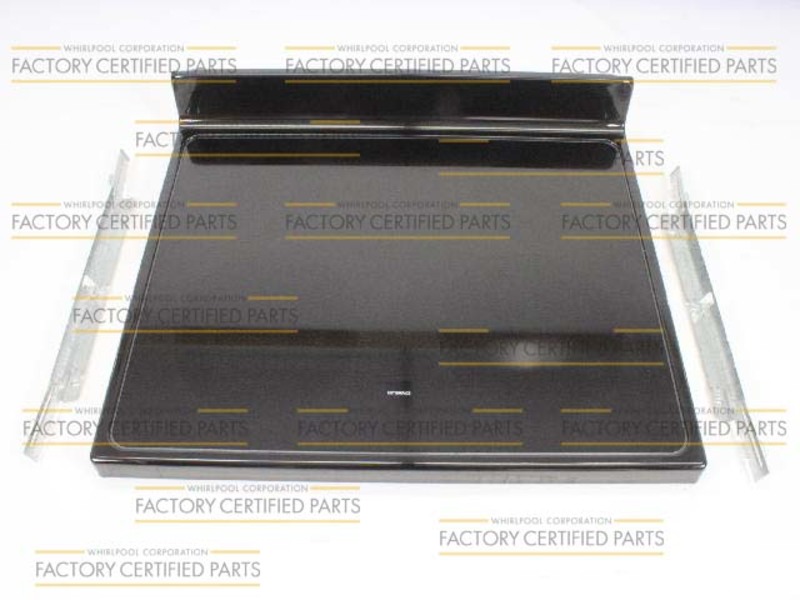

4	8187877	Cooktop (black/black Glass)	$402.00 Special Order
	9755860	Cooktop (biscuit)	$373.20 Special Order
	9755861	Cooktop (white/white Glass)	$373.20 Special Order
5	8523739	Light, Indicator (hot Surface)	$110.60 Special Order
6	8523741	Bracket, Ind Light	$4.40 Special Order
7	W10823692	Element, Surface (2400/1200 W - Lf)	$208.20  In-Stock Retail: $203.10
	W10823696	Element, Surface (2500 W - Rf)	$208.20  In-Stock Retail: $203.10
	W10823711	Element, Surface (1200 W - Rr) (Replaces: WP8523698 8523698)	$208.20  In-Stock Retail: $203.10
9	8272791	Bracket, Element	$28.30 Special Order
10	WP3196557	Screw (Replaces: 3196169)	$4.80  In-Stock Retail: $4.59
