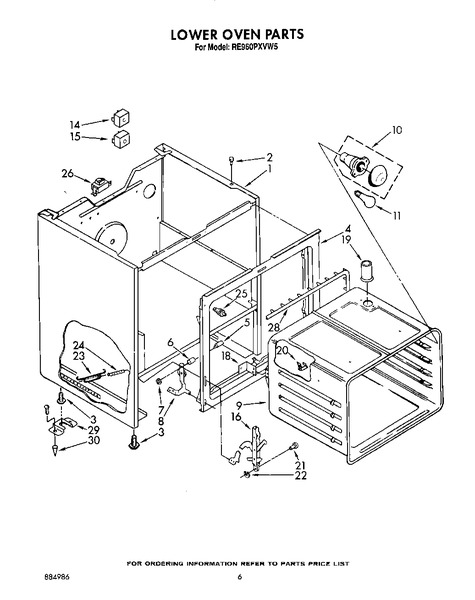

04 - Lower Oven   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	330086	Main Chassis (white)	$74.70 Special Order
	WP681414	Main Chassis (screw 10-16 X 1/2 (3))	$4.80 Special Order
	330090	Main Chassis (almond)	Call for Availability
2	238614	Bumper, Cooktop (2)	$41.00 Special Order
3	WPW10058460	Leg, Leveling (4)	$4.80  In-Stock Retail: $4.59
4	3172194	Frame, Front	Call for Availability
	311056	Screw (sides)	$4.40 Special Order
	486650	Screw (top)	$4.40 Special Order
5	307985	Pin, Hinge (2)	Call for Availability
6	309111	Snubber, Door (2)	$4.40 Special Order
7	308306	Pushnut (2)	Call for Availability
8	WP681414	Screw, 10-16 X 1/2 (4)	$4.80 Special Order
	3176711	Hinge (l.h.)	$29.90 Special Order
	3176710	Hinge (r.h.)	$29.60 Special Order
9	3176611	Oven (30`` Pyro)	Call for Availability
	311056	Screw (3)	$4.40 Special Order
10	W11594027	Light Assembly   (Replaces: WPW10454648 W11281687 3150505)	$47.50  In-Stock Retail: $46.31
11	8009	Bulb, Oven Light	$20.00  In-Stock Retail: $19.99
14	314215	Screw, No.6	Call for Availability
	314209	Switch, Broil	$56.70 Special Order
15	314215	Screw, No.6	Call for Availability
	314210	Switch, Bake	$47.00 Special Order
16	3176709	Channel, Arm (2)	$33.20 Special Order
18	311220	Bracket, Oven (mounting)	Call for Availability
	WP681414	Screw, 10-16 X 1/2 (4)	$4.80 Special Order
19	307748	Screw, 10a X 1/2 (2)	$4.40 Special Order
	9755804	Vent, Oven	$76.60 Special Order
20	98005642	Clip, Therm Bulb (2)	$52.00  In-Stock Retail: $50.66
21	WP307986	Hinge Pin (2)	$7.70 Special Order
22	WP98392	Ring, Retainer (2)	$0.50  In-Stock Retail: $0.47
23	WP308126	Spring, Oven Door (2)	$24.80 Special Order
24	WP308125	Anchor, Spring (2)	$7.80 Special Order
25	310345	Switch, Door	$66.20 Special Order
26	346772	(alt.)	Call for Availability
	660001	Ballast	$34.20 Special Order
	685591	(alt.)	Call for Availability
	WP681414	Screw, 10-16 X 1/2 (2)	$4.80 Special Order
28	3185197	Seal, Pyro   (Replaces: 3148284)	$78.90 Special Order
29	8273888A	Bracket, Anchor	$19.30  In-Stock Retail: $18.29
	681615	Screw	$8.70 Special Order
30	3148605	Anchor, Plastic	Call for Availability
